Get Acquainted w
ith the Instrument

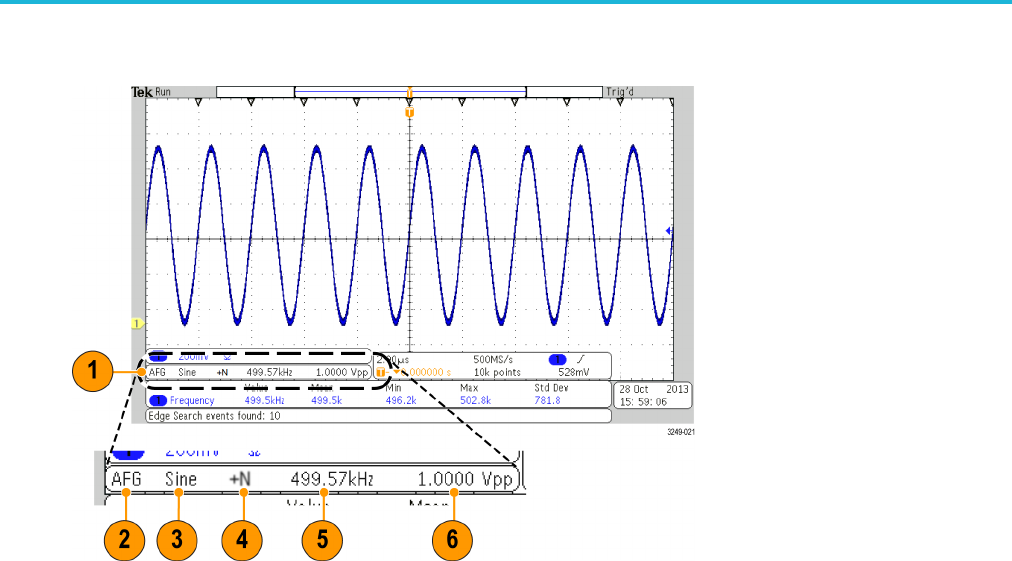

Identifying Items in the Arbitrary Function Generator Display
1. If visible, the output is on
2. AFG label
3. Waveform type, e.g. “Sine”
4. Additive Noise icon
5. Frequency
6. Amplitude
(See page 185, Use the Arbitrary Function Generator.)
