Get Acquainted w
ith the Instrument

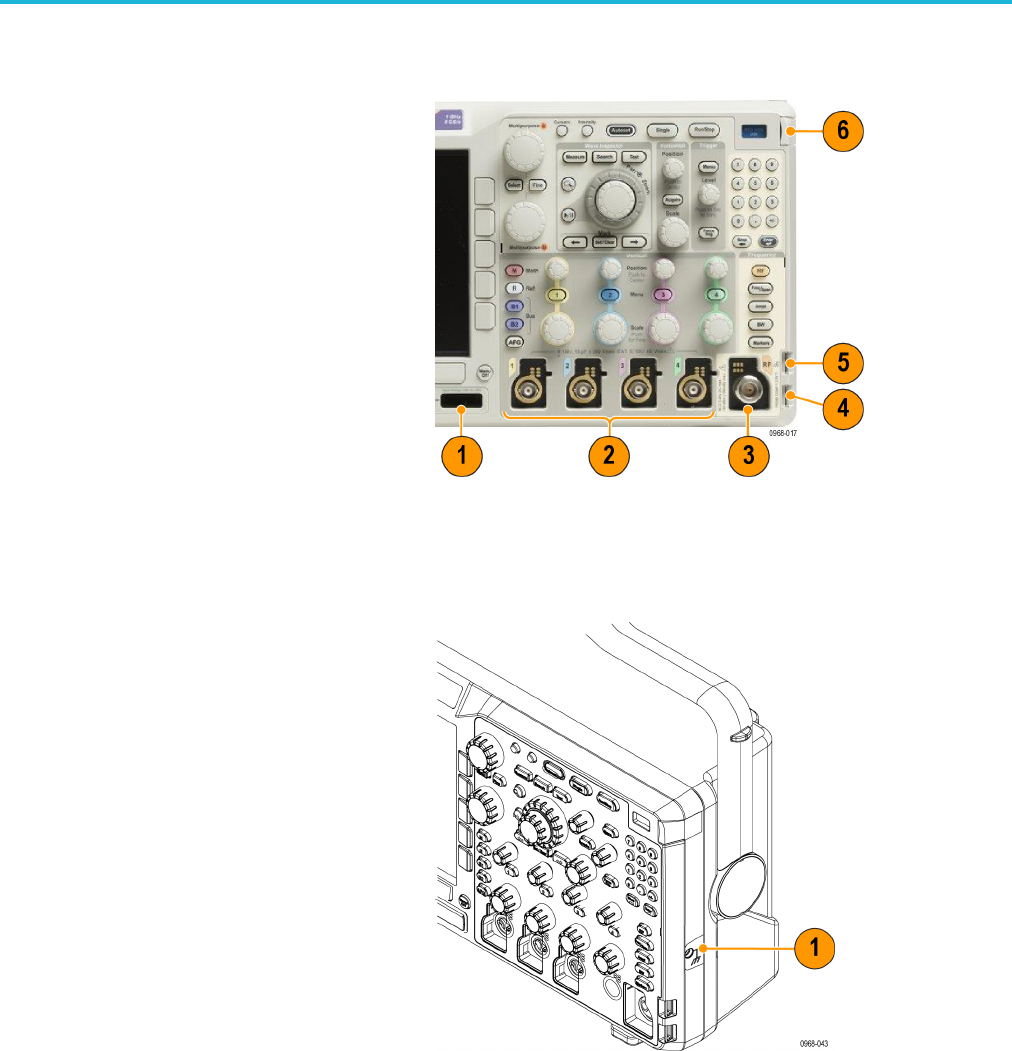

Front Panel Connectors
1. Logic Probe Co
nnector
2. Channel 1, 2, 3
, 4. C hannel inputs w ith
TekVPI Versatile Probe Interface.
3. RF input connector.
4. PROBE COMP. Square wave signal
source to compensate or calibrate
probes. Out
put voltage: 0 – 2.5 V,
amplitude ± 1% behind 1 k ±2%.
Frequency: 1 kHz.
5. Ground.
6. A pplication Module Slots.
Side-Panel Connector
1. G round strap connector. This is a
recepta
cle for a grounding strap.
52 MDO3000 Series Oscilloscopes User Manual
