User Manual

Adapter DEA-0001 & DNA-6000 for DIOPTRX™

DEA-0001 to 24mm Panoptic (and 19mm Panoptic, 20mm Nagler Type-5) and DNA-6000 to Nagler Type-6

These adapters convert eyepieces with small eyeguards to larger eyeguards, so DIOPTRX can be installed. Note that these

eyepieces have shorter eye relief than others recommended for DIOPTRX, so to minimize any vignetting, it's best to use

these for deep-sky applications where your eye pupil is large.

Installation

1. Remove small rubber eyeguard from eyepiece

2. Place adapter over eyepiece, making sure adapter lip is toward eye

3. Tighten the 3 set screws using the supplied Allen wrench

4. Slip on new supplied larger rubber eyeguard for normal use, or attach

DIOPTRX as desired.

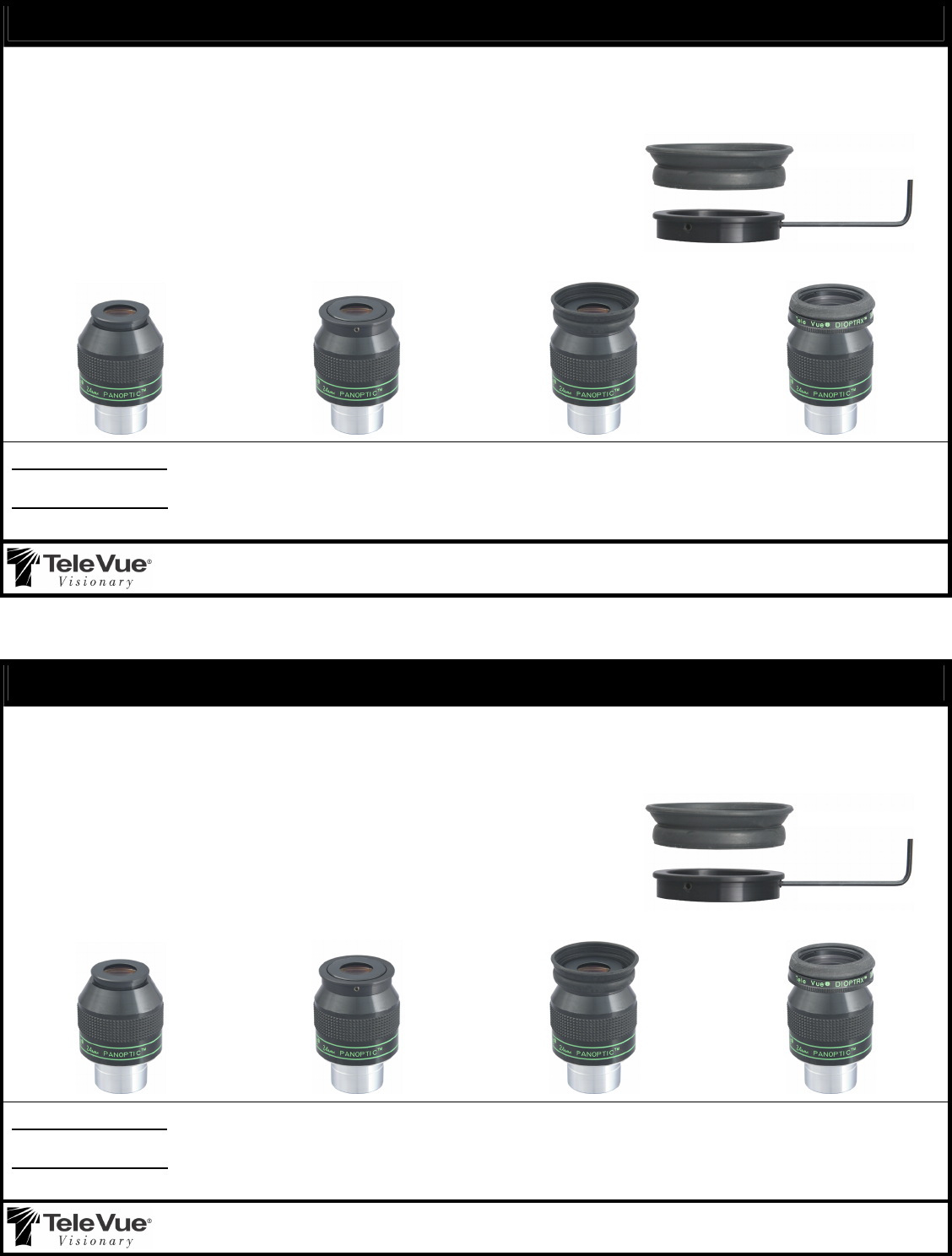

Eyeguard removed Adapter over eyepiece Eyeguard over adapter DIOPTRX over eyepiece

Notes on DEA-0001 When used for bino-viewers, you may encounter "nose relief" limitations because DIOPTRX reduces

the normal eyepiece eye relief.

Notes on DNA-6000 When used for bino-viewers, remove DIOPTRX, because limited "nose-relief" and eye-relief will pre-

vent seeing the full 82° field. The new larger eyeguards are still fine for use with binocular viewers.

For information call 9 a.m. — 5 p.m. ET Monday through Friday: 845 469 4551 or visit www.TeleVue.co

Rev: 10/9/2008 DEA-0001 & DNA-6000
