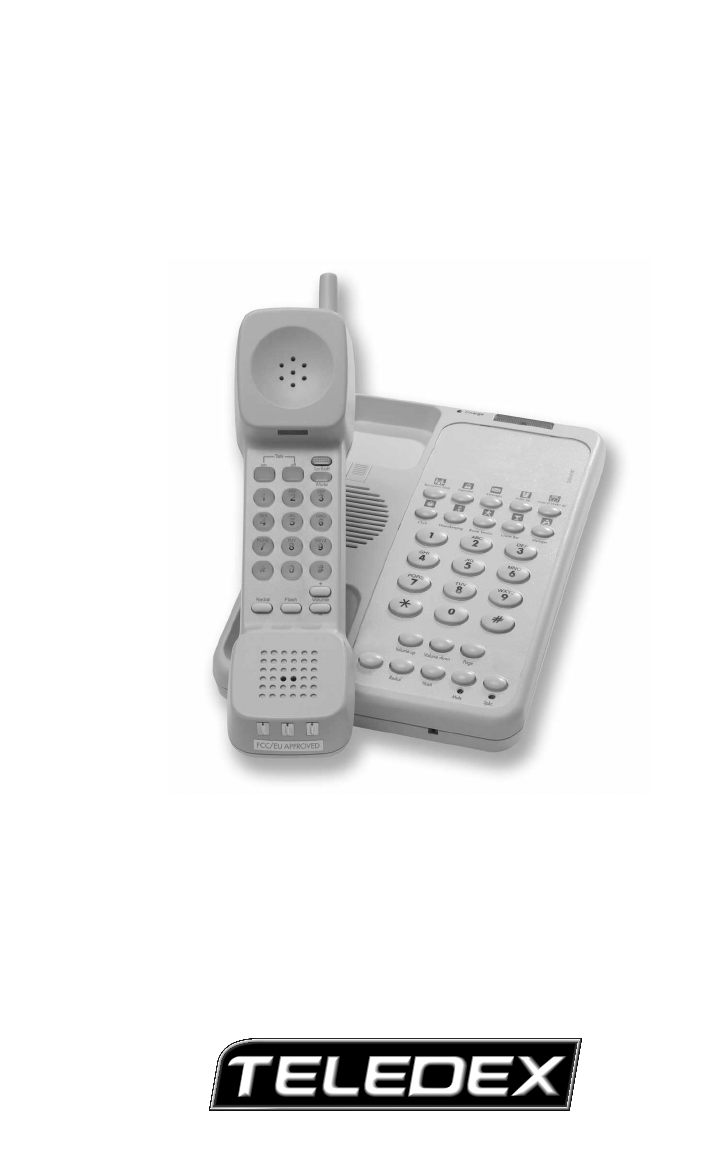

CL1100 SERIES USERS GUIDE 1.88 - 1.
CL1100 SERIES TELEPHONE DIAGRAM Charge LED Message Waiting Lamp Flash Programming Keys 100 ms 300 ms 600 ms Lo Batt LED On/Off Keys Mute Redial Flash Pause Key Store Key Programmimg Port Auto Dial Keys M1 - M5 (model CL1106) M1 - M10 (model CL1111) Volume Keys DTMF Keys Volume Keys Paging Key Speakerphone Auto Dial Key M6 (model CL1106) M11(model CL1111) Redial Flash Mute EC DECLARATION OF CONFORMITY This product has been certified by an independent, accredited test house that it complies with
PREPARING TO USE THE CL1100 SERIES TELEPHONE HANDSET 1) Prepare to install the battery into the handset by first removing the rubber screw cover and the screw beneath. Then firmly press down on the top of the battery compartment cover and slide it towards the bottom of the handset until it is removed. 2) Insert the battery connector into the connector inside the handset. 3) Replace the battery compartment cover, retaining screw and rubber screw cover.
CHARGING THE BATTERY The rechargeable Nickel Metal Hydride battery must be fully char ged before using the phone for the first time. It is recommended that the battery pack be char ged overnight (or for at least 12 hours) without interruption before the first use. To charge the battery, place the handset, keypad down, in the base unit. Ensure that the “CHARGE” LED on the base illuminates.
PROGRAMMING THE HOTEL SERVICES DIRECT ACCESS KEYS The CL1100 series has either six (model CL1106) or eleven (model CL1111) programmable hotel services direct access (or auto dial) keys (M1-M6/M1 1.) These keys can be programmed to automatically dial telephone numbers or activate telephone system features. These keys can only be programmed from the base unit. To program the keys, follow these steps: 1) 2) 3) 4) 5) 6) Connect the CL1100 series to a working telephone line. Press the “SPEAKERPHONE” key.
TO MAKE A CALL USING THE HANDSET, WHILE DIALING WITH THE BASE KEYPAD 1) 2) 3) Pick up the handset and press the “ON” key . The “ON” LED will illuminate. Listen for dial tone, then dial the desired number using base keypad. To end the call, place the handset on the base cradle or press the “OFF” key . Note: Calls can only be made or received through either the handset or base. If the handset is already in use, pressing the “SPEAKERPHONE” key will not activate the speakerphone.
TO MUTE THE HANDSET The “MUTE” key is used to deactivate the handset microphone, while allowing the user to hear the other end of the conversation through the handset. 1) Press the “MUTE” key to activate. The “MUTE” LED will illuminate. 2) To turn off the mute feature, press “MUTE” again. The “MUTE” LED will turn off. TO MUTE THE SPEAKERPHONE 1) 2) Press the “MUTE” key on base. The “MUTE” LED will illuminate, to indicate that mute is active. Press the “MUTE” key again to disable mute.
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1) 2) 3) Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug the product from the wall outlet before cleaning. Do not use liquid cleaner or aerosol cleaners. Use a damp cloth for cleaning.
IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: 1. READ AND UNDERSTAND ALL INSTRUCTIONS. 2. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE PRODUCT. 3. UNPLUG THE PRODUCT FROM THE WALL OUTLET BEFORE CLEANING. DO NOT USE LIQUID CLEANER OR AEROSOL CLEANERS. USE A DAMP CLOTH FOR CLEANING. 4.
AUTO DIAL KEYS The CL1200 series has either five (5) or ten (10) programmable guest service (auto dial) keys, depending on the model you own. These keys can be programmed to automatically dial telephone numbers, or to activate telephone system features. To program the auto dial keys (programming can only be done from base unit): 1. With the faceplate removed, press the recessed STORE key. 2. Enter the desired telephone number (up to 15 digits in length) to be stored. 3. Press the STORE key again. 4.
CL1900 SERIES USERS GUIDE 900 MHz Single-Line Cordless Guestroom Telephone
CL1900 SERIES TELEPHONE DIAGRAM Charge LED Message Waiting Lamp Store Key Flash Key Hold Button On/Off Key Programming Port Low Battery Indicator Redial/Flash Channel Auto Dial Keys M1 - M5 (model CL1905) M1 - M10 (model CL1910) Volume Keys DTMF Keys Volume Keys Mute Speakerphone Hold Button Page Redial INCLUDED IN YOUR PACKAGE Cordless handset NiMH battery Rubber battery screw cover Phillips screw Base unit AC adapter 10 foot, 4-wire RJ-11 line cord 15 foot, 8-wire RJ-45 cable Clear plastic
CLEANING THE BATTERY CONTACTS RECEIVING A CALL To maintain a good charge, it is important to clean all charging contacts on the handset and base unit. Use a pencil eraser or other contact cleaner. DO NOT use any liquids or solvents. An audible ring and flickering red LED indicate an incoming call.
TO CHANGE TELEPHONES AFTER PLACING A CALL ON HOLD IMPORTANT SAFETY INSTRUCTIONS 1. 2. When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Place the call on hold as above. Pick up the call at another telephone on the same line. The telephone will detect the pickup and remove the hold condition at the original telephone. TO MUTE THE SPEAKERPHONE 1. 2. Press the “MUTE” key on the base.
users guide CL2100 SERIES 1.88 to 1.
CL2100 SERIES TELEPHONE DIAGRAM PREPARING TO USE THE CL2100 SERIES TELEPHONE BASE PREPARATION PROCEDURE 1) Charge LED Message Waiting Lamp Flash Programming Keys 100 ms 300 ms 600 ms Hold Key Line On/Off Keys Store Key Programmimg Port Auto Dial Keys M1 - M5 (model CL2105) M1 - M10 (model CL2110) Conf.
(or for at least 12 hours) without interruption before the first use. To charge the battery, place the handset, keypad down, in the base unit. Ensure that the “CHARGE” LED on the base illuminates. If the LED does not light, check the following: 1) 2) Ensure that the AC adapter is plugged into a working, unswitched AC outlet, and that the RJ-45 cord is plugged into both the telephone and the AC adapter in the phone position.
3) To end the call, press the “SPEAKERPHONE” key again. The “SPEAKERPHONE” LED will turn off. TO MAKE A CALL USING THE HANDSET, WHILE DIALING WITH THE BASE KEYPAD 1) 2) 3) Pick up the handset and press the desired “LINE” key. The LED will illuminate. Listen for dial tone, then dial the desired number using base keypad. To end the call, place the handset on the base cradle or press the “LINE” on/off key for the active line.
REPLACEMENT PARTS Additional battery packs and replacement handsets for the CL2100 series are available from Teledex. When ordering, please specify the telephone model and quantity desired. BATTERY DISPOSAL INFORMATION When disposing used or expired battery packs, please observe local industrial and consumer waste disposal practices, rules and regulations. Under no circumstances, dispose the battery pack(s) in a flammable and/or combustible trash receptacle.
IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS, INCLUDING THE FOLLOWING: 1. READ AND UNDERSTAND ALL INSTRUCTIONS. 2. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE PRODUCT. 3. UNPLUG THE PRODUCT FROM THE WALL OUTLET BEFORE CLEANING. DO NOT USE LIQUID CLEANER OR AEROSOL CLEANERS. USE A DAMP CLOTH FOR CLEANING. 4.
AUTO DIAL KEYS The CL2200 series has either five (5) or ten (10) programmable guest service (auto dial) keys, depending on the model you own. These keys can be programmed to automatically dial telephone numbers, or to activate telephone system features. To program the auto dial keys (programming can only be done from base unit): 1. With the faceplate removed, press the recessed STORE key. 2. Enter the desired telephone number (up to 15 digits in length) to be stored. 3. Press the STORE key again. 4.
CL2900 SERIES USERS GUIDE 900 MHz Two-Line Cordless Guestroom Telephone
CL2900 SERIES TELEPHONE DIAGRAM INCLUDED IN YOUR PACKAGE Message Waiting Lamp Charge LED Modular Phone Line Jack Cordless Handset NiMH Battery Rubber Battery Screw Cover Phillips Screw Base Unit AC Adapter 10 foot, 4 Wire RJ- 11 Line Cord 15 foot, 8 Wire RJ- 45 Cable Clear Plastic Overlay User Guide PREPARING TO USE THE CL2900 SERIES TELEPHONE Data Port Store Key Line 1 Line 2 Redial/Flash Channel Flash Key Programming Port Hold Conference Auto Dial Keys M1-M5 (model CL1905) M1-M10 (model CL1910) D
CLEANING THE BATTERY CONTACTS SELECTING LINE 1 AND LINE 2 To maintain a good charge, it is important to clean all charging contacts on the Handset and Base Unit. Use a pencil eraser of other contact cleaner. DO NOT use any liquids or solvents. The Cordless’ PrimeLine/RingLine Select feature makes selecting the correct line as easy as lifting the handset. This feature prioritizes the ringing or idle line and reduces the confusion of line selection.
CONFERENCE The CONFERENCE key allows the user to originate or include two parties in a three-way phone conversation. Typical conference calls would be; - User initiates two (2) calls - User initiates one (1) call after receiving a call - User includes two (2) callers USER INITIATES TWO (2) CALLS: 1. Place call to first party. 2. Place the first party on hold by pressing the HOLD key. 3. Place call to second party using the available, unused line. 4. Press the CONF key. The parties will be connected.
REQUIREMENTS OF PART 68 - FCC RULES IMPORTANT SAFETY INSTRUCTIONS This device has been granted a registration number by the Federal Communications Commission, under Part 68 rules and regulations for direct connection to the telephone lines. In order to comply with these FCC rules, the following instructions must be carefully read and applicable portions followed completely: 1.
