ADS1115EVM-PDK Kit Operation www.ti.com
space
Step 2. Select ADS1115EVM from the EVM drop-down menu. The ADS1115EVM-PDK plug-in
appears in the left pane, as Figure 8 shows.

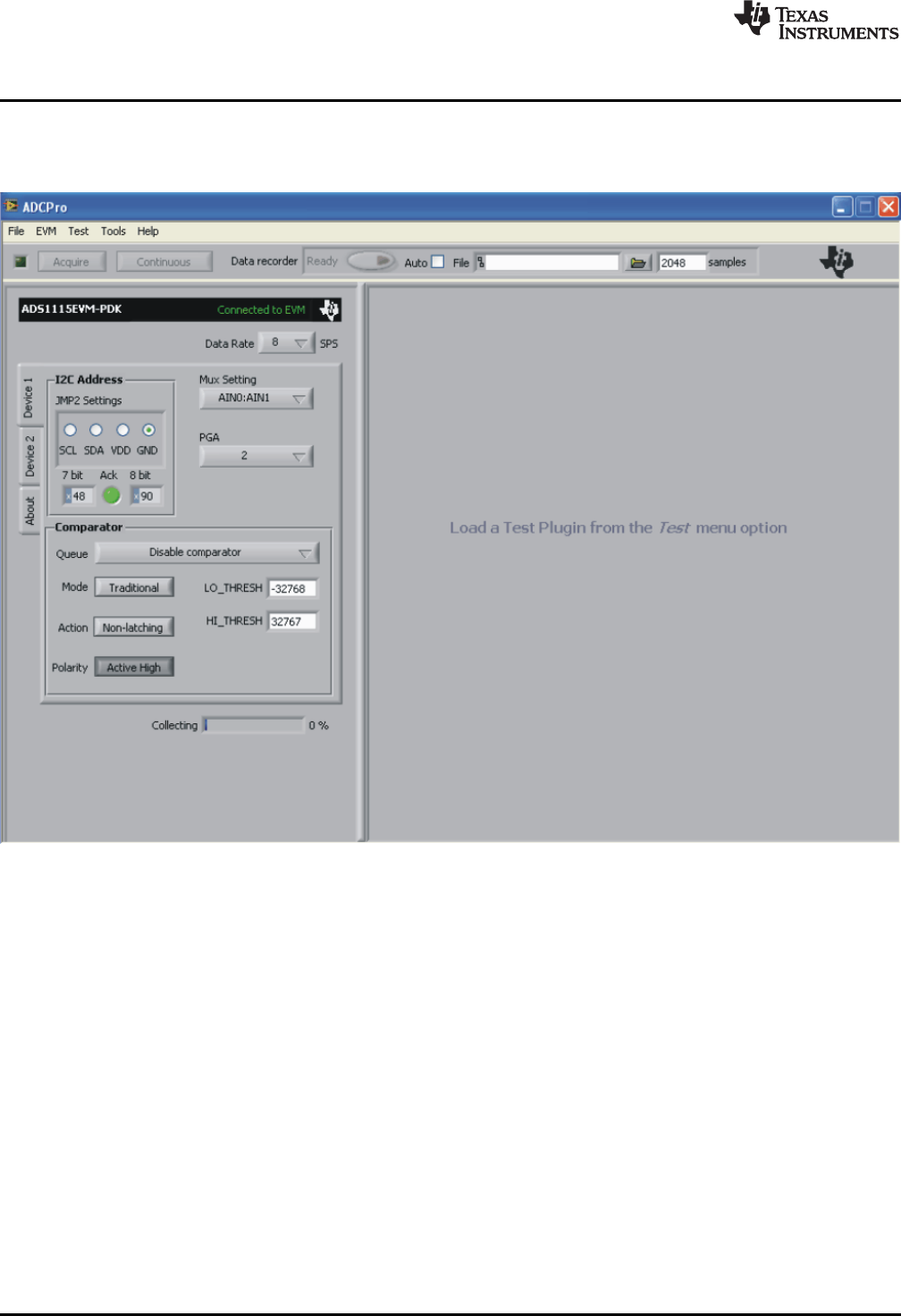

Figure 8. ADS1115EVM-PDK Plug-In Display Window
Step 3. The ADS1115EVM-PDK plug-in window has a status area at the top of the screen. When the
plug-in is first loaded, the plug-in searches for the board. You will see a series of messages
in the status area indicating this action.
