7.1.5 Collecting Data
Once you have configured the ADS1115 for your test scenario, press the ADCPro Acquire button to start
the collection of the number of datapoints specified in the Test plug-in Block Size control. The
ADS1115EVM-PDK plug-in disables all the front panel controls while acquiring, and displays a progress

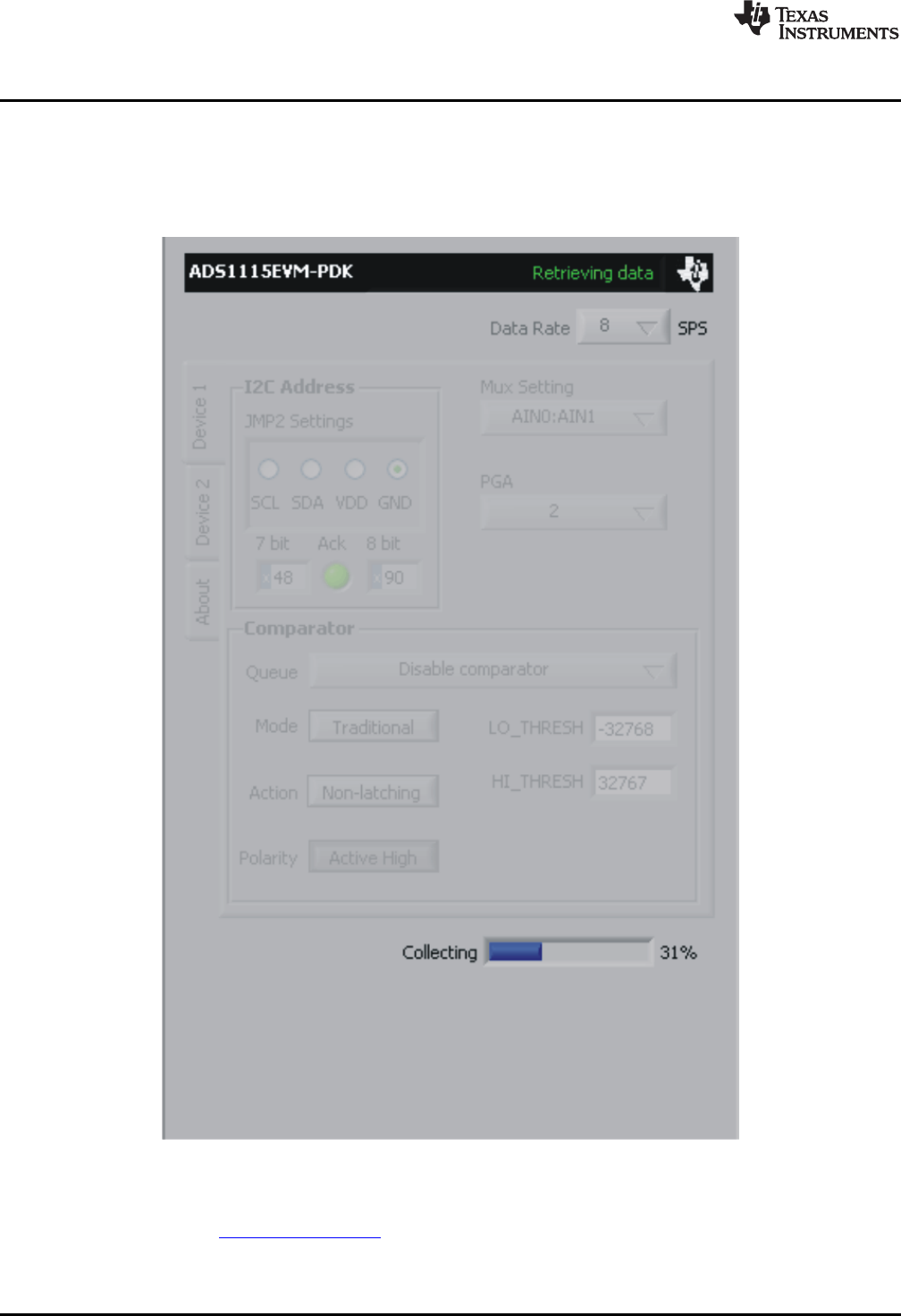

bar as shown in Figure 15.
Figure 15. Progress Bar While Collecting Data
For more information on testing analog-to-digital converters in general and using ADCPro and Test
plug-ins, refer to the ADCPro User Guide.
