ADS1115EVM-PDK Kit Operation
www.ti.com
6.2 Setting Up the ADS1115EVM-PDK
The ADS1115EVM-PDK contains both the ADS1115EVM and the MMB3 motherboard; however, the
devices are shipped unconnected. Follow these steps to set up the ADS1115EVM-PDK.
Step 1. Unpack the ADS1115EVM-PDK kit.
Step 2. Set the switches on the MMB3 as described below, as Figure 4 illustrates.
• Set switch SW4 to the right.
• Set the DAC switch (SW5) to the OUT position (to the right).

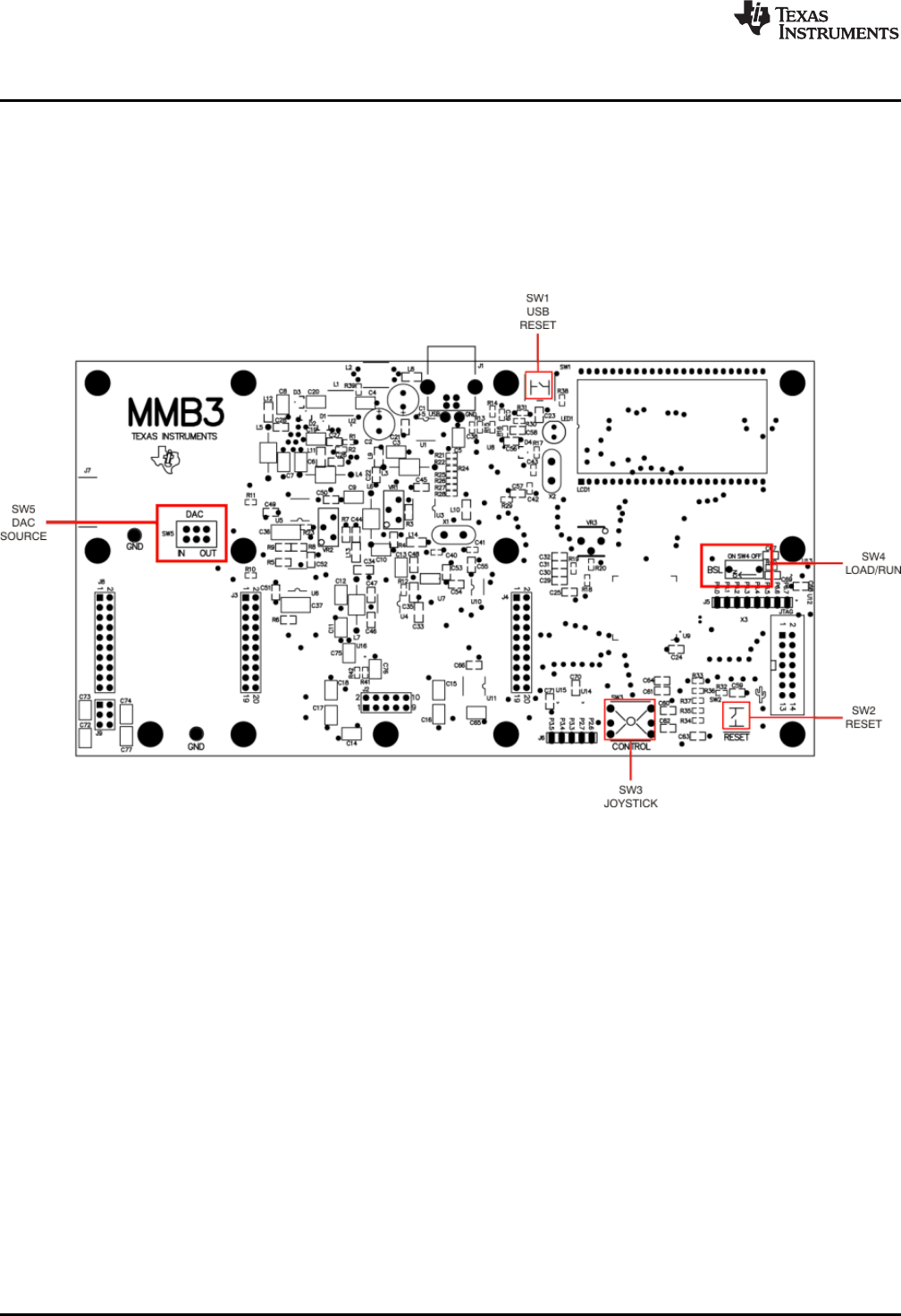

Figure 4. MMB3 Switch Locations
