bq2060A

www.ti.com

SLUS500D –OCTOBER 2001– REVISED OCTOBER 2011

SBS v1.1-Compliant Gas Gauge IC

Check for Samples: bq2060A

The bq2060A supports the smart battery data

FEATURES

(SBData) commands and charge-control functions. It

• Provides Accurate Measurement of Available

communicates data using the system management

Charge in NiCd, NiMH, Li-Ion, and Lead-Acid

bus (SMBus) 2-wire protocol or the Benchmarq 1-wire

Batteries

HDQ16 protocol. The data available include the

remaining battery capacity, temperature, voltage,

• Supports SBS Smart Battery Data

current, and remaining run-time predictions. The

Specification v1.1

bq2060A provides LED drivers and a pushbutton

• Supports the 2-Wire SMBus v1.1 Interface With

input to depict remaining battery capacity from full to

PEC or 1-Wire HDQ16

empty in 20% or 25% increments with a 4- or

• Reports Individual Cell Voltages

5-segment display.

• Monitors and Provides Control to Charge and

The bq2060A works with an external EEPROM. The

Discharge FETs in Li-Ion Protection Circuit

EEPROM stores the configuration information for the

bq2060A, such as battery chemistry, self-discharge

• Provides 15-Bit Resolution for Voltage,

rate, rate compensation factors, measurement

Temperature, and Current Measurements

calibration, and design voltage and capacity. The

• Measures Charge Flow Using a V-to-F

bq2060A uses the programmable self-discharge rate

Converter With Offset of Less Than 16 µV After

and other compensation factors stored in the

Calibration

EEPROM to accurately adjust remaining capacity for

• Consumes Less Than 0.5 mW Operating

use and standby conditions based on time, rate, and

temperature. The bq2060A also automatically

• Drives a 4- or 5-Segment LED Display for

calibrates or learns the true battery capacity in the

Remaining Capacity Indication

course of a discharge cycle from near-full to

• 28-Pin 150-Mil (3,8-mm) SSOP

near-empty levels.

The REG output regulates the operating voltage for

DESCRIPTION

the bq2060A from the battery cell stack using an

The bq2060A SBS-compliant gas gauge IC for

external JFET.

battery pack or in-system installation maintains an

accurate record of available charge in rechargeable

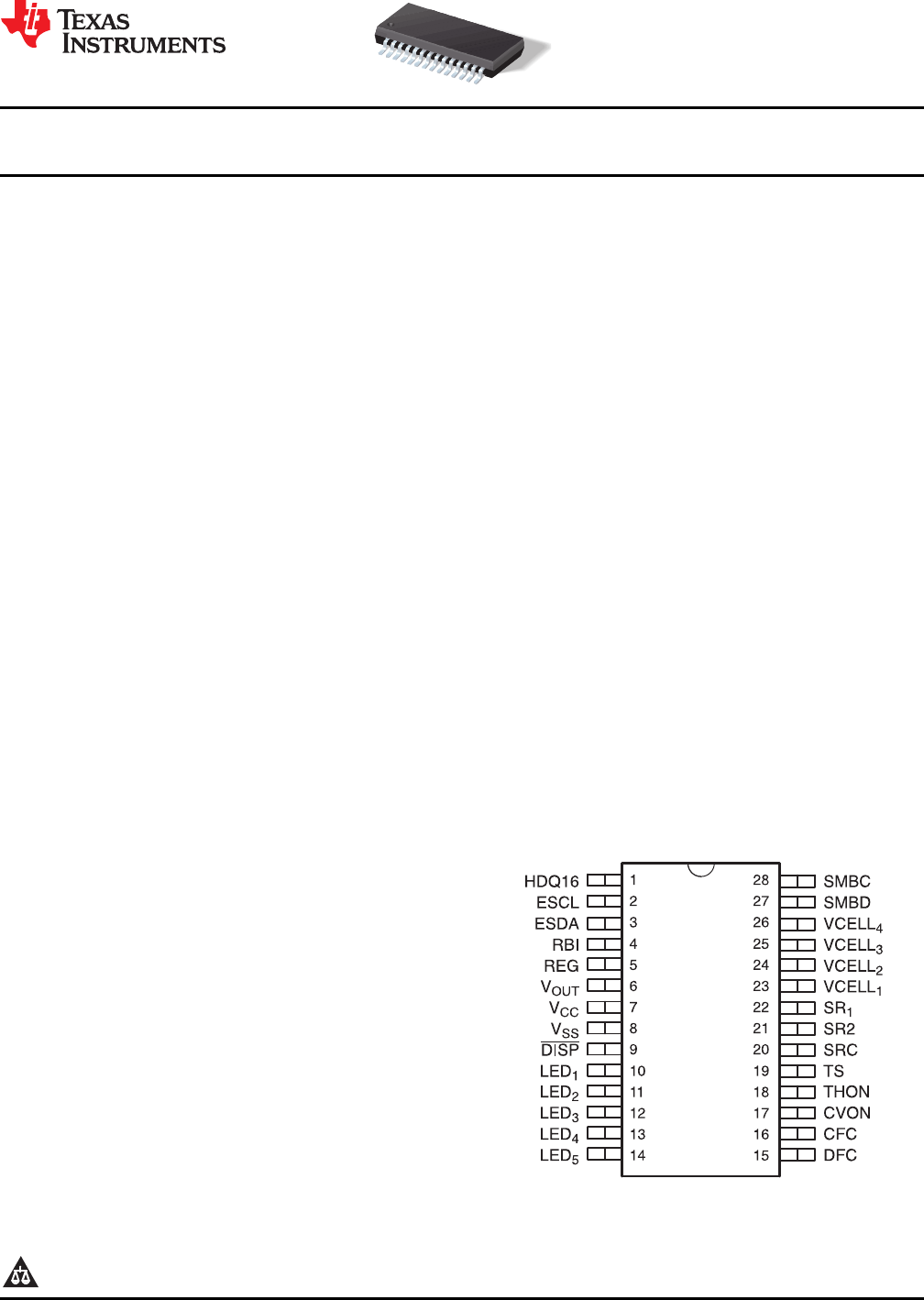

PIN CONNECTIONS

batteries. The bq2060A monitors capacity and other

critical battery parameters for NiCd, NiMH, Li-ion, and

lead-acid chemistries. The bq2060A uses a

150-Mil (3,8-mm) SSOP

28-Pin

voltage-to-frequency converter with automatic offset

error correction for charge and discharge counting.

For voltage, temperature, and current reporting, the

bq2060A uses an A-to-D converter. The onboard

ADC also monitors individual cell voltages in a Li-ion

battery pack and allows the bq2060A to generate

control signals that may be used with a pack

supervisor to enhance pack safety.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas

Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.
