Data sheet acquired from Harris Semiconductor
SCHS098D − Revised October 2003

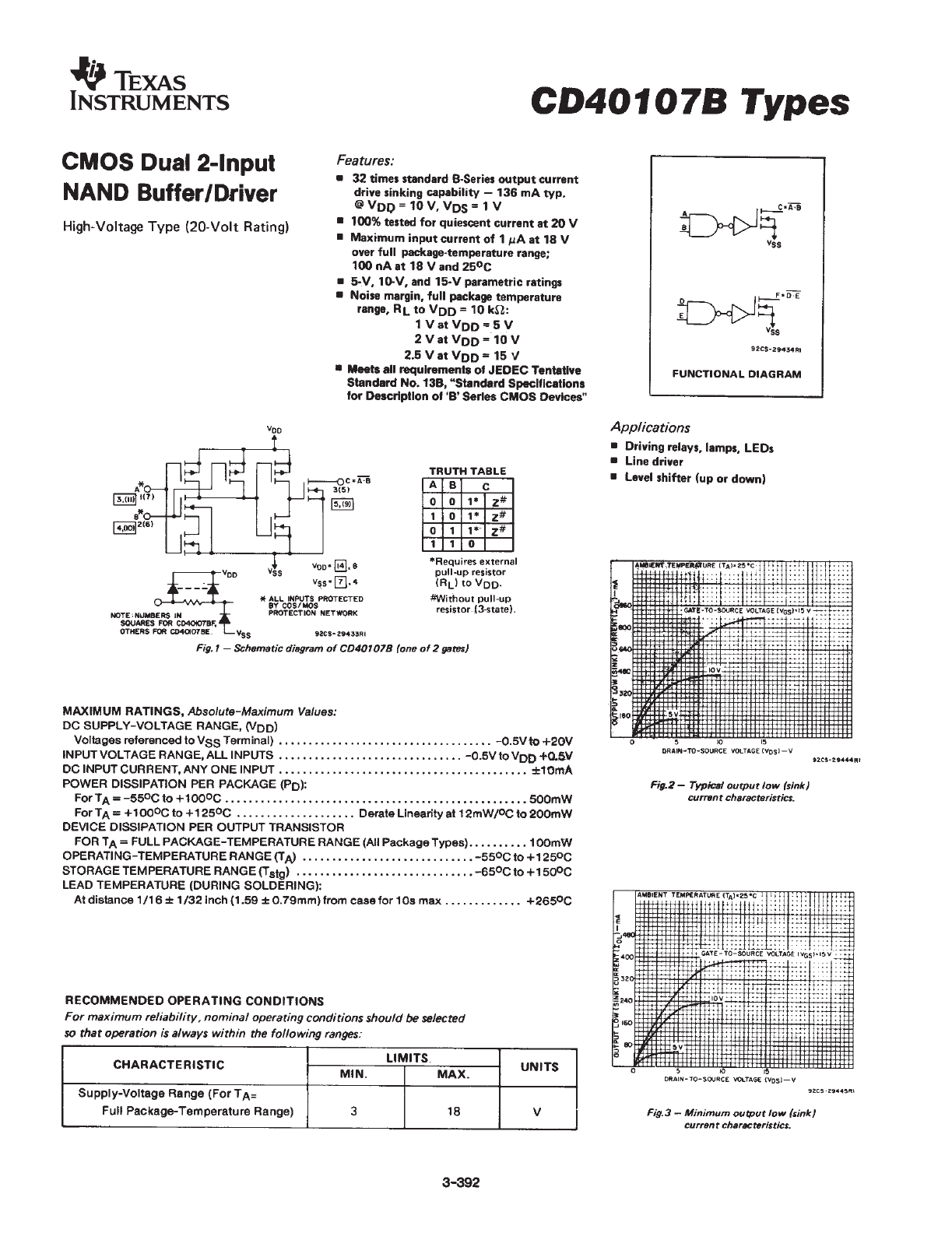

The CD40107B is a dual 2-input NAND
buffer/driver containing two independent
2-input NAND buffers with open-drain single
n-channel transistor outputs. This device
features a wired-OR capability and high output
sink current capability (136 mA typ. at
V
DD
= 10 V, V
DS
= 1 V). The CD40107B is
supplied in 8-lead hermetic dual-in-line ceramic
packages (F3A suffix), 8-lead dual-in-line
plastic packages (E suffix), 8-lead small-outline
packages (M, M96, MT, and PSR suffixes), and
8-lead thin shrink small-outline packages (PW
and PWR suffixes).
Copyright © 2003, Texas Instruments Incorporated
