DS90LV012A /DS90LT012A 3V LVDS Single CMOS Differential Line Receiver

Check for Samples: DS90LT012A, DS90LV012A

FEATURES

DESCRIPTION

The DS90LV012A and DS90LT012A are single

• Compatible with ANSI TIA/EIA-644-A Standard

CMOS differential line receivers designed for

• >400 Mbps (200 MHz) switching rates

applications requiring ultra low power dissipation, low

• 100 ps differential skew (typical)

noise, and high data rates. The devices are designed

to support data rates in excess of 400 Mbps (200

• 3.5 ns maximum propagation delay

MHz) utilizing Low Voltage Differential Swing (LVDS)

• Integrated line termination resistor (102Ω

technology

typical)

The DS90LV012A and DS90LT012A accept low

• Single 3.3V power supply design (2.7V to 3.6V

voltage (350 mV typical) differential input signals and

range)

translates them to 3V CMOS output levels. The

• Power down high impedance on LVDS inputs

receivers also support open, shorted, and terminated

(100Ω) input fail-safe. The receiver output will be

• Accepts small swing (350 mV typical)

HIGH for all fail-safe conditions. The DS90LV012A

differential signal levels

has a pinout designed for easy PCB layout. The

• LVDS receiver inputs accept

DS90LT012A includes an input line termination

LVDS/BLVDS/LVPECL inputs

resistor for point-to-point applications.

• Supports open, short and terminated input fail-

The DS90LV012A and DS90LT012A, and companion

safe

LVDS line driver provide a new alternative to high

• Pinout simplifies PCB layout

power PECL/ECL devices for high speed interface

applications.

• Low Power Dissipation (10mW typical@ 3.3V

static)

• SOT-23 5-lead package

• Leadless WSON-8 package (3x3 mm body size)

• Electrically similar to the DS90LV018A

• Fabricated with advanced CMOS process

technology

• Industrial temperature operating range (−40°C

to +85°C)

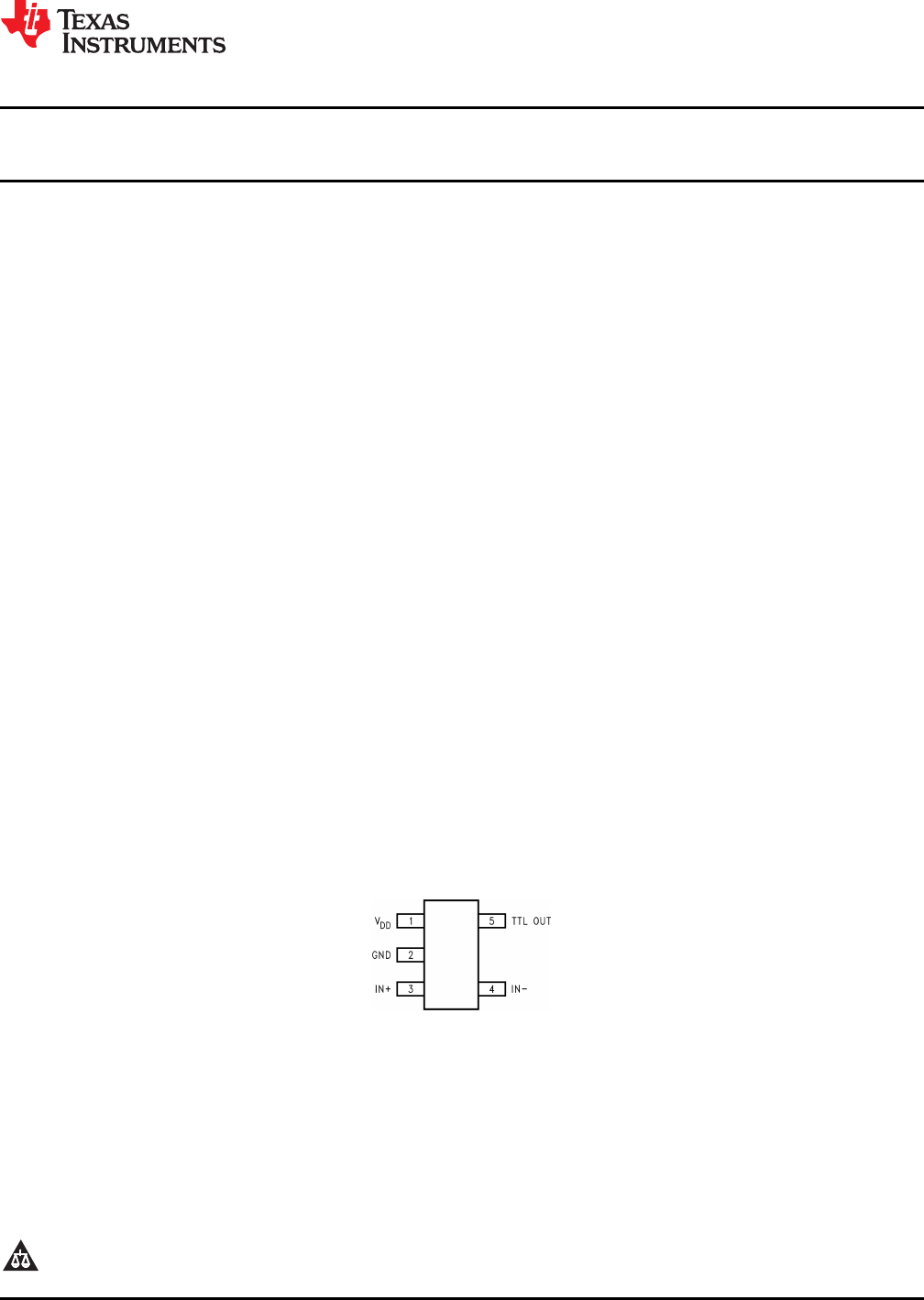

Connection Diagram

Figure 1. Top View

See Package Number DBV (R-PDSO-G5)

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.

Summary of content (18 pages)

PAGE 1
DS90LT012A, DS90LV012A www.ti.com SNLS141D – AUGUST 2002 – REVISED APRIL 2013 DS90LV012A /DS90LT012A 3V LVDS Single CMOS Differential Line Receiver Check for Samples: DS90LT012A, DS90LV012A FEATURES DESCRIPTION • • • • • The DS90LV012A and DS90LT012A are single CMOS differential line receivers designed for applications requiring ultra low power dissipation, low noise, and high data rates.
PAGE 2
DS90LT012A, DS90LV012A SNLS141D – AUGUST 2002 – REVISED APRIL 2013 www.ti.com Figure 2. Top View See Package Number NGK0008A Functional Diagram Figure 3. DS90LV012A Figure 4. DS90LT012A Truth Table INPUTS OUTPUT [IN+] − [IN−] TTL OUT VID ≥ 0V H VID ≤ −0.1V L Full Fail-safe OPEN/SHORT or Terminated H These devices have limited built-in ESD protection.
PAGE 3
DS90LT012A, DS90LV012A www.ti.com SNLS141D – AUGUST 2002 – REVISED APRIL 2013 Absolute Maximum Ratings (1) −0.3V to +4V Supply Voltage (VDD) −0.3V to +3.9V Input Voltage (IN+, IN−) −0.3V to (VDD + 0.3V) Output Voltage (TTL OUT) −100mA Output Short Circuit Current Maximum Package Power Dissipation @ +25°C NGK Package 2.26 W Derate NGK Package 18.1 mW/°C above +25°C Thermal resistance (θJA) 55.3°C/W DBV Package 902mW Derate DBV Package 7.22 mW/°C above +25°C Thermal resistance (θJA) 138.
PAGE 4
DS90LT012A, DS90LV012A SNLS141D – AUGUST 2002 – REVISED APRIL 2013 www.ti.com Electrical Characteristics (continued) Over Supply Voltage and Operating Temperature ranges, unless otherwise specified. (1) (2) Symbol Parameter VTH Differential Input High Threshold VTL Differential Input Low Threshold VCM Common-Mode Voltage IIN Input Current (DS90LV012A) Conditions VCM dependant on VDD (3) Pin IN+, IN− −100 Change in Magnitude of IIN 0 mV −30 mV V 0.05 VDD - 0.3V V VIN = +2.
PAGE 5
DS90LT012A, DS90LV012A www.ti.com SNLS141D – AUGUST 2002 – REVISED APRIL 2013 Switching Characteristics Over Supply Voltage and Operating Temperature ranges, unless otherwise specified. Symbol Parameter (1) (2) Conditions Min Typ Max Units tPHLD Differential Propagation Delay High to Low CL = 15 pF 1.0 1.8 3.5 ns tPLHD Differential Propagation Delay Low to High VID = 200 mV 1.0 1.7 3.
PAGE 6
DS90LT012A, DS90LV012A SNLS141D – AUGUST 2002 – REVISED APRIL 2013 www.ti.com PARAMETER MEASUREMENT INFORMATION Figure 5. Receiver Propagation Delay and Transition Time Test Circuit Figure 6. Receiver Propagation Delay and Transition Time Waveforms TYPICAL APPLICATIONS Balanced System Figure 7. Point-to-Point Application (DS90LV012A) Balanced System Figure 8.
PAGE 7
DS90LT012A, DS90LV012A www.ti.com SNLS141D – AUGUST 2002 – REVISED APRIL 2013 APPLICATION INFORMATION General application guidelines and hints for LVDS drivers and receivers may be found in the following application notes: LVDS Owner's Manual (SNLA187), AN-808 (SNLA028), AN-977 (SNLA166), AN-971 (SNLA165), AN-916 (SNLA219), AN-805 (SNOA233), AN-903 (SNLA034). LVDS drivers and receivers are intended to be primarily used in an uncomplicated point-to-point configuration as is shown in Figure 7.
PAGE 8
DS90LT012A, DS90LV012A SNLS141D – AUGUST 2002 – REVISED APRIL 2013 www.ti.com Avoid 90° turns (these cause impedance discontinuities). Use arcs or 45° bevels. Within a pair of traces, the distance between the two traces should be minimized to maintain common-mode rejection of the receivers. On the printed circuit board, this distance should remain constant to avoid discontinuities in differential impedance. Minor violations at connection points are allowable.
PAGE 9
DS90LT012A, DS90LV012A www.ti.com SNLS141D – AUGUST 2002 – REVISED APRIL 2013 FAIL-SAFE FEATURE The LVDS receiver is a high gain, high speed device that amplifies a small differential signal (20mV) to CMOS logic levels. Due to the high gain and tight threshold of the receiver, care should be taken to prevent noise from appearing as a valid signal.
PAGE 10
DS90LT012A, DS90LV012A SNLS141D – AUGUST 2002 – REVISED APRIL 2013 www.ti.com Pin Functions Pin Descriptions Package Pin Number 10 Pin Name Description SOT-23 WSON 4 1 IN− Inverting receiver input pin 3 3 IN+ Non-inverting receiver input pin 5 8 TTL OUT Receiver output pin 1 6 VDD Power supply pin, +3.3V ± 0.
PAGE 11
DS90LT012A, DS90LV012A www.ti.com SNLS141D – AUGUST 2002 – REVISED APRIL 2013 REVISION HISTORY Changes from Revision C (April 2013) to Revision D • Page Changed layout of National Data Sheet to TI format ..........................................................................................................
PAGE 12
PACKAGE OPTION ADDENDUM www.ti.
PAGE 13
PACKAGE OPTION ADDENDUM www.ti.com 1-Nov-2013 Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties.
PAGE 14
PACKAGE MATERIALS INFORMATION www.ti.com 11-Oct-2013 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SPQ SOT-23 DBV 5 1000 178.0 8.4 DS90LT012ATMF/NOPB SOT-23 DS90LT012ATMF Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant 3.2 3.2 1.4 4.0 8.0 Q3 DBV 5 1000 178.0 8.4 3.2 3.2 1.4 4.0 8.0 Q3 SOT-23 DBV 5 1000 178.0 8.4 3.2 3.2 1.4 4.0 8.
PAGE 15
PACKAGE MATERIALS INFORMATION www.ti.com 11-Oct-2013 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) DS90LT012ATMF SOT-23 DBV 5 1000 210.0 185.0 35.0 DS90LT012ATMF/NOPB SOT-23 DBV 5 1000 210.0 185.0 35.0 DS90LV012ATMF SOT-23 DBV 5 1000 210.0 185.0 35.0 DS90LV012ATMF/NOPB SOT-23 DBV 5 1000 210.0 185.0 35.0 DS90LV012ATMFX/NOPB SOT-23 DBV 5 3000 210.0 185.0 35.
PAGE 16
PAGE 17
PAGE 18
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
