LM2733 ³;´

GND

SHDN

51K

SHDN

GND

5 V

2.2PF

13.3K

120pF

MBR0530

R1/205K

L1/10PH

4.7PF

20V

OUT

170mA

(TYP)

LM2733 ³;´

GND

SHDN

51K

SHDN

GND

5 V

2.2PF

13.3K

220pF

MBR0520

R1/117K

L1/10PH

4.7PF

12V

OUT

330mA

(TYP)

LM2733

www.ti.com

SNVS209E –NOVEMBER 2002–REVISED APRIL 2013

LM2733 0.6/1.6 MHz Boost Converters With 40V Internal FET Switch in SOT-23

Check for Samples: LM2733

FEATURES

DESCRIPTION

The LM2733 switching regulators are current-mode

• 40V DMOS FET Switch

boost converters operating fixed frequency of 1.6

• 1.6 MHz (“X”), 0.6 MHz (“Y”) Switching

MHz (“X” option) and 600 kHz (“Y” option).

Frequency

The use of SOT-23 package, made possible by the

• Low R

(ON) DMOS FET

minimal power loss of the internal 1A switch, and use

• Switch Current up to 1A

of small inductors and capacitors result in the

industry's highest power density. The 40V internal

• Wide Input Voltage Range (2.7V–14V)

switch makes these solutions perfect for boosting to

• Low Shutdown Current (<1 µA)

voltages of 16V or greater.

• 5-Lead SOT-23 Package

These parts have a logic-level shutdown pin that can

• Uses Tiny Capacitors and Inductors

be used to reduce quiescent current and extend

• Cycle-by-Cycle Current Limiting

battery life.

• Internally Compensated

Protection is provided through cycle-by-cycle current

limiting and thermal shutdown. Internal compensation

APPLICATIONS

simplifies design and reduces component count.

• White LED Current Source

Table 1. Switch Frequency

• PDA’s and Palm-Top Computers

X Y

• Digital Cameras

1.6 MHz 0.6 MHz

• Portable Phones and Games

• Local Boost Regulator

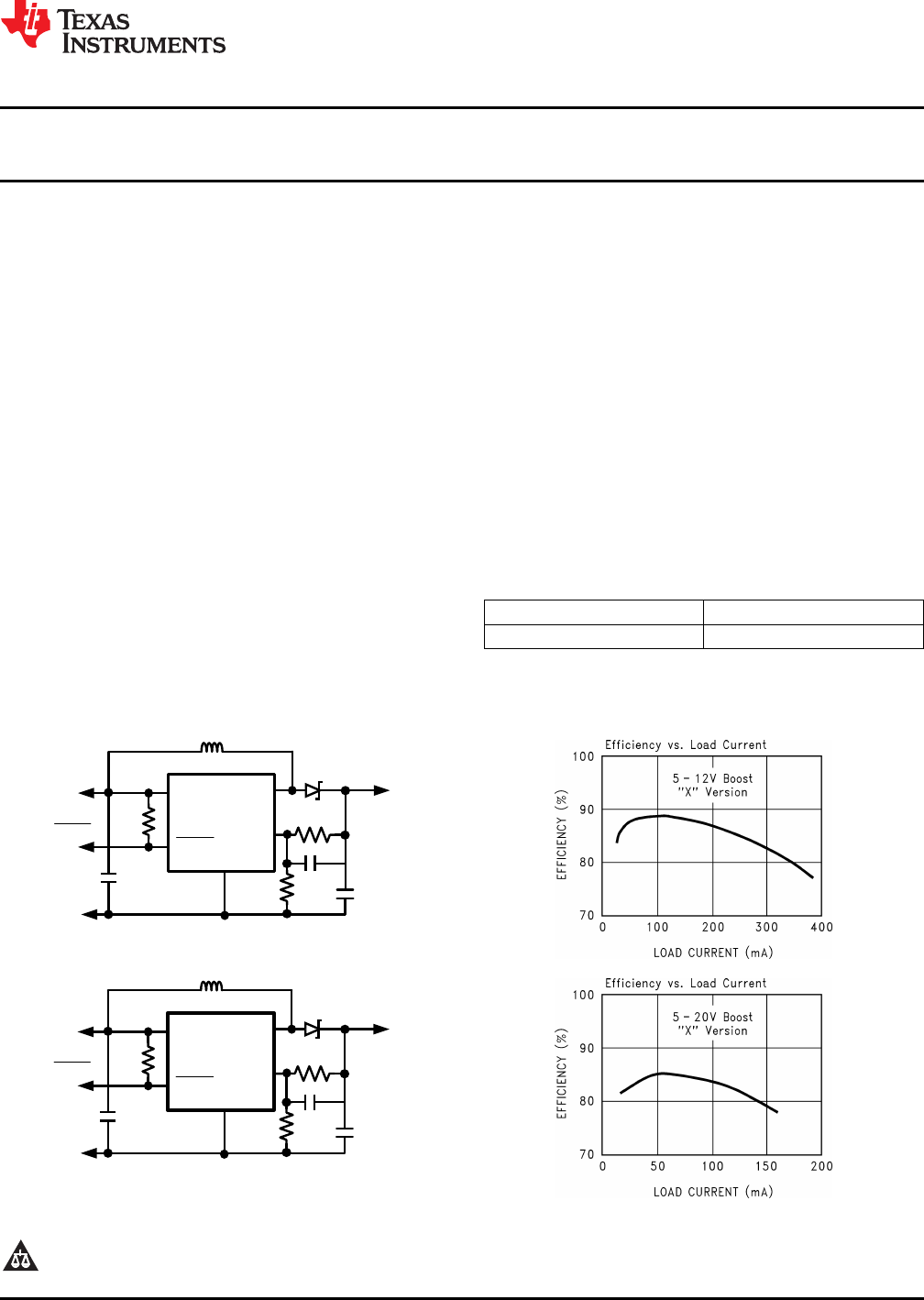

Typical Application Circuit

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.

Summary of content (22 pages)

PAGE 1
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 LM2733 0.6/1.6 MHz Boost Converters With 40V Internal FET Switch in SOT-23 Check for Samples: LM2733 FEATURES DESCRIPTION • • The LM2733 switching regulators are current-mode boost converters operating fixed frequency of 1.6 MHz (“X” option) and 600 kHz (“Y” option). 1 2 • • • • • • • • 40V DMOS FET Switch 1.6 MHz (“X”), 0.6 MHz (“Y”) Switching Frequency Low RDS(ON) DMOS FET Switch Current up to 1A Wide Input Voltage Range (2.
PAGE 2
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 VIN SHDN R3 51K U1 SW LM2733 ³<´ SHDN GND GND D1 MBR0540 L1/10PH 5 VIN C1 2.2PF www.ti.com R1/309K FB R2 13.3K CF 82pF 30V OUT 110mA (TYP) C2 4.7PF Connection Diagram Top View Figure 1. 5-Lead SOT-23 Package See Package Number DBV (R-PDSO-G5) PIN DESCRIPTIONS Pin Name 1 SW 2 GND 3 FB 4 SHDN 5 VIN Function Drain of the internal FET switch. Analog and power ground. Feedback point that connects to external resistive divider.
PAGE 3
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 Absolute Maximum Ratings (1) (2) Storage Temperature Range −65°C to +150°C Operating Junction Temperature Range −40°C to +125°C Lead Temp. (Soldering, 5 sec.) 300°C Power Dissipation (3) Internally Limited FB Pin Voltage −0.4V to +6V SW Pin Voltage −0.4V to +40V −0.4V to +14.5V Input Supply Voltage −0.4V to VIN + 0.
PAGE 4
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 www.ti.com Typical Performance Characteristics Unless otherwise specified: VIN = 5V, SHDN pin is tied to VIN. Iq VIN (Active) vs Temperature - "X" Iq VIN (Active) vs Temperature - "Y" 1.06 1.05 Iq ACTIVE (mA) 1.04 1.03 1.02 1.01 1 0.99 0.98 -50 -25 0 25 50 75 100 125 150 TEMPERATURE (oC) Figure 2. Figure 3. Oscillator Frequency vs Temperature - "X" Oscillator Frequency vs Temperature - "Y" 0.615 OSCILLATOR FREQUENCY (MHz) 0.610 0.605 0.
PAGE 5
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 Typical Performance Characteristics (continued) Unless otherwise specified: VIN = 5V, SHDN pin is tied to VIN. Feedback Voltage vs Temperature RDS(ON) vs Temperature Figure 8. Figure 9. Current Limit vs Temperature RDS(ON) vs VIN Figure 10. Figure 11. Efficiency vs Load Current (VOUT = 12V) - "X" Efficiency vs Load Current (VOUT = 15V) - "X" 100 90 VIN = 10V EFFICIENCY (%) 80 VIN = 5V 70 60 VIN = 3.
PAGE 6
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 www.ti.com Typical Performance Characteristics (continued) Unless otherwise specified: VIN = 5V, SHDN pin is tied to VIN. Efficiency vs Load Current (VOUT = 20V) - "X" Efficiency vs Load Current (VOUT = 25V) - "X" 100 100 90 90 VIN = 10V VIN = 5V 70 VIN = 3.
PAGE 7
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 Typical Performance Characteristics (continued) Unless otherwise specified: VIN = 5V, SHDN pin is tied to VIN. Efficiency vs Load (VOUT = 20V) - "Y" Efficiency vs Load (VOUT = 25V) - "Y" Figure 20. Figure 21. Efficiency vs Load (VOUT = 30V) - "Y" Efficiency vs Load (VOUT = 35V) - "Y" Figure 22. Figure 23. Efficiency vs Load (VOUT = 40V) - "Y" Figure 24.
PAGE 8
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 www.ti.com Block Diagram THEORY OF OPERATION The LM2733 is a switching converter IC that operates at a fixed frequency (0.6 or 1.6 MHz) using current-mode control for fast transient response over a wide input voltage range and incorporate pulse-by-pulse current limiting protection.
PAGE 9
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 Application Hints SELECTING THE EXTERNAL CAPACITORS The best capacitors for use with the LM2733 are multi-layer ceramic capacitors. They have the lowest ESR (equivalent series resistance) and highest resonance frequency which makes them optimum for use with high frequency switching converters. When selecting a ceramic capacitor, only X5R and X7R dielectric types should be used.
PAGE 10
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 www.ti.com Figure 25. Recommended PCB Component Layout Some additional guidelines to be observed: 1. Keep the path between L1, D1, and C2 extremely short. Parasitic trace inductance in series with D1 and C2 will increase noise and ringing. 2. The feedback components R1, R2 and CF must be kept close to the FB pin of U1 to prevent noise injection on the FB pin trace. 3.
PAGE 11
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 DUTY CYCLE The maximum duty cycle of the switching regulator determines the maximum boost ratio of output-to-input voltage that the converter can attain in continuous mode of operation. The duty cycle for a given boost application is defined as: VOUT + VDIODE - VIN Duty Cycle = VOUT + VDIODE - VSW (3) This applies for continuous mode operation.
PAGE 12
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 www.ti.com Figure 27. 10 µH Inductor Current, 5V–12V Boost (LM2733X) During the 0.390 µs ON time, the inductor current ramps up 0.176A and ramps down an equal amount during the OFF time. This is defined as the inductor “ripple current”. It can also be seen that if the load current drops to about 33 mA, the inductor current will begin touching the zero axis which means it will be in discontinuous mode.
PAGE 13
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 CALCULATING LOAD CURRENT As shown in the figure which depicts inductor current, the load current is related to the average inductor current by the relation: ILOAD = IIND(AVG) x (1 - DC) (7) Where "DC" is the duty cycle of the application.
PAGE 14
LM2733 SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 www.ti.com The maximum peak switch current the device can deliver is dependent on duty cycle. The minimum value is specified to be > 1A at duty cycle below 50%. For higher duty cycles, see Typical performance Characteristics curves. THERMAL CONSIDERATIONS At higher duty cycles, the increased ON time of the FET means the maximum output current will be determined by power dissipation within the LM2733 FET switch.
PAGE 15
LM2733 www.ti.com SNVS209E – NOVEMBER 2002 – REVISED APRIL 2013 REVISION HISTORY Changes from Revision D (April 2013) to Revision E • Page Changed layout of National Data Sheet to TI format ..........................................................................................................
PAGE 16
PACKAGE OPTION ADDENDUM www.ti.
PAGE 17
PACKAGE OPTION ADDENDUM www.ti.com 1-Nov-2013 (6) Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish value exceeds the maximum column width. Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided.
PAGE 18
PACKAGE MATERIALS INFORMATION www.ti.com 23-Sep-2013 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SPQ Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) LM2733XMF SOT-23 DBV 5 1000 178.0 8.4 B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant 3.2 3.2 1.4 4.0 8.0 Q3 LM2733YMF SOT-23 DBV 5 1000 178.0 8.4 3.2 3.2 1.4 4.0 8.0 Q3 LM2733YMF/NOPB SOT-23 DBV 5 1000 178.0 8.4 3.2 3.2 1.4 4.0 8.
PAGE 19
PACKAGE MATERIALS INFORMATION www.ti.com 23-Sep-2013 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) LM2733XMF SOT-23 DBV 5 1000 210.0 185.0 35.0 LM2733YMF SOT-23 DBV 5 1000 210.0 185.0 35.0 LM2733YMF/NOPB SOT-23 DBV 5 1000 210.0 185.0 35.0 LM2733YMFX/NOPB SOT-23 DBV 5 3000 210.0 185.0 35.
PAGE 20
PAGE 21
PAGE 22
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
