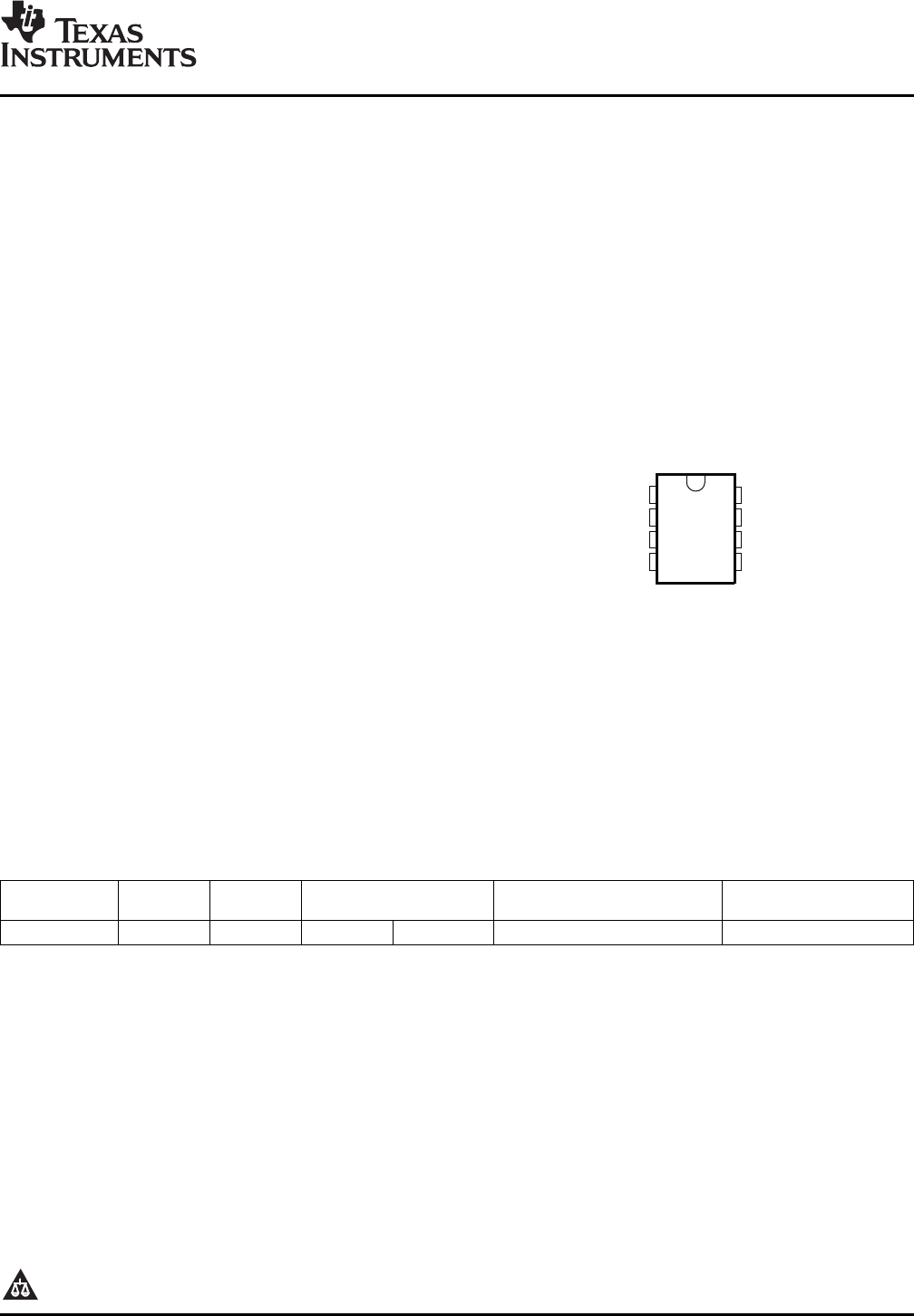

LM293...DPACKAGE
(TOP VIEW)
DESCRIPTION/ORDERING INFORMATION
LM293-EP
DUAL DIFFERENTIAL COMPARATOR
SLCS155 – OCTOBER 2007
www.ti.com
• Controlled Baseline • Low Supply-Current Drain Independent of
Supply Voltage . . . 0.4 mA Typical Per
– One Assembly
Comparator
– Test Site
• Low Input Bias Current . . . 25 nA Typical
– One Fabrication Site
• Low Input Offset Voltage . . . 2 mV Typical
• Extended Temperature Performance of
• Common-Mode Input Voltage Range Includes
– 55 ° C to 125 ° C
Ground
• Enhanced Diminishing Manufacturing Sources
• Differential Input Voltage Range Equal to
(DMS) Support
Maximum-Rated Supply Voltage . . . ± 36 V
• Enhanced Product Change Notification
• Low Output Saturation Voltage
• Qualification Pedigree
(1)
• Output Compatible With TTL, MOS, and CMOS
• Single Supply or Dual Supplies
• Wide Range of Supply Voltage
– Max Rating . . . 2 V to 36 V
– Tested to 30 V
(1) Component qualification in accordance with JEDEC and
industry standards to ensure reliable operation over an
extended temperature range. This includes, but is not limited
to, Highly Accelerated Stress Test (HAST) or biased 85/85,
temperature cycle, autoclave or unbiased HAST,
electromigration, bond intermetallic life, and mold-compound
life. Such qualification testing should not be viewed as
justifying use of this component beyond specified
performance and environmental limits.
This device consist of two independent voltage comparators that are designed to operate from a single power
supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference
between the two supplies is 2 V to 36 V, and V
CC
is at least 1.5 V more positive than the input common-mode
voltage. Current drain is independent of the supply voltage. The outputs can be connected to other
open-collector outputs to achieve wired-AND relationships.
The LM293-EP is characterized for operation from – 55 ° C to 125 ° C.
ORDERING INFORMATION
(1)
V
IOmax
T
A
MAX V
CC
PACKAGE
(2)
ORDERABLE PART NUMBER TOPSIDE MARKING
AT 25 ° C
– 55 ° C to 125 ° C 5 mV 30 V SOIC – D Reel of 2500 LM293MDREP LM293E
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
website at www.ti.com .
(2) Package drawings, thermal data, and symbolization are available at www.ti.com/packaging .
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
