SNVS409E –NOVEMBER 2005–REVISED APRIL 2013
LM5071 Power Over Ethernet PD Controller with Auxiliary Power Interface
Check for Samples: LM5071
1
FEATURES
PACKAGES
2
• Compatible with 12V AC Adapters
• TSSOP-16
• Fully Compliant 802.3af Power Interface Port
DESCRIPTION
• 80V, 1Ω, 400 mA Internal MOSFET
The LM5071 power interface port and pulse width
• Detection Resistor Disconnect Function
modulation (PWM) controller provides a complete
• Programmable Classification Current
integrated solution for Powered Devices (PD) that
connect into Power over Ethernet (PoE) systems.
• Programmable Under-voltage Lockout with
The LM5071 is specifically designed for the PD
Programmable Hysteresis
that must accept power from auxiliary sources
• Thermal Shutdown Protection
such as AC adapters. The auxiliary power interface
• Auxiliary Power Enable Pin
of the LM5071 activates the PWM controller when the
ac adapter is connected to power the PD when PoE
• Current Mode Pulse Width Modulator
network power is unavailable. The LM5071 integrates
• Supports both Isolated and Non-Isolated
an 80V, 400mA line connection switch and
Applications
associated control for a fully IEEE 802.3af compliant
• Error Amplifier and Reference for Non-Isolated
interface with a full featured current mode pulse width
Applications
modulator dc-dc converter. All power sequencing
requirements between the controller interface and
• Programmable Oscillator Frequency
switch mode power supply (SMPS) are integrated into
• Programmable Soft-Start
the IC.
• 80% Maximum Duty Cycle Limiter, Slope
Compensation (-80 device)
• 50% Maximum Duty Cycle Limiter, No Slope
Compensation (-50 device)

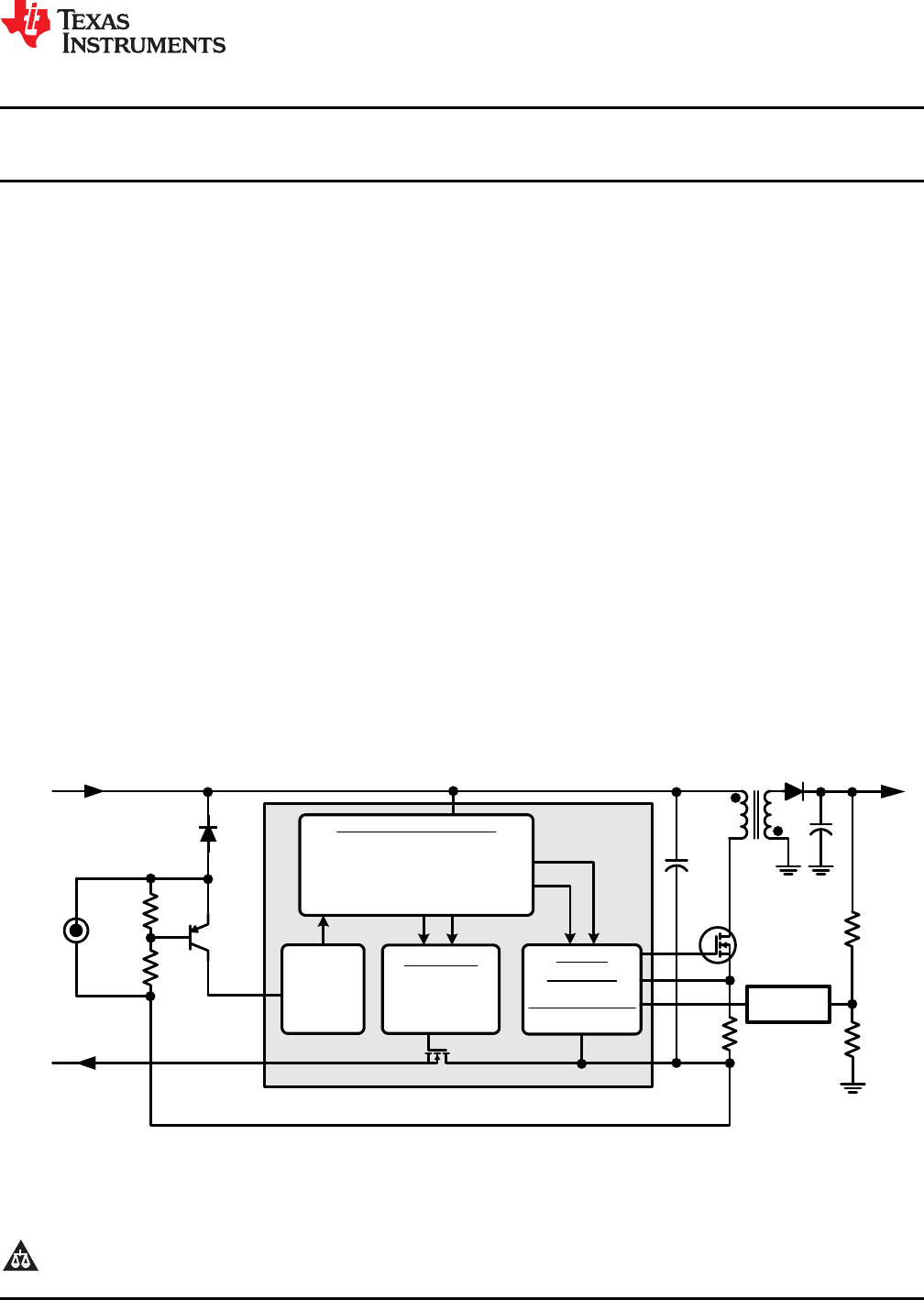

Block Diagram
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2005–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
