LMH6554 2.8 GHz Ultra Linear Fully Differential Amplifier

Check for Samples: LMH6554

FEATURES

DESCRIPTION

The LMH6554 is a high performance fully differential

• Small Signal Bandwidth 2.8 GHz

amplifier designed to provide the exceptional signal

• 2 V

Large Signal Bandwidth 1.8 GHz

fidelity and wide large-signal bandwidth necessary for

• 0.1 dB Gain Flatness 830 MHz

driving 8 to 16 bit high speed data acquisition

systems. Using TI’s proprietary differential current

• OIP3 @ 150 MHz 46.5 dBm

mode input stage architecture, the LMH6554 has

• HD2/HD3 @ 75 MHz -96 / -97 dBc

unity gain, small-signal bandwidth of 2.8 GHz and

• Input Noise Voltage 0.9 nV/√Hz

allows operation at gains greater than unity without

sacrificing response flatness, bandwidth, harmonic

• Input Noise Current 11 pA/√Hz

distortion, or output noise performance.

• Slew Rate 6200 V/μs

The device's low impedance differential output is

• Power 260mW

designed to drive ADC inputs and any intermediate

• Typical Supply Current 52 mA

filter stage. The LMH6554 delivers 16-bit linearity up

• Package 14 Lead UQFN

to 75 MHz when driving 2V peak-to-peak into loads

as low as 200Ω.

APPLICATIONS

The LMH6554 is fabricated in Texas Instruments'

• Differential ADC Driver

advanced complementary BiCMOS process and is

available in a space saving 14 lead UQFN package

• Single-Ended to Differential Converter

for higher performance.

• High Speed Differential Signaling

• IF/RF and Baseband Gain Blocks

• SAW Filter Buffer/Driver

• Oscilloscope Probes

• Automotive Safety Applications

• Video Over Twisted Pair

• Differential Line Driver

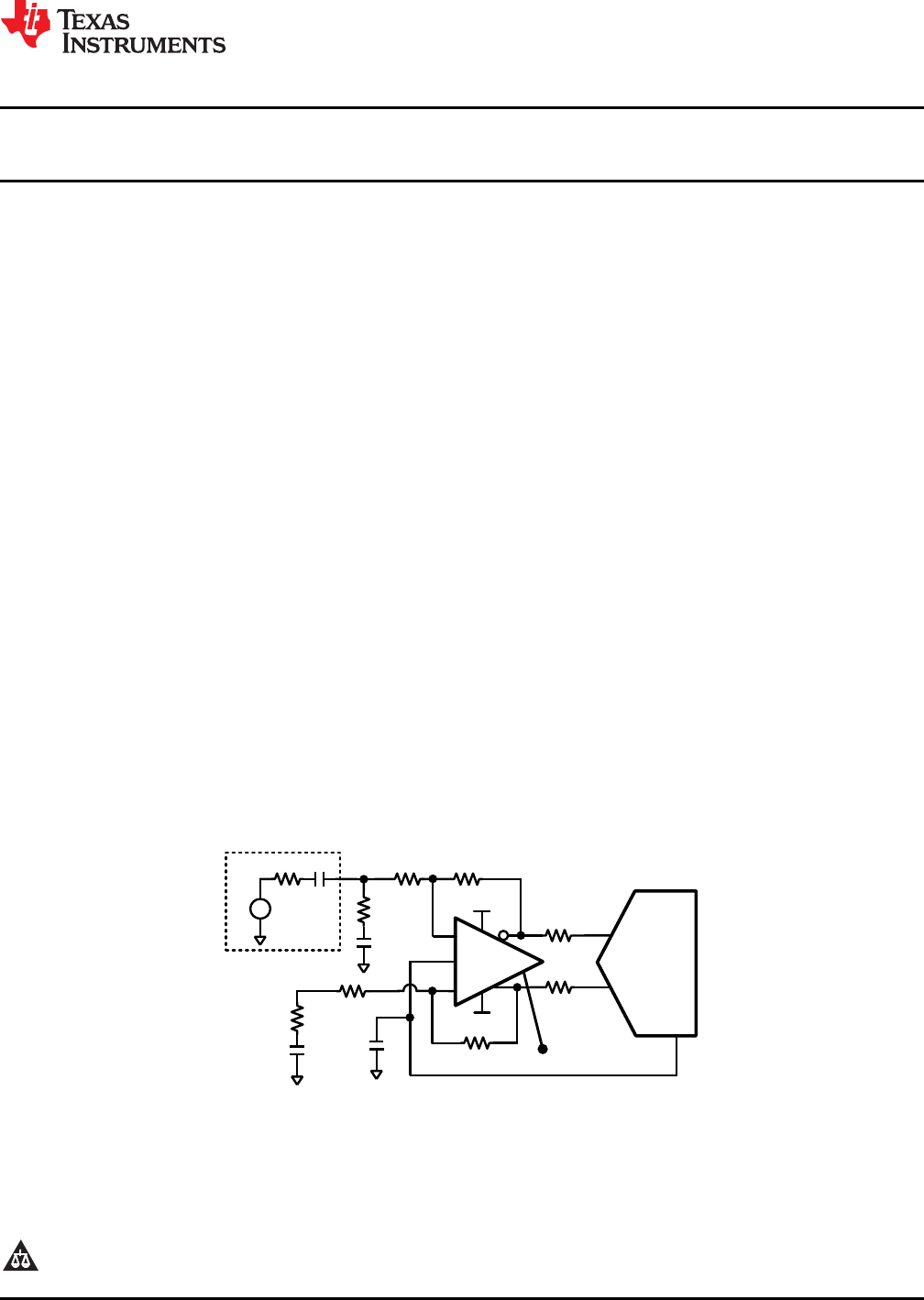

Typical Application

Figure 1. Single to Differential ADC Driver

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.
