LMV7271

www.ti.com

SNOSA56H –FEBRUARY 2003–REVISED FEBRUARY 2013

LMV7271/LMV7275/LMV7272 Single & Dual, 1.8V Low Power Comparators with Rail-to-Rail

Input

Check for Samples: LMV7271

FEATURES

DESCRIPTION

The LMV727X are rail-to-rail input low power

• (V

= 1.8V, T

= 25°C, Typical values unless

comparators, which are characterized at supply

specified).

voltage 1.8V, 2.7V and 5.0V. They consume only 9uA

• Single or Dual Supplies

supply current per channel while achieving a 800ns

• Ultra low supply current 9µA per channel

propagation delay.

• Low input bias current 10nA

The LMV7271/LMV7275 (single) are available in

SC70 and SOT-23 packages. The LMV7272 (dual) is

• Low input offset current 200pA

available in DSBGA package. With these tiny

• Low guaranteed V

4mV

packages, the PC board area can be significantly

• Propagation delay 880ns (20mV overdrive)

reduced. They are ideal for low voltage, low power

• Input common mode voltage range 0.1V

and space critical designs.

beyond rails

The LMV7271/LMV7272 both feature a push-pull

• LMV7272 is available in DSBGA package

output stage which allows operation with minimum

power consumption when driving a load. The

APPLICATIONS LMV7275 features an open drain output stage that

allows for wired-OR configurations. The open drain

• Mobile communications

output also offers the advantage of allowing the

• Laptops and PDA's

output to be pulled to any voltage up to 5.5V,

regardless of the supply voltage of the LMV7275.

• Battery powered electronics

• General purpose low voltage applications

The LMV727X are built with Texas Instruments'

advance submicron silicon-gate BiCMOS process.

They all have bipolar inputs for improved noise

performance and CMOS outputs for rail-to-rail output

swing.

Typical Circuit

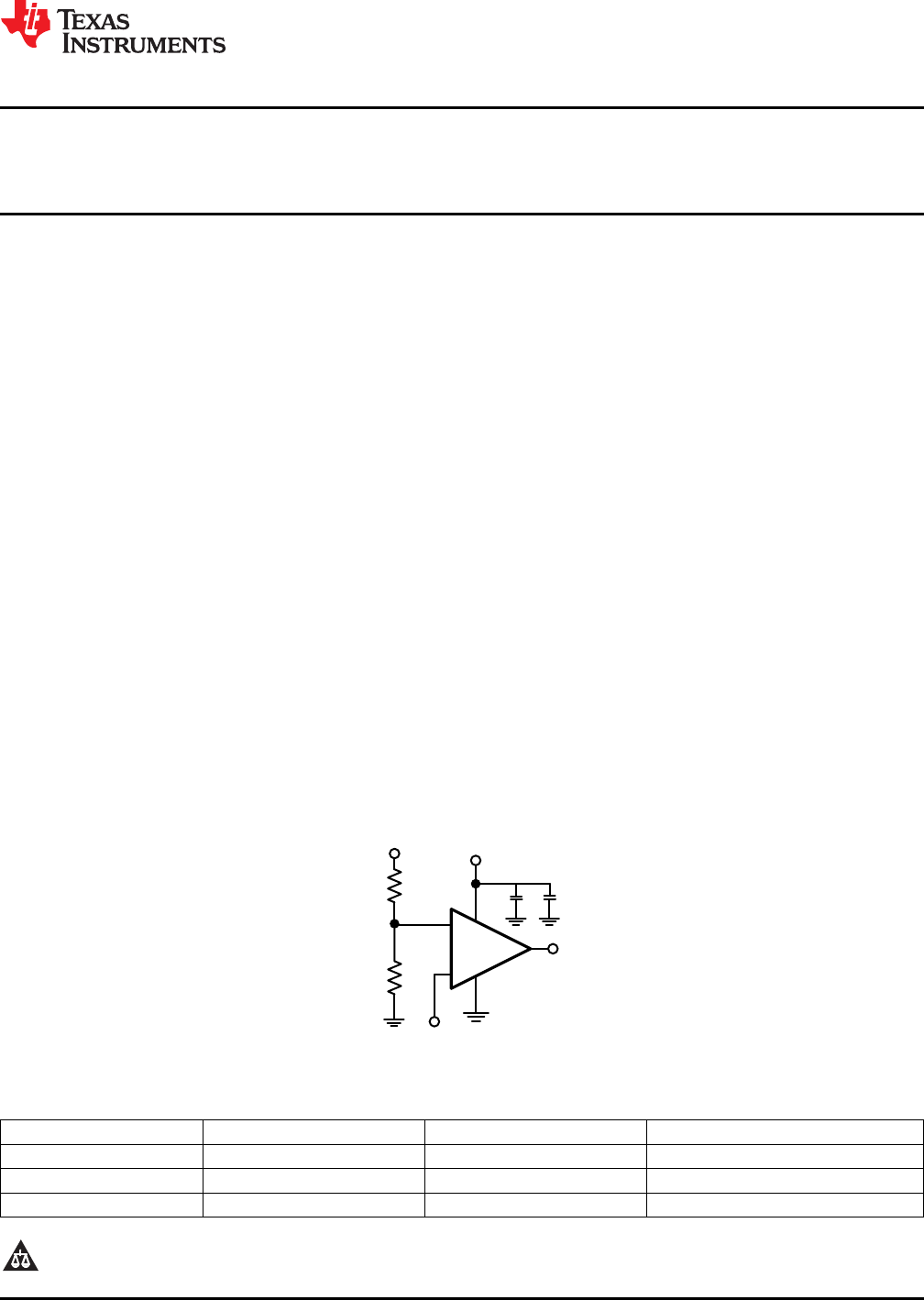

Figure 1. Threshold Detector

Part Number Single/Dual Package Output

LMV7271 Single SC70, SOT-23 Push/Pull

LMV7272 Dual DSBGA Push/Pull

LMV7275 Single SC70, SOT-23 Open Drain

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.
