LP3982

www.ti.com

SNVS185D –FEBRUARY 2002–REVISED APRIL 2013

LP3982 Micropower, Ultra Low-Dropout, Low-Noise, 300 mA CMOS Regulator

Check for Samples: LP3982

FEATURES

DESCRIPTION

The LP3982 low-dropout (LDO) CMOS linear

• MAX8860 Pin, Package and Spec. Compatible

regulator is available in 1.8V, 2.5V, 2.77V, 2.82V,

• WSON Space Saving Package

3.0V, 3.3V, and adjustable versions. They deliver 300

• 300 mA Output Current

mA of output current. Packaged in an 8-Pin VSSOP,

the LP3982 is pin and package compatible with

• 120 mV Typical Dropout @ 300 mA

Maxim's MAX8860. The LM3982 is also available in

• 90 μA Typical Quiescent Current

the small footprint WSON package.

• 1 nA Typical Shutdown Mode

The LP3982 suits battery-powered applications

• 60 dB Typical PSRR

because of its shutdown mode (1nA typ), low

• 2.5V to 6V Input Range

quiescent current (90 μA typ), and LDO voltage (120

mV typ). The low dropout voltage allows for more

• 120μs Typical Turn-on Time

utilization of a battery’s available energy by operating

• Stable with Small Ceramic Output Capacitors

closer to its end-of-life voltage. The LP3982's PMOS

• 37 μV RMS Output Voltage Noise (10 Hz to 100

output transistor consumes relatively no drive current

kHz)

compared to PNP LDO regulators.

• Over-Temperature/Over-Current Protection

This PMOS regulator is stable with small ceramic

• ±2% Output Voltage Tolerance

capacitive loads (2.2 μF typ).

These devices also include regulation fault detection,

APPLICATIONS

a bandgap voltage reference, constant current limiting

and thermal overload protection.

• Wireless Handsets

• DSP Core Power

• Battery Powered Electronics

• Portable Information Appliances

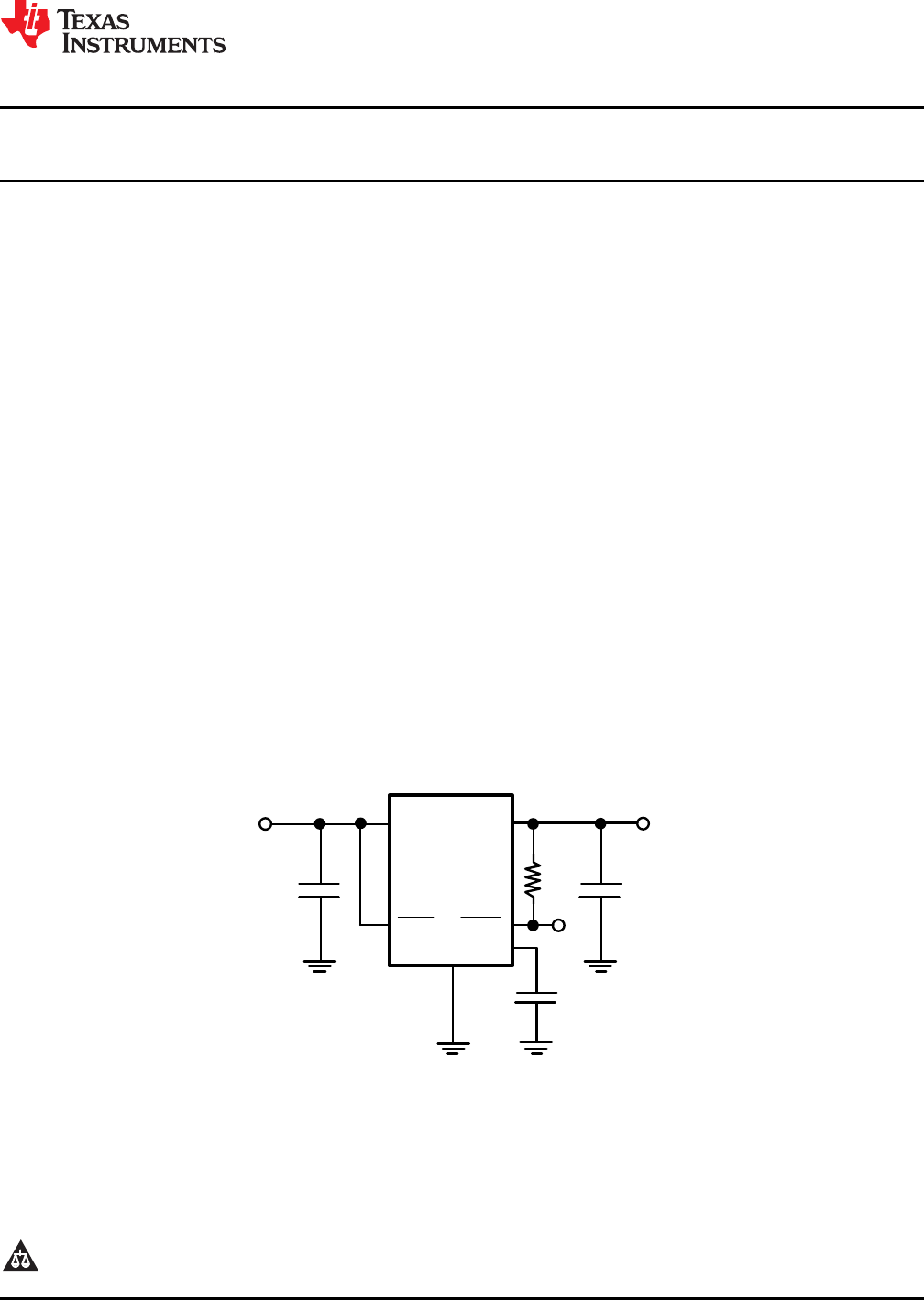

Application Circuit

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.
