E-31

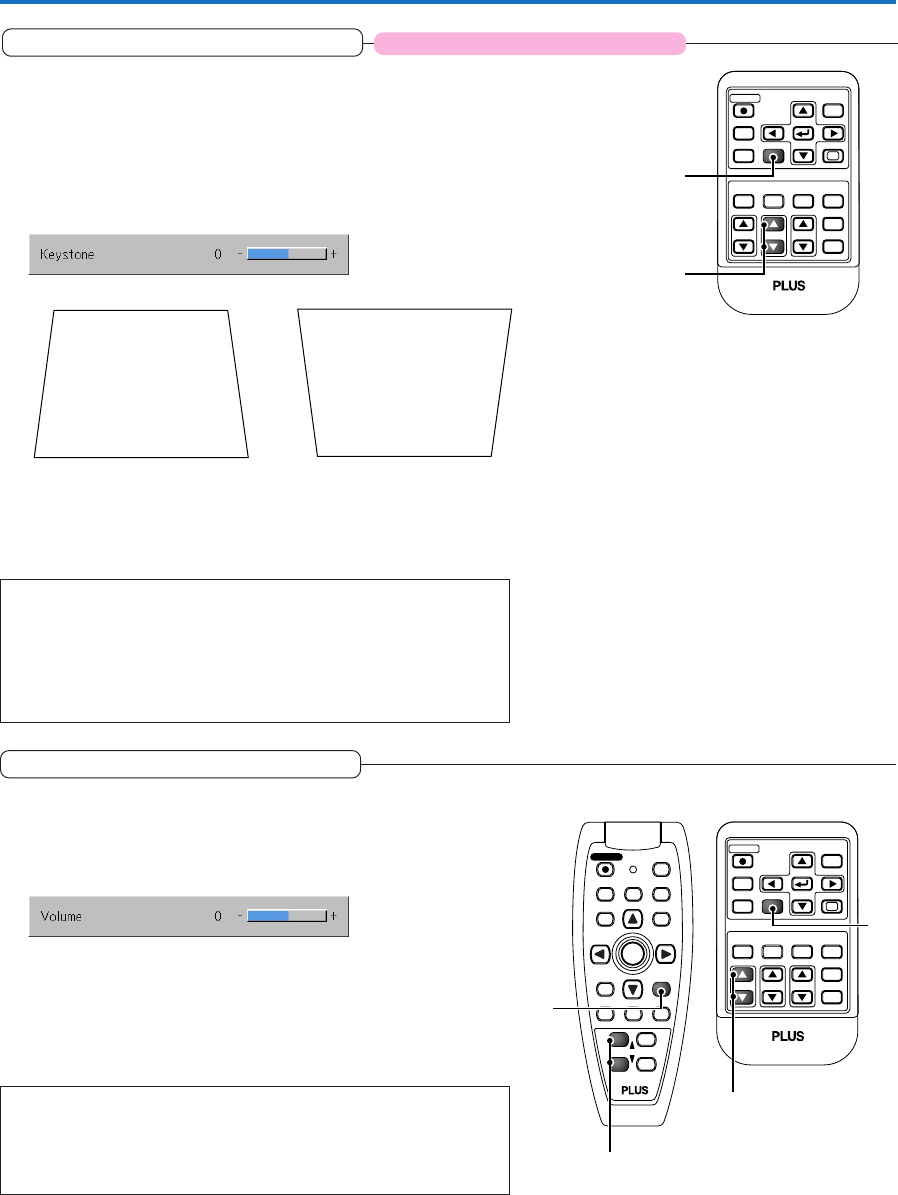

Keystone
Use this to adjust for trapezoidal (keystone) distortion of the pro-
jected image.
Adjustment Method
(1) Press the 왖 or 왔 KSTN button to make the left and right sides
parallel.
The keystone adjustment display appears when one of the buttons is
pressed.
Press the “왔” button. Press the “왖” button.
(2) Press the CANCEL button to immediately close the display.
The display will close when there has not been an operation in about
10 seconds.
Note:
* Keystone adjustment values can be saved. See “Keystone Save” on Page E-
53.
* Screen examples have been drawn in an exaggerated style for the purpose
of description.
* Please note that depending on the projected picture and the projection con-
ditions, it may not be possible to eliminate keystone distortion completely.
General Operation
Adjustment of the Volume
This function adjusts the volume of the built-in speaker.
(1) Press the 왖 or 왔 VOL button to adjust the volume.
The volume adjustment display appears when one of the buttons is
pressed.
(2) Press the CANCEL button to immediately close the display.
The display will close when there has not been an operation in about
10 seconds.
Note:
* Adjustment of the volume will not produce any sound unless an image is
being projected.
* Please make connections to the AUDIO connectors of the projector with the
supplied audio cable.
RGB
STANDBY
VIDEO
FREEZE
MUTE
ECO AUTO
ASPECT
TIMER
KSTN ZOOM
QUICK
MENU
ENTER
Q
1234
VOL
CANCEL
FREEZE
MUTE
LASER
AUTO
TIMER
ZOOM
RGB
VIDEO
R-CLICK/
CANCEL
QUICKMENU
ENTER
STANDBY
Q
2
4
VOL
1
3
(1)
(2)
RGB
STANDBY
VIDEO
FREEZE
MUTE
ECO AUTO
ASPECT
TIMER
VOL ZOOM
QUICK
MENU
ENTER
Q
1234
KSTN
CANCEL
(1)
(2)
For the U5-232 and
U5-132 projectors,
these operations
are possible using
the menu. The
operations are the
same. See E-39,
53.
(1)
(2)
The 왖 button increases the volume and the 왔 button decreases the
volume.
Applicable Projector: U5-112/U5-111
