FEATURES
Seemechanicaldrawingsfordimensions.

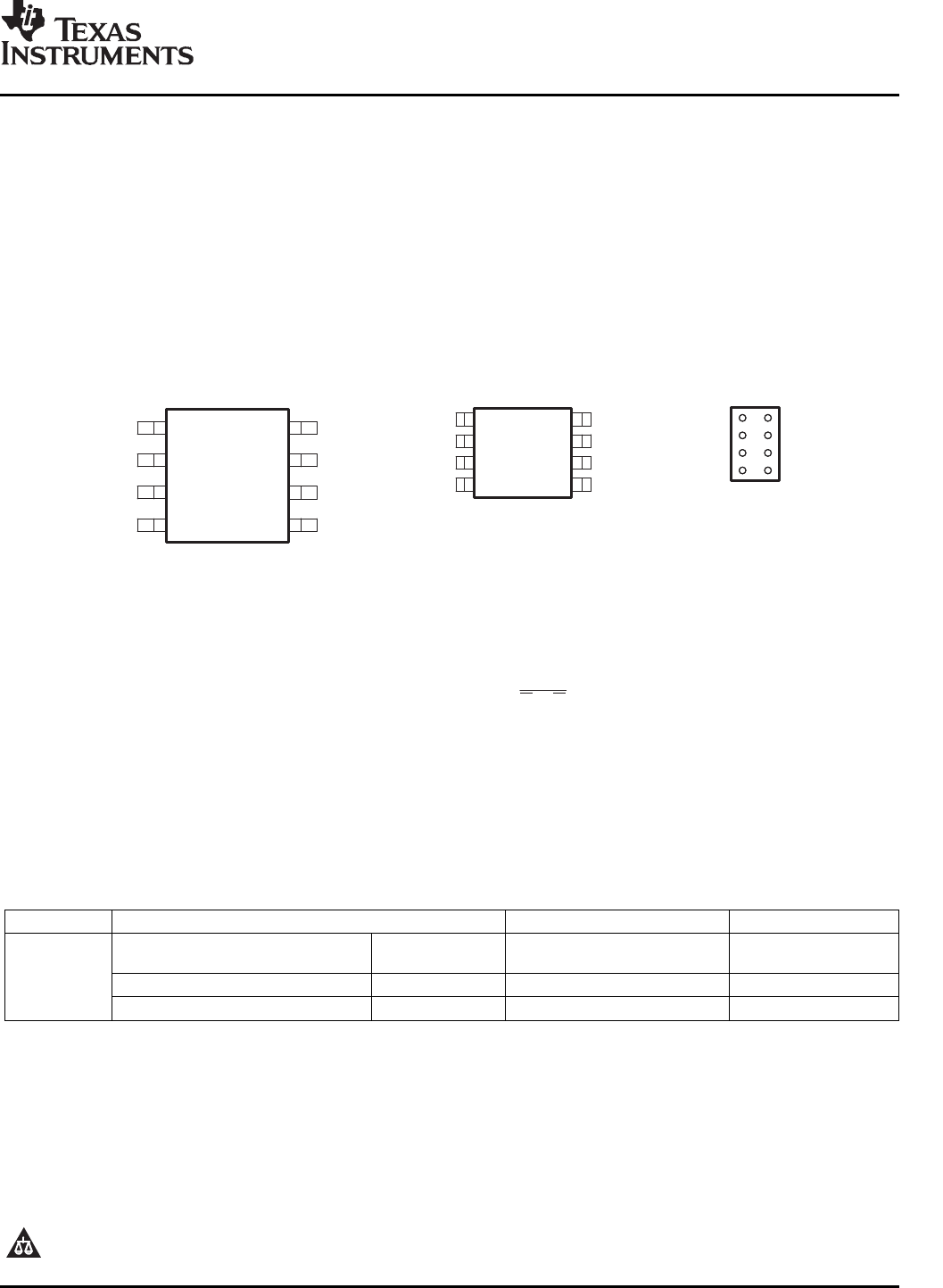

DCTPACKAGE
(TOP VIEW)
DCUPACKAGE
(TOP VIEW)
YZP PACKAGE
(BOTTOMVIEW)
1
V
CC
8
1A
2
7
1B 1Y
3 6
2Y
2B
4
5
GND 2A
3 6
2B2Y
8
1
V
CC
1A
5
GND
4
2A
2
7
1Y1B
GND
5
4
2A
3 6
2B2Y
2
7
1Y1B
8
V
CC
1
1A
DESCRIPTION/ORDERING INFORMATION
The SN74AUC2G08 performs the Boolean function
A • B or Y = A + B
in positive logic.
SN74AUC2G08
DUAL 2-INPUT POSITIVE-AND GATE
SCES477C – AUGUST 2003 – REVISED JANUARY 2007
• Available in the Texas Instruments • Low Power Consumption, 10- µ A at 1.8 V
NanoFree™ Package
• ± 8-mA Output Drive at 1.8 V
• Optimized for 1.8-V Operation and Is 3.6-V I/O
• Latch-Up Performance Exceeds 100 mA Per
Tolerant to Support Mixed-Mode Signal
JESD 78, Class II
Operation
• ESD Protection Exceeds JESD 22
• I
off
Supports Partial-Power-Down Mode
– 2000-V Human-Body Model (A114-A)
Operation
– 200-V Machine Model (A115-A)
• Sub-1-V Operable
– 1000-V Charged-Device Model (C101)
• Max t
pd
of 1.5 ns at 1.8 V
This dual 2-input positive-AND gate is operational at 0.8-V to 2.7-V V
CC
, but is designed specifically for 1.65-V to
1.95-V V
CC
operation.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the
package.
This device is fully specified for partial-power-down applications using I
off
. The I
off
circuitry disables the outputs,
preventing damaging current backflow through the device when it is powered down.
For more information about AUC Little Logic devices, please refer to the TI application report, Applications of
Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.
ORDERING INFORMATION
T
A
PACKAGE
(1)
ORDERABLE PART NUMBER TOP-SIDE MARKING
(2)
NanoFree™ – WCSP (DSBGA)
Reel of 3000 SN74AUC2G08YZPR _ _ _UE_
0.23-mm Large Bump – YZP (Pb-free)
–40 ° C to 85 ° C
SSOP – DCT Reel of 3000 SN74AUC2G08DCTR U08_ _ _
VSSOP – DCU Reel of 3000 SN74AUC2G08DCUR U08_
(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.
(2) DCT: The actual top-side marking has three additional characters that designate the year, month, and assembly/test site.
DCU: The actual top-side marking has one additional character that designates the assembly/test site.
YZP: The actual top-side marking has three preceding characters to denote year, month, and sequence code, and one following
character to designate the assembly/test site. Pin 1 identifier indicates solder-bump composition (1 = SnPb, • = Pb-free).
