SLVS919A –JANUARY 2009–REVISED JULY 2010

0.5A, 60V STEP DOWN

SWIFT™ DC/DC CONVERTER WITH ECO-MODE™

Check for Samples: TPS54060

FEATURES

• 0.8-V Internal Voltage Reference

• 3.5V to 60V Input Voltage Range

• MSOP10 and 3mm x 3mm SON Package With

PowerPAD™

• 200-mΩ High-Side MOSFET

• Supported by SwitcherPro™ Software Tool

• High Efficiency at Light Loads with a Pulse

(http://focus.ti.com/docs/toolsw/folders/print/s

Skipping Eco-Mode™

witcherpro.html)

• 116mA Operating Quiescent Current

• For SWIFT™ Documentation, See the TI

• 1.3mA Shutdown Current

Website at http://www.ti.com/swift

• 100kHz to 2.5MHz Switching Frequency

• Synchronizes to External Clock

APPLICATIONS

• Adjustable Slow Start/Sequencing

• 12-V, 24-V and 48-V Industrial and Commercial

Low Power Systems

• UV and OV Power Good Output

• Aftermarket Auto Accessories: Video, GPS,

• Adjustable UVLO Voltage and Hysteresis

Entertainment

DESCRIPTION

The TPS54060 device is a 60V, 0.5A, step down regulator with an integrated high side MOSFET. Current mode

control provides simple external compensation and flexible component selection. A low ripple pulse skip mode

reduces the no load, regulated output supply current to 116mA. Using the enable pin, shutdown supply current is

reduced to 1.3mA, when the enable pin is low.

Under voltage lockout is internally set at 2.5V, but can be increased using the enable pin. The output voltage

startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open

drain power good signal indicates the output is within 93% to 107% of its nominal voltage.

A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold

back and thermal shutdown protects the part during an overload condition.

The TPS54060 is available in 10 pin thermally enhanced MSOP and 10 pin 3mm x 3mm SON PowerPad™

packages.

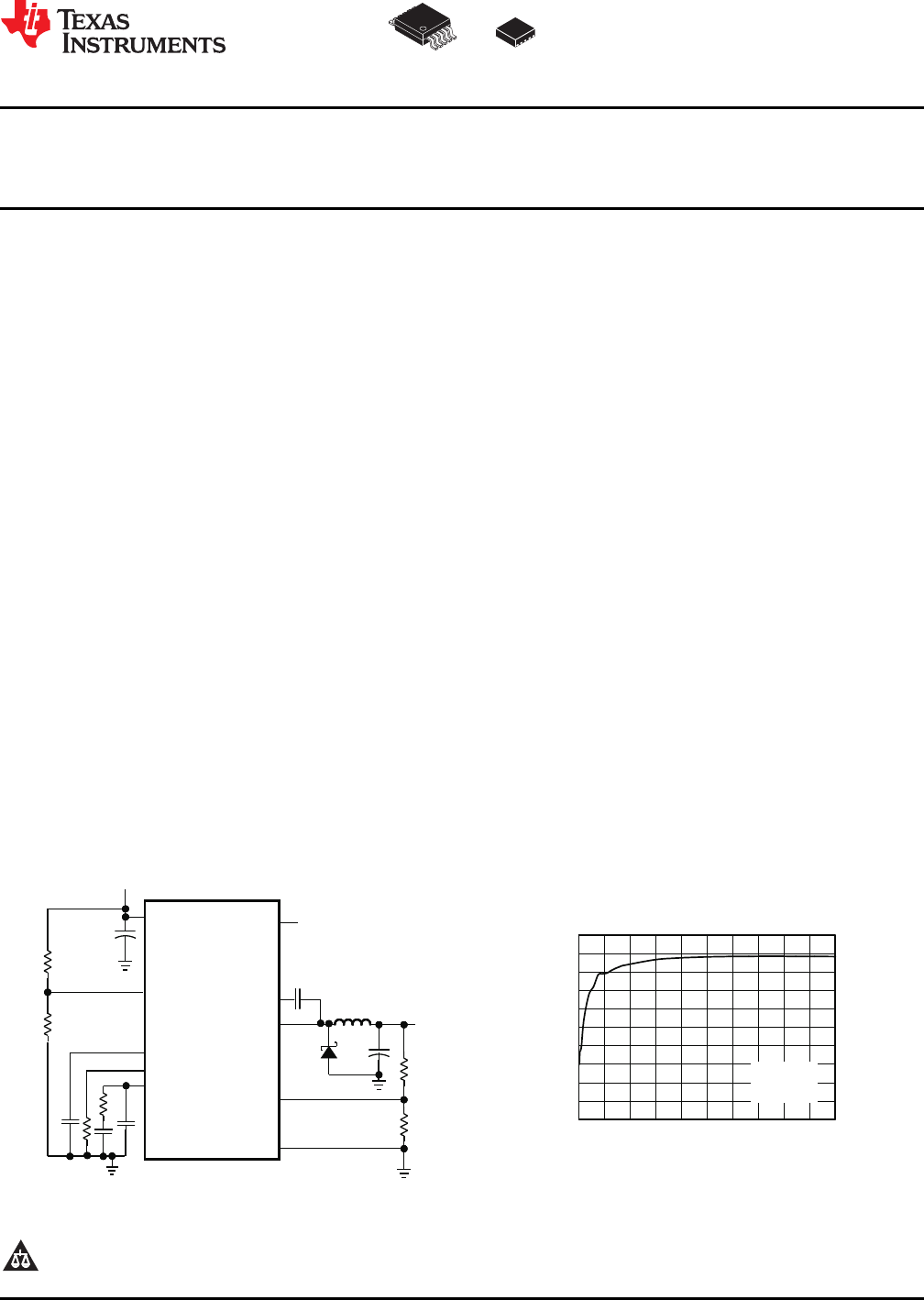

SIMPLIFIED SCHEMATIC

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas

Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2Eco-Mode, PowerPAD, SwitcherPro, SWIFT are trademarks of Texas Instruments.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.

Summary of content (51 pages)

PAGE 1
TPS54060 DGQ DRC www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 0.5A, 60V STEP DOWN SWIFT™ DC/DC CONVERTER WITH ECO-MODE™ Check for Samples: TPS54060 FEATURES 1 • • • 2 • • • • • • • 3.5V to 60V Input Voltage Range 200-mΩ High-Side MOSFET High Efficiency at Light Loads with a Pulse Skipping Eco-Mode™ 116mA Operating Quiescent Current 1.3mA Shutdown Current 100kHz to 2.
PAGE 2
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure.
PAGE 3
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 THERMAL INFORMATION TPS54060 THERMAL METRIC (1) (2) DGQ (10 PINS) qJA Junction-to-ambient thermal resistance (standard board) qJA Junction-to-ambient thermal resistance (custom board) 62.5 40 57 56.5 yJT yJB Junction-to-top characterization parameter 1.7 0.6 Junction-to-board characterization parameter 20.1 qJCtop 7.
PAGE 4
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com ELECTRICAL CHARACTERISTICS (continued) TJ = –40°C to 150°C, VIN = 3.5 to 60V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 0.6 0.
PAGE 5
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DEVICE INFORMATION PIN CONFIGURATION DRC PACKAGE (TOP VIEW) DGQ PACKAGE (TOP VIEW) BOOT VIN EN SS/TR RT/CLK 10 1 2 3 4 Thermal Pad (11) 5 9 8 7 6 PH GND COMP VSENSE PWRGD BOOT VIN EN SS/TR RT/CLK 1 10 PH 2 9 GND COMP VSENSE PWRGD 3 4 5 Thermal Pad (11) 8 7 6 PIN FUNCTIONS PIN I/O DESCRIPTION NAME NO. BOOT 1 O A bootstrap capacitor is required between BOOT and PH.
PAGE 6
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.
PAGE 7
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 TYPICAL CHARACTERISTICS VOLTAGE REFERENCE vs JUNCTION TEMPERATURE 0.816 500 VI = 12 V VI = 12 V 375 Vref - Voltage Reference - V RDSON - Static Drain-Source On-State Resistance - mW ON RESISTANCE vs JUNCTION TEMPERATURE BOOT-PH = 3 V 250 BOOT-PH = 6 V 125 0 -50 0.808 0.800 0.792 0.784 -50 -25 0 25 50 75 100 TJ - Junction Temperature - °C 125 -25 0 150 Figure 1.
PAGE 8
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com TYPICAL CHARACTERISTICS (continued) EA TRANSCONDUCTANCE DURING SLOW START vs JUNCTION TEMPERATURE EA TRANSCONDUCTANCE vs JUNCTION TEMPERATURE 150 40 VI = 12 V VI = 12 V 130 110 gm - mA/V gm - mA/V 30 90 20 70 10 -50 -25 0 25 50 75 100 TJ - Junction Temperature - °C 125 50 -50 150 -25 0 25 50 75 100 125 150 TJ - Junction Temperature - °C Figure 7. Figure 8.
PAGE 9
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 TYPICAL CHARACTERISTICS (continued) SS/TR DISCHARGE CURRENT vs JUNCTION TEMPERATURE SWITCHING FREQUENCY vs VSENSE 120 100 VI = 12 V VI = 12 V, TJ = 25°C 80 % of Nominal fsw II(SS/TR) - mA 115 110 60 40 105 20 100 -50 0 -25 0 25 50 75 100 TJ - Junction Temperature - °C 125 150 0 SHUTDOWN SUPPLY CURRENT vs INPUT VOLTAGE (Vin) 2 TJ = 25°C I(VIN) - mA 1.5 1 0.5 1 0.
PAGE 10
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com TYPICAL CHARACTERISTICS (continued) PWRGD ON RESISTANCE vs JUNCTION TEMPERATURE PWRGD THRESHOLD vs JUNCTION TEMPERATURE 115 100 VI = 12 V PWRGD Threshold - % of Vref VI = 12 V RDSON - W 80 60 40 20 0 -50 VSENSE Rising 110 VSENSE Falling 105 100 VSENSE Rising 95 VSENSE Falling 90 -25 0 50 25 75 100 125 85 -50 150 -25 0 125 150 Figure 20.
PAGE 11
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 OVERVIEW The TPS54060 device is a 60-V, 0.5-A, step-down (buck) regulator with an integrated high side n-channel MOSFET. To improve performance during line and load transients the device implements a constant frequency, current mode control which reduces output capacitance and simplifies external frequency compensation design.
PAGE 12
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION Fixed Frequency PWM Control The TPS54060 uses an adjustable fixed frequency, peak current mode control. The output voltage is compared through external resistors on the VSENSE pin to an internal voltage reference by an error amplifier which drives the COMP pin. An internal oscillator initiates the turn on of the high side power switch. The error amplifier output is compared to the high side power switch current.
PAGE 13
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) VOUT(ac) IL PH Figure 25. Pulse Skip Mode Operation Low Dropout Operation and Bootstrap Voltage (BOOT) The TPS54060 has an integrated boot regulator, and requires a small ceramic capacitor between the BOOT and PH pins to provide the gate drive voltage for the high side MOSFET. The BOOT capacitor is refreshed when the high side MOSFET is off and the low side diode conducts.
PAGE 14
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) Attention must be taken in maximum duty cycle applications which experience extended time periods with light loads or no load. When the voltage across the BOOT capacitor falls below the 2.1V UVLO threshold, the high side MOSFET is turned off, but there may not be enough inductor current to pull the PH pin down to recharge the BOOT capacitor.
PAGE 15
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) Adjusting the Output Voltage The output voltage is set with a resistor divider from the output node to the VSENSE pin. It is recommended to use 1% tolerance or better divider resistors. Start with a 10 kΩ for the R2 resistor and use the Equation 1 to calculate R1. To improve efficiency at light loads consider using larger value resistors.
PAGE 16
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) TPS54060 VIN R1 Ihys I1 0.9 mA 2.9 mA + R2 EN 1.25 V R3 - VOUT Figure 29.
PAGE 17
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) Slow Start/Tracking Pin (SS/TR) The TPS54060 effectively uses the lower voltage of the internal voltage reference or the SS/TR pin voltage as the power-supply's reference voltage and regulates the output accordingly. A capacitor on the SS/TR pin to ground implements a slow start time. The TPS54060 has an internal pull-up current source of 2mA that charges the external slow start capacitor.
PAGE 18
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) Sequencing Many of the common power supply sequencing methods can be implemented using the SS/TR, EN and PWRGD pins. The sequential method can be implemented using an open drain output of a power on reset pin of another device. The sequential method is illustrated in Figure 31 using two TPS54060 devices.
PAGE 19
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) TPS54060 EN VOUT 1 SS/TR PWRGD TPS54060 VOUT 2 EN R1 SS/ TR R2 PWRGD R3 R4 Figure 35. Schematic for Ratiometric and Simultaneous Start-Up Sequence Ratio-metric and simultaneous power supply sequencing can be implemented by connecting the resistor network of R1 and R2 shown in Figure 35 to the output of the power supply that needs to be tracked or another voltage reference source.
PAGE 20
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) Vout2 + deltaV Vssoffset ´ VREF Iss VREF ´ R1 R2 = Vout2 + deltaV - VREF deltaV = Vout1 - Vout2 R1 > 2800 ´ Vout1 - 180 ´ deltaV R1 = (7) (8) (9) (10) EN EN VOUT1 VOUT1 VOUT2 Figure 36. Ratio-metric Startup with Tracking Resistors VOUT2 Figure 37. Ratiometric Startup with Tracking Resistors EN VOUT1 VOUT2 Figure 38.
PAGE 21
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) Constant Switching Frequency and Timing Resistor (RT/CLK Pin) The switching frequency of the TPS54060 is adjustable over a wide range from approximately 100kHz to 2500kHz by placing a resistor on the RT/CLK pin. The RT/CLK pin voltage is typically 0.5V and must have a resistor to ground to set the switching frequency.
PAGE 22
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) Selecting the Switching Frequency The switching frequency that is selected should be the lower value of the two equations, Equation 12 and Equation 13. Equation 12 is the maximum switching frequency limitation set by the minimum controllable on time. Setting the switching frequency above this value will cause the regulator to skip switching pulses.
PAGE 23
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) How to Interface to RT/CLK Pin The RT/CLK pin can be used to synchronize the regulator to an external system clock. To implement the synchronization feature connect a square wave to the RT/CLK pin through the circuit network shown in Figure 42. The square wave amplitude must transition lower than 0.5V and higher than 2.
PAGE 24
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) PH PH EXT EXT IL IL Figure 43. Plot of Synchronizing in ccm Figure 44. Plot of Synchronizing in dcm PH EXT IL Figure 45. Plot of Synchronizing in PSM Power Good (PWRGD Pin) The PWRGD pin is an open drain output. Once the VSENSE pin is between 94% and 107% of the internal voltage reference the PWRGD pin is de-asserted and the pin floats.
PAGE 25
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) Overvoltage Transient Protection The TPS54060 incorporates an overvoltage transient protection (OVTP) circuit to minimize voltage overshoot when recovering from output fault conditions or strong unload transients on power supply designs with low value output capacitance.
PAGE 26
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com DETAILED DESCRIPTION (continued) Simple Small Signal Model for Peak Current Mode Control Figure 47 describes a simple small signal model that can be used to understand how to design the frequency compensation. The TPS54060 power stage can be approximated to a voltage-controlled current source (duty cycle modulator) supplying current to the output capacitor and load resistor.
PAGE 27
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 DETAILED DESCRIPTION (continued) Equation 18 through Equation 27 are provided as a reference for those who prefer to compensate using the preferred methods. Those who prefer to use prescribed method use the method outlined in the application section or use switched information. VO R1 VSENSE gmea Type 2A COMP Type 2B Type 1 Vref R2 RO R3 CO C2 C1 R3 C2 C1 Figure 48.
PAGE 28
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.
PAGE 29
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 APPLICATION INFORMATION Design Guide — Step-By-Step Design Procedure This example details the design of a high frequency switching regulator design using ceramic output capacitors. A few parameters must be known in order to start the design process. These parameters are typically determined at the system level. For this example, we will start with the following known parameters: Output Voltage 3.3 V Transient Response 0 to 1.
PAGE 30
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com Output Inductor Selection (LO) To calculate the minimum value of the output inductor, use Equation 28. KIND is a coefficient that represents the amount of inductor ripple current relative to the maximum output current. The inductor ripple current will be filtered by the output capacitor.
PAGE 31
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 to see the change in load current and output voltage and adjust the duty cycle to react to the change. The output capacitor must be sized to supply the extra current to the load until the control loop responds to the load change. The output capacitance must be large enough to supply the difference in current for 2 clock cycles while only allowing a tolerable amount of droop in the output voltage.
PAGE 32
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com V RESR < ORIPPLE IRIPPLE Icorms = (35) Vout ´ (Vin max - Vout) 12 ´ Vin max ´ Lo ´ ¦ sw (36) Catch Diode The TPS54060 requires an external catch diode between the PH pin and GND. The selected diode must have a reverse voltage rating equal to or greater than Vinmax. The peak current rating of the diode must be greater than the maximum inductor current. The diode should also have a low forward voltage.
PAGE 33
TPS54060 www.ti.com Icirms = Iout ´ SLVS919A – JANUARY 2009 – REVISED JULY 2010 Vout ´ Vin min (Vin min - Vout ) Vin min (38) Iout max ´ 0.25 ΔVin = Cin ´ ¦ sw (39) Table 1. Capacitor Types VENDOR VALUE (mF) 1.0 to 2.2 1.0 to 4.7 Murata 1.0 1.0 to 2.2 1.0 10 1.8 1.0 to 1.2 Vishay 1.0 to 3.9 1.0 to 1.8 1.0 to 2.2 TDK 1.5 to 6.8 1.0. to 2.2 1.0 to 3.3 1.0 to 4.7 AVX 1.0 1.0 to 4.7 1.0 to 2.
PAGE 34
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com Under Voltage Lock Out Set Point The Under Voltage Lock Out (UVLO) can be adjusted using an external voltage divider on the EN pin of the TPS54060. The UVLO has two thresholds, one for power up when the input voltage is rising and one for power down or brown outs when the input voltage is falling. For the example design, the supply should turn on and start switching once the input voltage increases above 8.9V (enabled).
PAGE 35
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 æ 2 ´ p ´ fco ´ Cout R4 = ç gmps è ö ö æ Vout ÷ ÷´ç ´ V gmea ø è ref ø (45) 1 C7 = 2 ´ p ´ R4 ´ f p m od (46) Use the larger value of Equation 47 and Equation 48 to calculate the C8, to set the compensation pole. Equation 48 yields 8.7pF so the nearest standard of 10pF is used.
PAGE 36
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com Figure 55. Output Ripple, PSM Figure 56. Input Ripple CCM 100 90 80 Efficiency - % 70 VIN = 12 V 60 VIN = 24 V VIN = 18 V VIN = 34 V 50 VIN = 42 40 30 20 10 VOUT = 3.3 V 0 0 Figure 57. Input Ripple DCM 0.05 0.10 0.15 0.20 0.25 0.30 0.35 IO - Output Current - A 0.40 0.45 0.50 Figure 58.
PAGE 37
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 0.1 0.1 0.06 0.06 0.04 0.04 0.02 0 -0.02 0.02 0 -0.02 -0.04 -0.04 -0.06 -0.06 -0.08 -0.08 -0.1 0.00 IO = 0.25 A 0.08 VI = 34 V Regulation (%) Regulation (%) 0.08 -0.1 0.25 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 10 15 20 25 30 35 40 45 50 55 60 VI - Input Voltage - V Load Current - A Figure 61. Regulation vs Load Current Figure 62.
PAGE 38
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com Power Dissipation Estimate The following formulas show how to estimate the IC power dissipation under continuous conduction mode (CCM) operation. These equations should not be used if the device is working in discontinuous conduction mode (DCM). The power dissipation of the IC includes conduction loss (Pcon), switching loss (Psw), gate drive loss (Pgd) and supply current (Pq). Vout Pcon = Io2 ´ RDS(on) ´ Vin (49) Psw = Vin 2 ´ ¦ sw ´ lo ´ 0.
PAGE 39
TPS54060 www.ti.com SLVS919A – JANUARY 2009 – REVISED JULY 2010 Layout Layout is a critical portion of good power supply design. There are several signals paths that conduct fast changing currents or voltages that can interact with stray inductance or parasitic capacitance to generate noise or degrade the power supplies performance. To help eliminate these problems, the VIN pin should be bypassed to ground with a low ESR ceramic bypass capacitor with X5R or X7R dielectric.
PAGE 40
TPS54060 SLVS919A – JANUARY 2009 – REVISED JULY 2010 www.ti.com VIN + Cin Cboot Lo Cd PH BOOT VIN GND R1 + GND Co R2 TPS54060 VOUT VSENSE EN COMP SS/TR Rcomp RT/CLK Css Czero RT Cpole Figure 64. Inverting Power Supply from the SLVA317 Application Note VOPOS + VIN Copos + Cin Cboot BOOT VIN GND PH Lo Cd R1 GND + Coneg R2 TPS54060 VONEG VSENSE EN COMP SS/TR Rcomp RT/CLK Css RT Czero Cpole Figure 65.
PAGE 41
PACKAGE OPTION ADDENDUM www.ti.
PAGE 42
PACKAGE OPTION ADDENDUM www.ti.com 18-Oct-2013 Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties.
PAGE 43
PACKAGE MATERIALS INFORMATION www.ti.com 12-Feb-2013 TAPE AND REEL INFORMATION *All dimensions are nominal Device Package Package Pins Type Drawing SPQ Reel Reel A0 Diameter Width (mm) (mm) W1 (mm) B0 (mm) K0 (mm) P1 (mm) W Pin1 (mm) Quadrant TPS54060DGQR MSOPPower PAD DGQ 10 2500 330.0 12.4 5.3 3.4 1.4 8.0 12.0 Q1 TPS54060DRCR SON DRC 10 3000 330.0 12.4 3.3 3.3 1.0 8.0 12.0 Q2 TPS54060DRCT SON DRC 10 250 180.0 12.4 3.3 3.3 1.0 8.0 12.
PAGE 44
PACKAGE MATERIALS INFORMATION www.ti.com 12-Feb-2013 *All dimensions are nominal Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm) TPS54060DGQR MSOP-PowerPAD DGQ 10 2500 364.0 364.0 27.0 TPS54060DRCR SON DRC 10 3000 346.0 346.0 35.0 TPS54060DRCT SON DRC 10 250 203.0 203.0 35.
PAGE 45
PAGE 46
PAGE 47
PAGE 48
PAGE 49
PAGE 50
PAGE 51
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
