Datasheet

www.ti.com
FEATURES

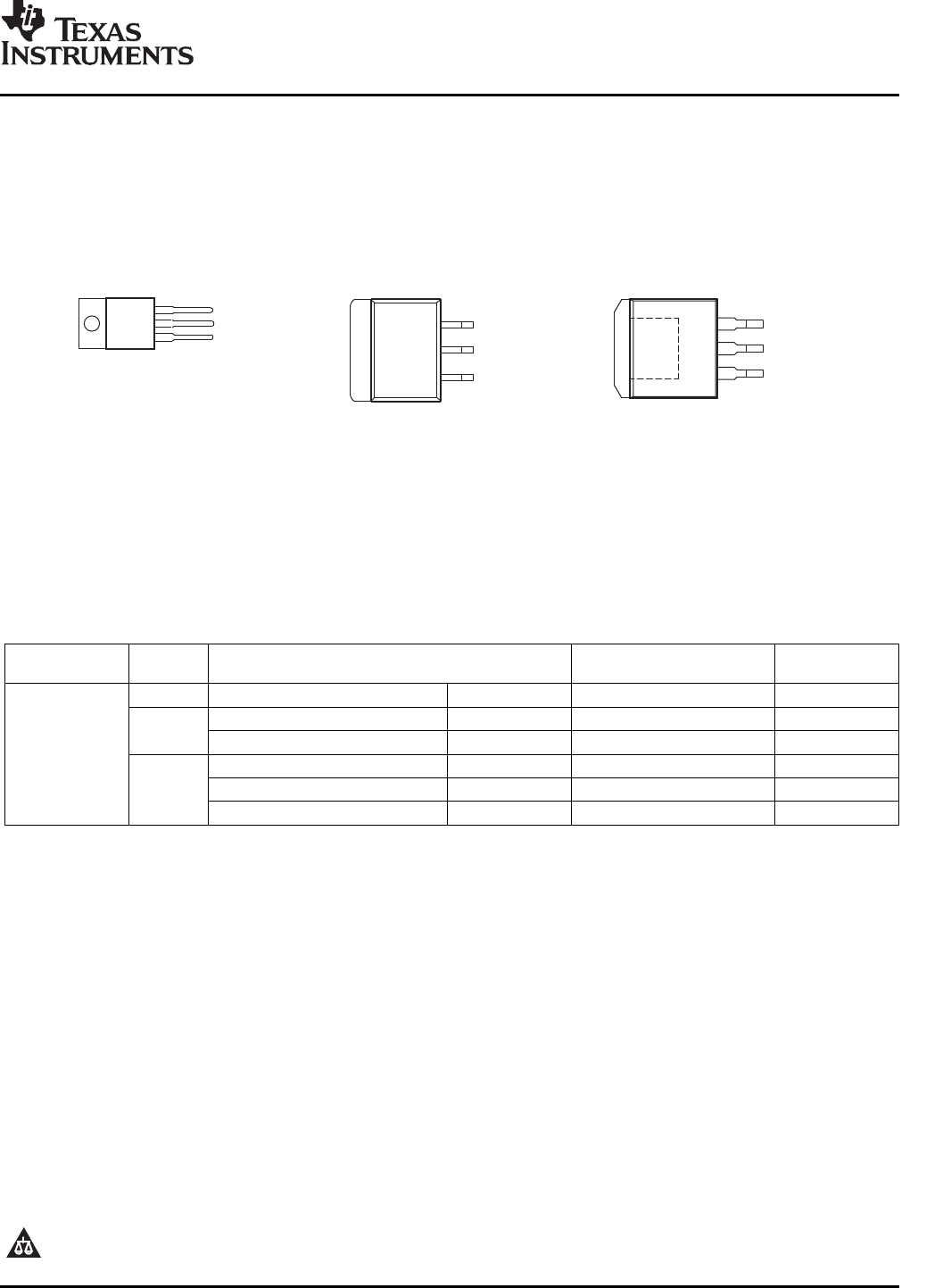

KTE (PowerFLEX ) PACKAGE
(TOP VIEW)

OUTPUT
INPUT
COMMON
INPUT
INPUT
OUTPUT
KCS (TO-220) PACKAGE
(TOP VIEW)
COMMON
INPUT
INPUT
KTT (TO-263) PACKAGE
(TOP VIEW)
OUTPUT
INPUT
COMMON
DESCRIPTION/ORDERING INFORMATION
µ A7900 SERIES
NEGATIVE-VOLTAGE REGULATORS
SLVS058H – JUNE 1976 – REVISED NOVEMBER 2006
• 3-Terminal Regulators • High Power-Dissipation Capability
• Output Current up to 1.5 A • Internal Short-Circuit Current Limiting
• No External Components • Output Transistor Safe-Area Compensation
• Internal Thermal-Overload Protection
This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement Series
µ A7900 in a wide range of applications. These applications include on-card regulation for elimination of noise
and distribution problems associated with single-point regulation. Each of these regulators can deliver up to
1.5 A of output current. The internal current limiting and thermal shutdown features of these regulators
essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be
used with external components to obtain adjustable output voltages and currents and also as the power-pass
element in precision regulators.
ORDERING INFORMATION
(1)
ORDERABLE PART TOP-SIDE
T
J
V
O(NOM)
PACKAGE
(2)
NUMBER MARKING
–12 V TO-220, short shoulder – KCS Tube of 50 UA7912CKCS UA7912C
PowerFLEX™ – KTE Reel of 2000 UA7908CKTER UA7908C
–8 V
TO-220, short shoulder – KCS Tube of 50 UA7908CKCS UA7908C
0 ° C to 125 ° C
PowerFLEX – KTE Reel of 2000 UA7905CKTER UA7905C
–5 V TO-220, short shoulder – KCS Tube of 50 UA7905CKCS UA7905C
TO-263 – KTT Reel of 500 UA7905CKTTR UA7905C
(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com .
(2) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package .
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerFLEX, PowerPAD are trademarks of Texas Instruments.
PRODUCTION DATA information is current as of publication date.
Copyright © 1976–2006, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
