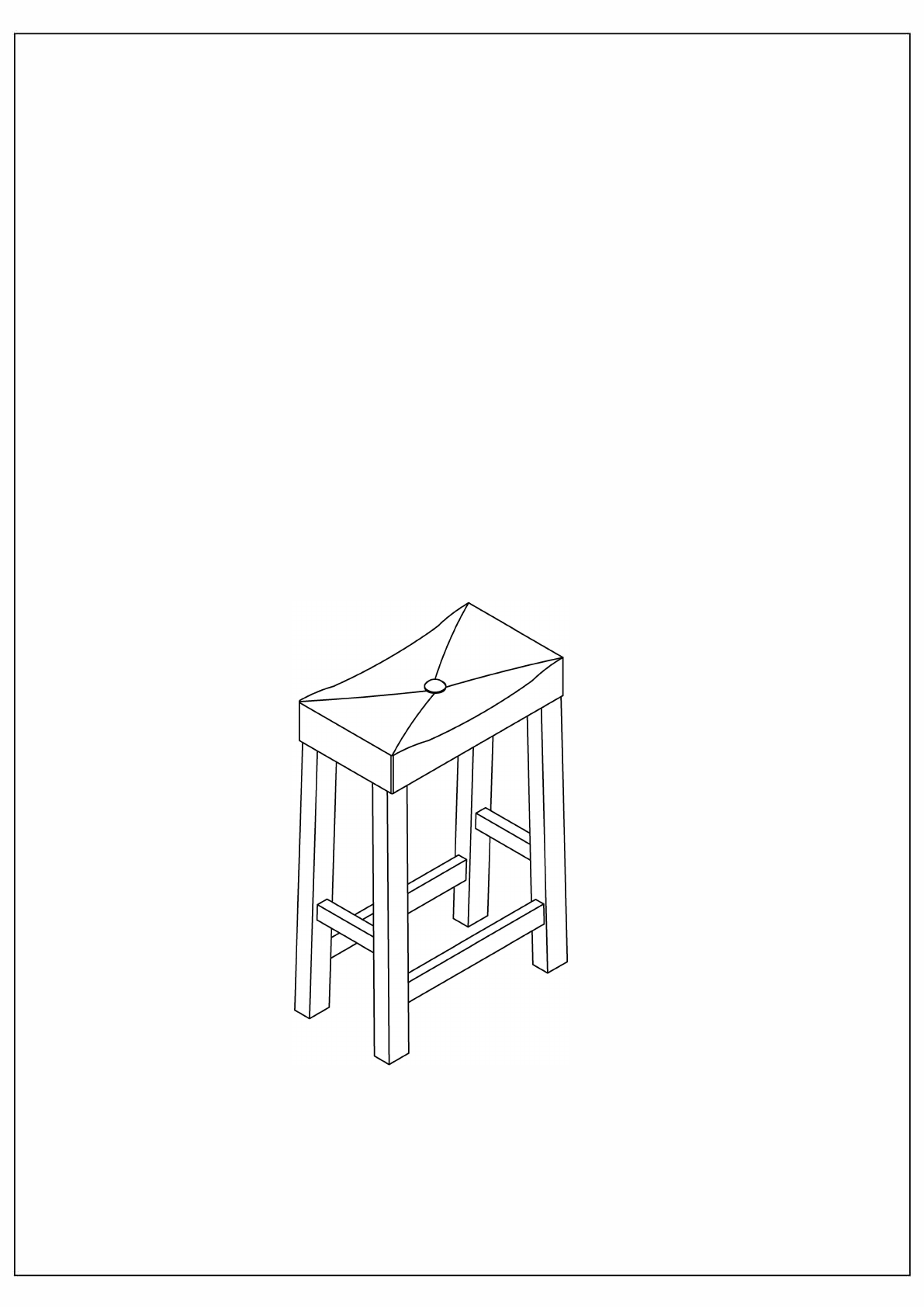

24" Upholstered Saddle Seat Bar Stool
4" UPHOLSTERED SADDLE SEAT BAR STOOL Assembly Instructions HARDWARE LIST: PART LIST: Part# Drawing Part Name 1 Seat Cushion 2 Leg ( ·• 3 Leg ( ·• 4 Short Side Stretcher 5 Long Front / Rear Stretcher �\� :!=i) .. � � "' • QTY Part# 2PCS A Flat Washer ($18*1.
Step 1. CHAIR LEGS ASSEMBLY 1A. Add a small amount of glue inside the large holes. 1 B. Insert Short Side Stretcher (4) with wood dowel aligned on the upper hole on the side of leg. 1 C. Align another leg (2) to the stretcher. 1 D. Insert Wood Screws (D) into predrilled holes at both ends of the stretcher. 1 E. Tighten Wood Screws (D) with Phillips Head screwdriver (not supplied). 1 F. Repeat same step for the other side of legs.
Step 2. FRONT STRETCHER ASSEMBLY 2A. Add a small amount of glue inside the large holes. 2B. Insert Long Front/Rear Stretchers (5) with wood dowels aligned with the lower holes into one of the completed sides. 2C. Attach remaining side to the other end of the Long Front/Rear Stretchers (5) with wood dowels aligned with the lower holes.
Step 3. CUSHION SEAT ASSEMBLY 3A. Place seat cushion (1) upside down on a clean cloth. 38. Slowly insert legs into the bottom frame of seat cushion. 3C. Insert Bolt (C) with Spring Washer (B) and Flat Washer (A) through seat frame into legs. 3D. Turn bolts clockwise with Allen Wrench (E) until tight. 3E. Insert Wood Screws (D) into both ends of Long Front/Rear Stretchers and tighten with Phillips Head screwdriver (not supplied). � D a§J)=t�� 0 4A B C Repeat steps 1-3 to assemble remaining stool.
