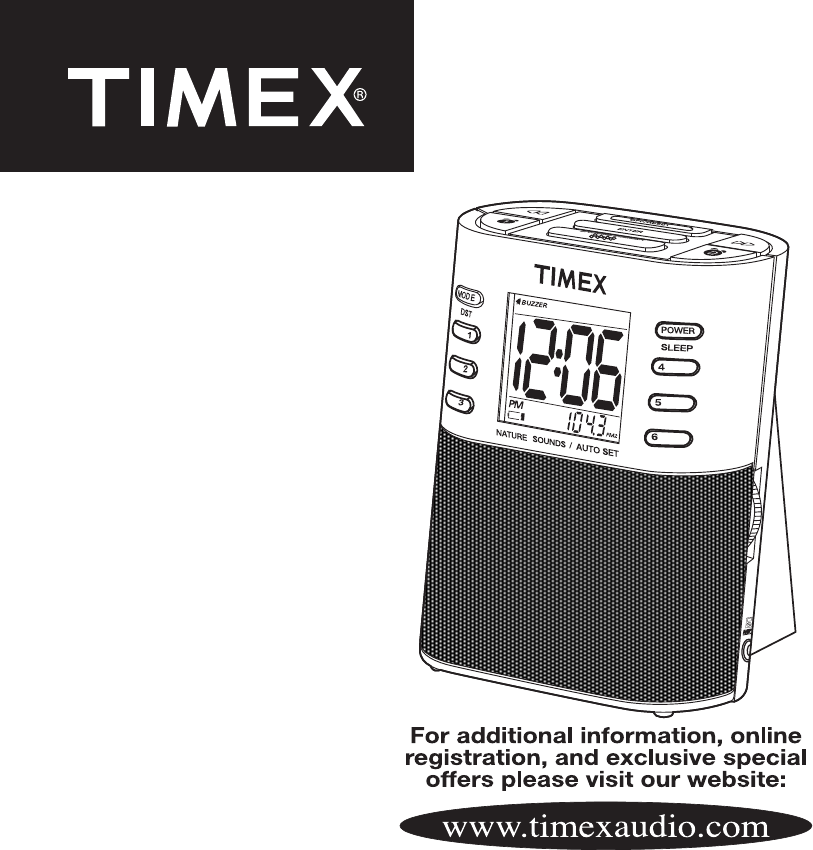

Model T307 Preset Tuning Clock Radio with MP3 line-in and Nature Sounds
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK OF UNIT. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
A Consumer Guide to Product Safety IMPORTANT SAFETY INSTRUCTIONS This unit has been designed and manufactured to assure your personal safety. Improper use can result in potential electrical shock or fire hazards. Please read all the safety and operating instructions carefully before installation and use. Keep these instructions handy for future reference. Take special note, adhere to all warning, and always follow the instructions on the unit and in the instruction and service manuals. 1.
Installation and Maintenance Installation 1. Remove the unit and all packing materials from the carton. You should save packing materials in case unit needs to be returned for service. If you do not wish to save the materials, please dispose of them properly. 2. Place the unit on a stable, level surface, close to an AC outlet, out of direct sunlight, and away from sources of dust, dirt, heat, water, moisture, vibration, and strong magnetic fields. 3.
Controls and Indicators TOP VIEW BACK VIEW 8 Time Zone Button 3 Off/Reset Button 9 Date Set / 7-5-2 Button 4 Enter Button 1 Reverse Button J Time Set Button 5 Snooze/Dimmer Bar 6 Forward Button L Mode/DST Button 2 Radio Alarm 1 Button K Sleep Volume Button N Power/ Sleep Button 7 Nature Sound/ Buzzer Alarm Button M Memory Set 1-6 Buttons O Volume Thumbwheel P AUX Jack SIDE VIEW FRONT VIEW 5
LCD Display with Indicators 7-5-2 Alarm Settings Sound Alarm Indicator MP3 Line-in Indicator Radio Alarm Indicator Daylight-Saving Time Indicator Clock Sleep Timer PM Indicator Radio Band Indicator Battery Low Indicator Radio Frequency / Calendar Display Sleep Volume Indicator 6
Auto-Set and Manual Time and Date Settings Auto-Set Time and Date Settings This model is equipped with the Auto-Set feature, meaning that the time and date have been programmed at the factory and will already be set when you first plug the model in. Auto-Set will automatically adjust the time and date settings for daylight-saving time and leap years. Auto-Set is programmed for Eastern Standard Time; if you do not live in this time zone, you can easily switch the setting to one of six other time zones. 1.
Operating the Dual Alarm System This clock radio features a dual alarm system, with two alarms that can be operated independently. The alarms can be set to wake two people at different times, or to have a main alarm and a backup. One alarm features your choice of radio stations as an alarm wake sound, while the second features a nature sound or buzzer as an alarm wake sound. You can set the radio alarm, the nature sound/buzzer alarm, or both alarms. Setting the Alarm 1 for AM/FM Radio 1.
Operating the Dual Alarm System (Continued) Activating the Alarms 1. To activate the radio alarm, make sure that the Radio Alarm Indicator appears on the display. If it does not, press the 2 Radio Alarm 1 Button once so that it does. As long as the indicator appears, the alarm will sound at the set time and days. 2. To activate the nature sounds/buzzer alarm, make sure that the Sounds Alarm Indicator appears on the display.
Listening and Sleeping to the Radio Operating the Radio 1. Press the N Power/Sleep Button once to turn on the radio. Note: If the N Power/Sleep Button is pressed more than once, the unit will enter the sleep mode, with the radio operating on a timer. See Sleeping to the Radio Using the Timer for more information about this feature. 2. Press the L Mode/DST Button to select the AM band or one of the two FM bands. The Radio Band Indicator will show which frequency is in use. 3.
Sleeping to the Radio Using the Timer Note: For more information about playing the radio, see the Listening to the Radio section of this manual. 1. Press the N Power/Sleep Button twice to enter the sleep mode. 2. Continue pressing the N Power/Sleep Button to select a 90-, 60-, 30-, or 15-minute sleep time. When the display shows the desired sleep time, stop pressing the button. The sleep timer setting remains active for approximately ten seconds before returning to the standard clock display.
Limited 90-Day Warranty Information Timex Audio Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase. Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased.
