Installation Manual

-01-
-02- -03-
INSTALLATION INSTRUCTIONS
SPECIFICATION
USB Rating ............................... Two USB ports with total 4 Amps, 5VDC
Wire Terminals .................................................................... #14-#12AWG
Operating Temperature .................................. -4° to 140°F (-20° to 60°C)
USB Compatibility ......USB 1.1/2.0/3.0 devices, including Apple products
Strip Length ............................0.5 inch (Back Wiring), 1 inch (side wiring)
• 2 USB ports with a high-current power of 4 Amps, 5VDC
• Charge devices without an adapter
• Tamper-Resistant Shutters provide compliance with 2011 NEC Code
• Replace a standard duplex receptacle
• Back and side wire for easy installation
• UL listed and FCC Approved
DESCRIPTION
FEATURES
The TOPGREENER TU2154A Charger/Tamper-Resistant Receptacle
offers two USB charging ports and duplex Tamper-Resistant
Receptacles. The TU2154A is able to charge two current electronic
devices simultaneously, including smart phones, tablets, e-readers,
cameras and MP3 players. All you will need is a USB cable to connect
to one of the two USB ports.
 Cafe
 Office
 Kitchen
 Bedroom
 Restaurant
 Meeting Room
 Living Room
 Labs
 Salon
 Hotel
 School
 Library
 Work Station
 Airport
INSTALLATION
SAFETY WARNING : Read and understand these
instructions before installation. This device is
intended for installation in accordance with the
National Electrical Code and local regulations. It
is recommended that a qualified electrician perform
this installation. Make sure to turn off the circuit
breaker or fuse(s) and test that the power is off
before wiring the device.

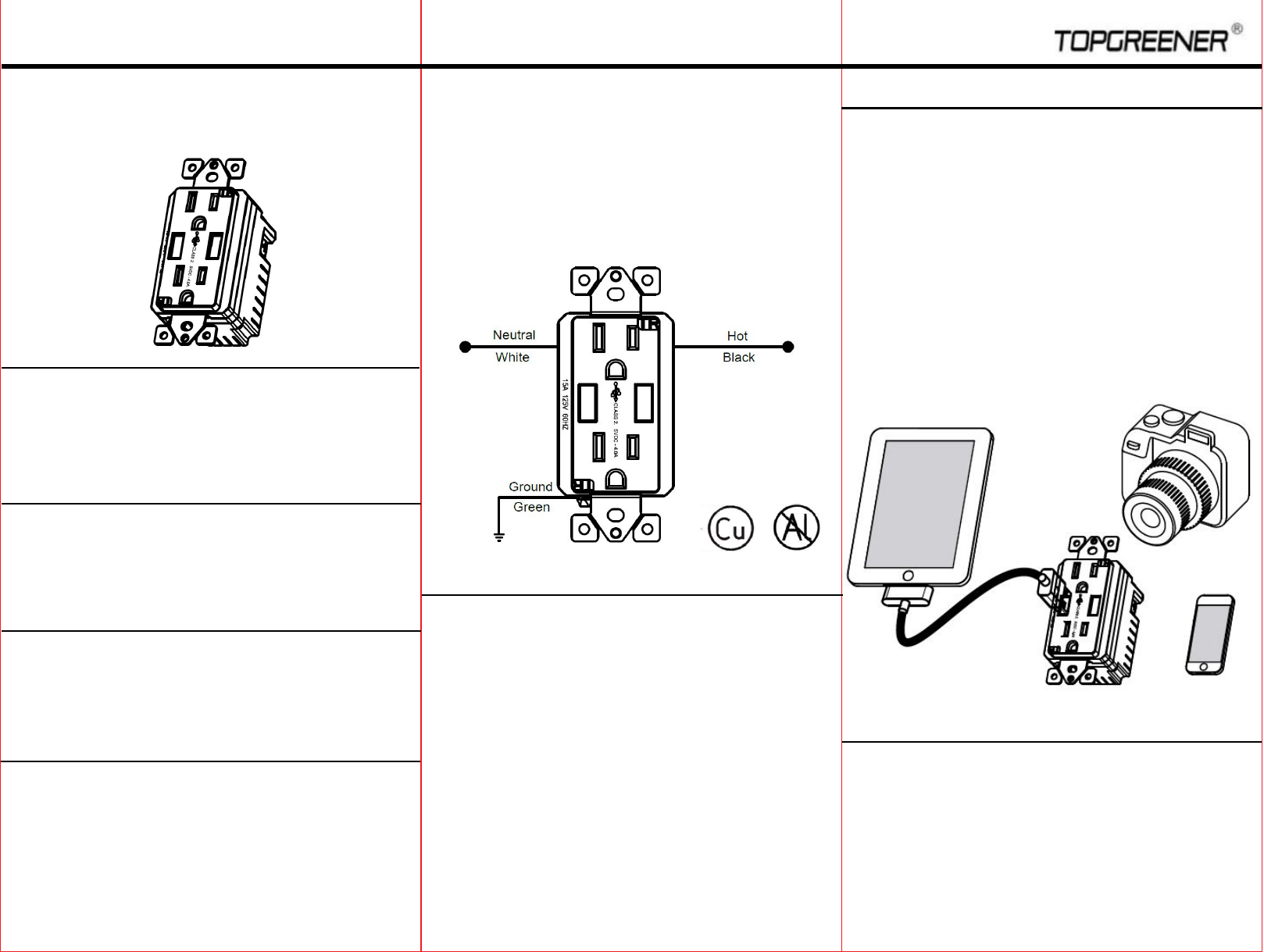

Wiring Diagram:
1. For retrofit applications, remove wall plate and mounting screws.
2. Carefully remove existing receptacle from the junction box.
3. Disconnect wires from the old receptacle.
4. Connect the TU2154A per wiring diagram (As shown in Figure 1):
Black lead to the Hot wire, White lead to the Neutral wire, Green
lead to the Ground wire.
5.
6.
Tight every screw (9-12 pound· inch (1.0-1.4 N·m ) of torque) and
make sure no bare conductors are exposed.
Insert the TU2154A into the wall box carefully, which size will be
3-3/4”×2-1/4”×3-3/16” Deep or 20.3 cu-in.
7. Mount the TU2154A in the junction box with screws provided
and mount wall plate.
8. Restore power at circuit breaker, installation is complete.
Figure 1
COMPATIBILITY
The TU2154A USB Charger is compatible with a wide range of
electronic devices including, but no limited to, the following:
 iPad®
 iPad ® Mini
 Tablets
 Mobile Phones
 Blackberry , Android Phones
 Windows Phone by HTC
 Kindle
TM
, Nook e-reader
 iPhone®
 iPod®
 GPS
 Galaxy Tab
TM
 Bluetooth
TM
Headsets
 Digital Cameras
 Other USB compatible products
If the devices combined power requirements exceed the power
capacity of the USB Ports, the charger will automatically shut
down to protect your devices.
Charge Most USB Powered Devices
WARRANTY
Our company warranties this product to be free of defects in
materials and workmanship for a period of two(2) years.There
are no obligations or liabilities on the part of our company for
consequential damages arising out of, or in connection with, the
use or performance of this product or other indirect damages
with respect to loss of property, revenue or profit, or cost of
removal, installation or reinstallation.
Figure 2
May, 2016
TU2154A
Dual USB Charger with
15A Duplex Tamper Resistant Receptacle
Receptacle Rating ....................................................... 15 Amps, 125VAC
APPLICATION
