Quick Reference Guides Manual

Makin

a Moisture Anal

sis

After configuring all of the necessary parameters and preparing the sample, you may begin your moisture

analysis by following the steps below. For information on parameter configuration see Chapters 7 and 8 of

the Instruction Manual.

Important Caution Note: Do not touch the top surfaces of the Moisture Analyzer’s Drying Chamber or

any internal parts either during or soon after use. As the parts and surfaces will be very HOT, allow

adequate time for the unit to cool. Be sure to read and follow all Caution Procedures listed in Chapter 1.

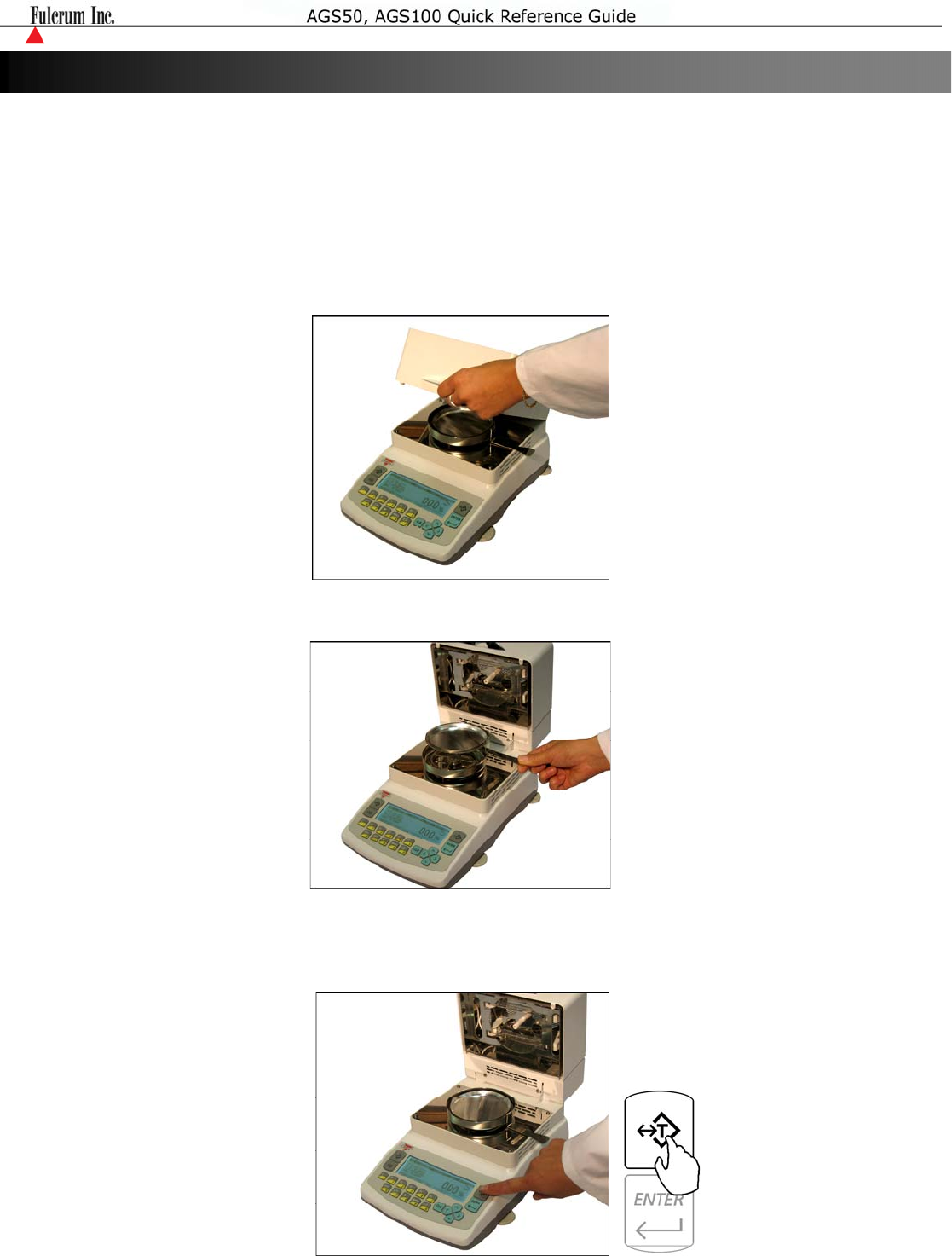

1. Open the Drying Chamber.

2. Using the Pan Handle, place the Disposable Pan on the Pan Support.

Note: Be sure the Pan Handle is not touching the Pan Shield.

3. Press the T key to Tare the Disposable Pan.

PAGE 1
Making a Moisture Analysis After configuring all of the necessary parameters and preparing the sample, you may begin your moisture analysis by following the steps below. For information on parameter configuration see Chapters 7 and 8 of the Instruction Manual. Important Caution Note: Do not touch the top surfaces of the Moisture Analyzer’s Drying Chamber or any internal parts either during or soon after use. As the parts and surfaces will be very HOT, allow adequate time for the unit to cool.
PAGE 2
4. Place the sample on the Disposable Pan. After the Tare has been performed, the Disposable Pan can be removed from the Pan Support by using the Pan Handle to evenly distribute the sample. Note: Make sure the sample is evenly distributed on the Disposable Pan as per the instructions listed in Chapter 11. 5. Close the Drying Chamber. 6. Press the FI (START) key. The unit will indicate on the display that Heating is in progress. The moisture content of the sample will be displayed as a percentage (%).
