Operator's Manual

FORM NO. 3318-494
The TORO Company - 1996
TPS
INSTALLATION
INSTRUCTIONS
WIDE WIEHLE ROLLER KIT
(For Greensmaster

3200)
MODEL NO. 04487
1. Remove (2) shoulder bolts securing traction unit
pull frame to cutting unit (Fig. 1) .

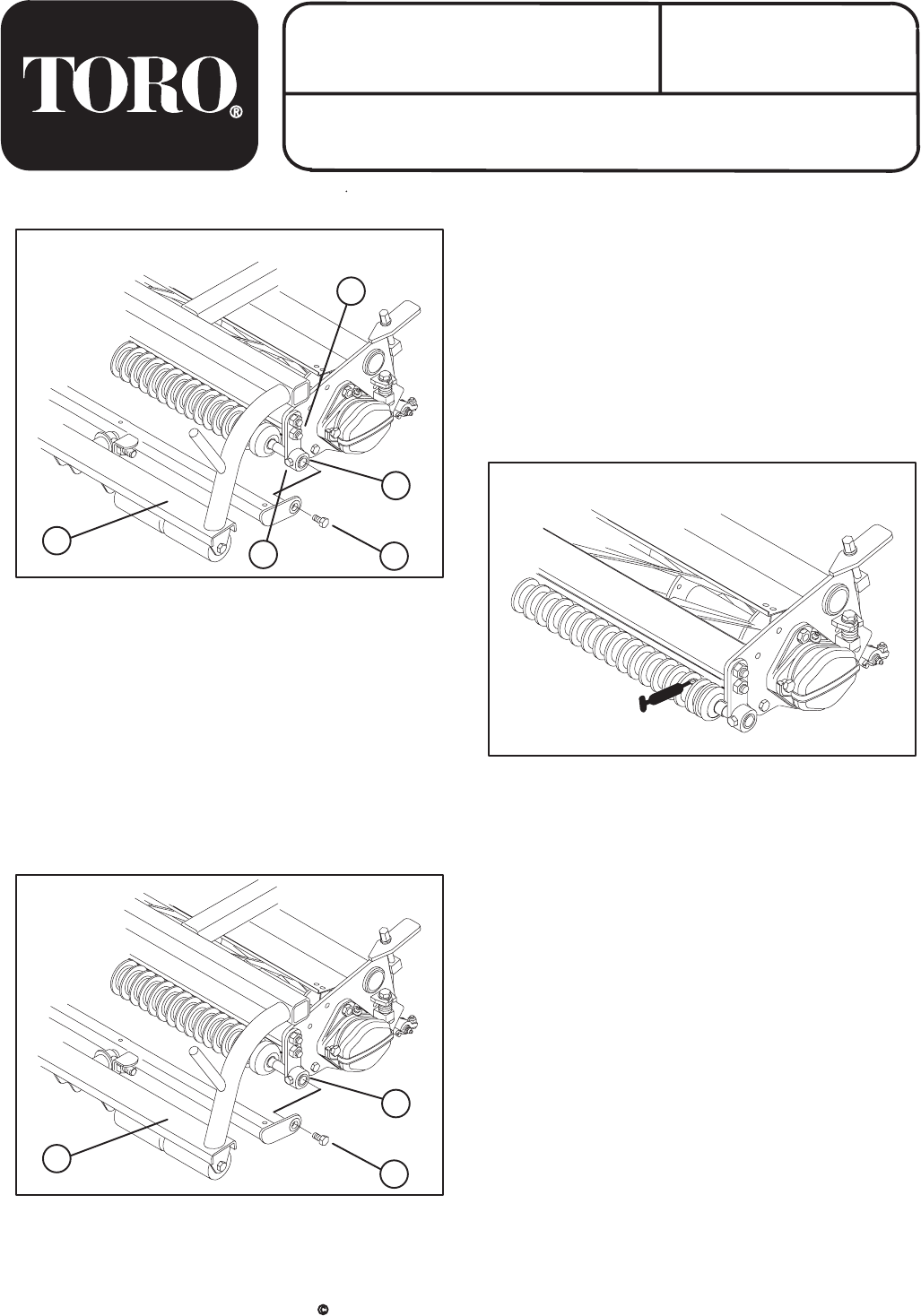

Figure 1
1. Pull frame
2. Shoulder bolt
3. Roller bracket
1
2
3
5
4
4. Capscrew
5. Capscrews and locknuts
2. Loosen (2) capscrews securing ends of roller shaft
to roller brackets (Fig. 1).
3. Remove (2) capscrews and locknuts securing left
front roller bracket to side plate (Fig. 1).
Note: The right roller bracket has an eccentric bolt for
leveling roller to bedknife.
4. Remove existing roller.
5. Insert new roller into roller brackets (Fig. 2).
Figure 2
1. Pull frame
2. Shoulder bolt
3. Roller bracket
1
2
3
6. Secure left front roller bracket to side plate with (2)
capscrews and locknuts previously removed.
7. Center roller between roller brackets.
8. Tighten each capscrew securing roller shaft ends
to roller brackets.
9. Secure traction unit pull frame to cutting unit with
(2) shoulder bolts previously removed.
10. After roller installation is completed, check level of
front roller per instructions in Operator's Manual.
11. Grease roller with No. 2 multi-purpose lithium
base grease.
Figure 3
