Installation Instructions

Printed in the USA

 2004 by The Toro Company

8111 Lyndale Avenue South

Bloomington, MN 55420-1196

Steel Roller

Greensmaster DPA Reel Mowers

Model No. 04628

Form No. 3351–545

Installation Instructions

1. Remove plow bolt, washer and flange nut securing one

of the HOC arms to cutting unit sideplate.

2. Loosen roller mounting screws in HOC arms.

3. Slide roller shaft into HOC arm on opposite end of

cutting unit.

4. Slide HOC arm onto roller shaft.

5. Loosely secure the roller to the cutting unit with the

HOC arm and fasteners previously removed.

6. Center roller between HOC arms.

7. Tighten roller mounting screws

8. Adjust to desired height of cut and tighten HOC arm

mounting fasteners.

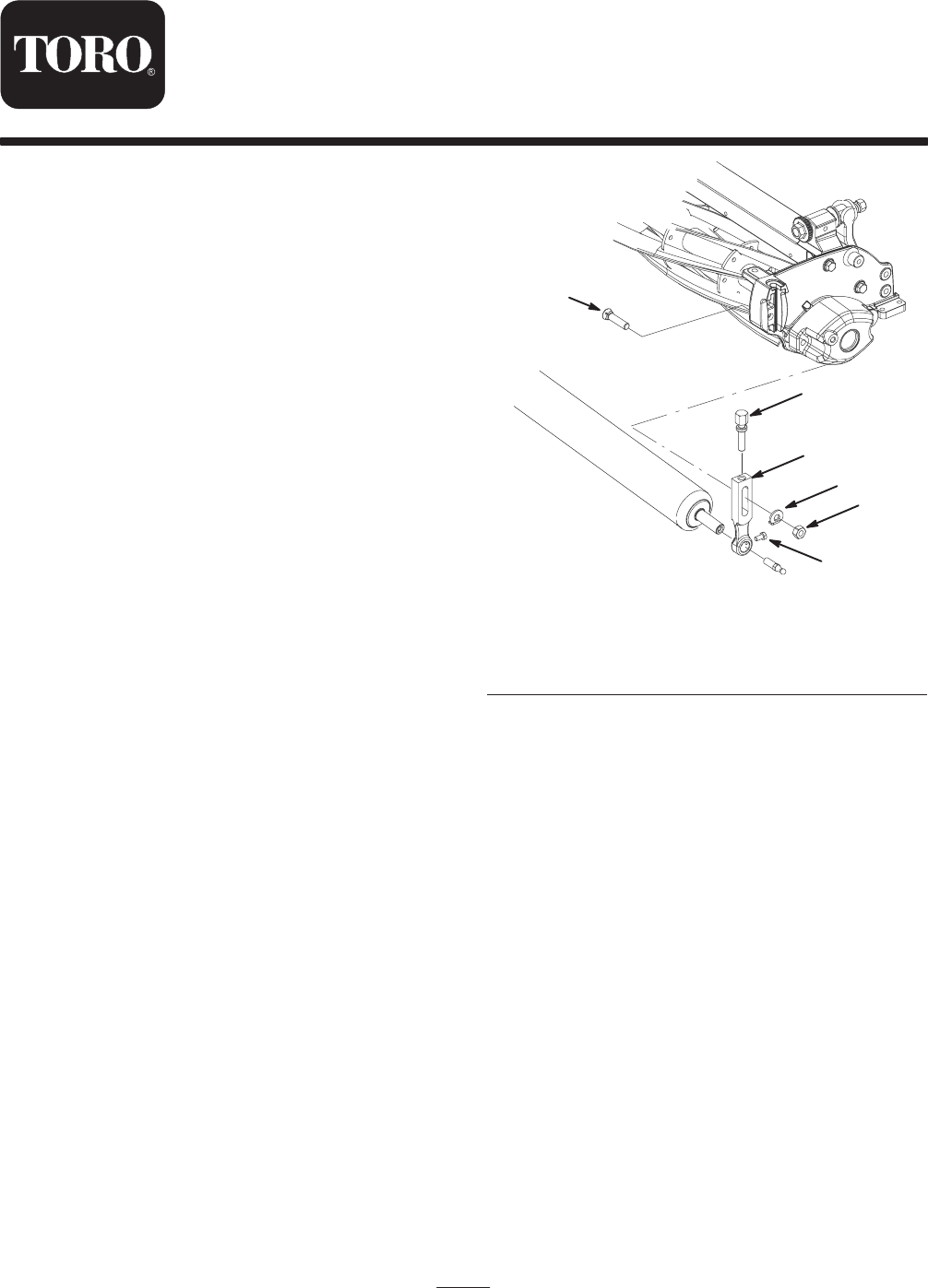

Figure 1

1. HOC arm

2. Adjusting screw

3. Plow bolt

4. Washer

5. Flange nut

6. Screw

PAGE 1
