Installation Instructions

FormNo.3361-664RevA

DirectDriveFanKit

Groundsmaster4000/4100–DModels30410,30410TE,30411and

30411TE

ModelNo.117–5665

InstallationInstructions

Installation

1.Removethe4boltsandwasherssecuringthefan

clutchtothefanadapter(Figure1).Removethefan

clutchandfan.

2.Removethe4boltsandwasherssecuringthefanto

thefanclutch(Figure1).Removethefanandretain

forreassemblylater.

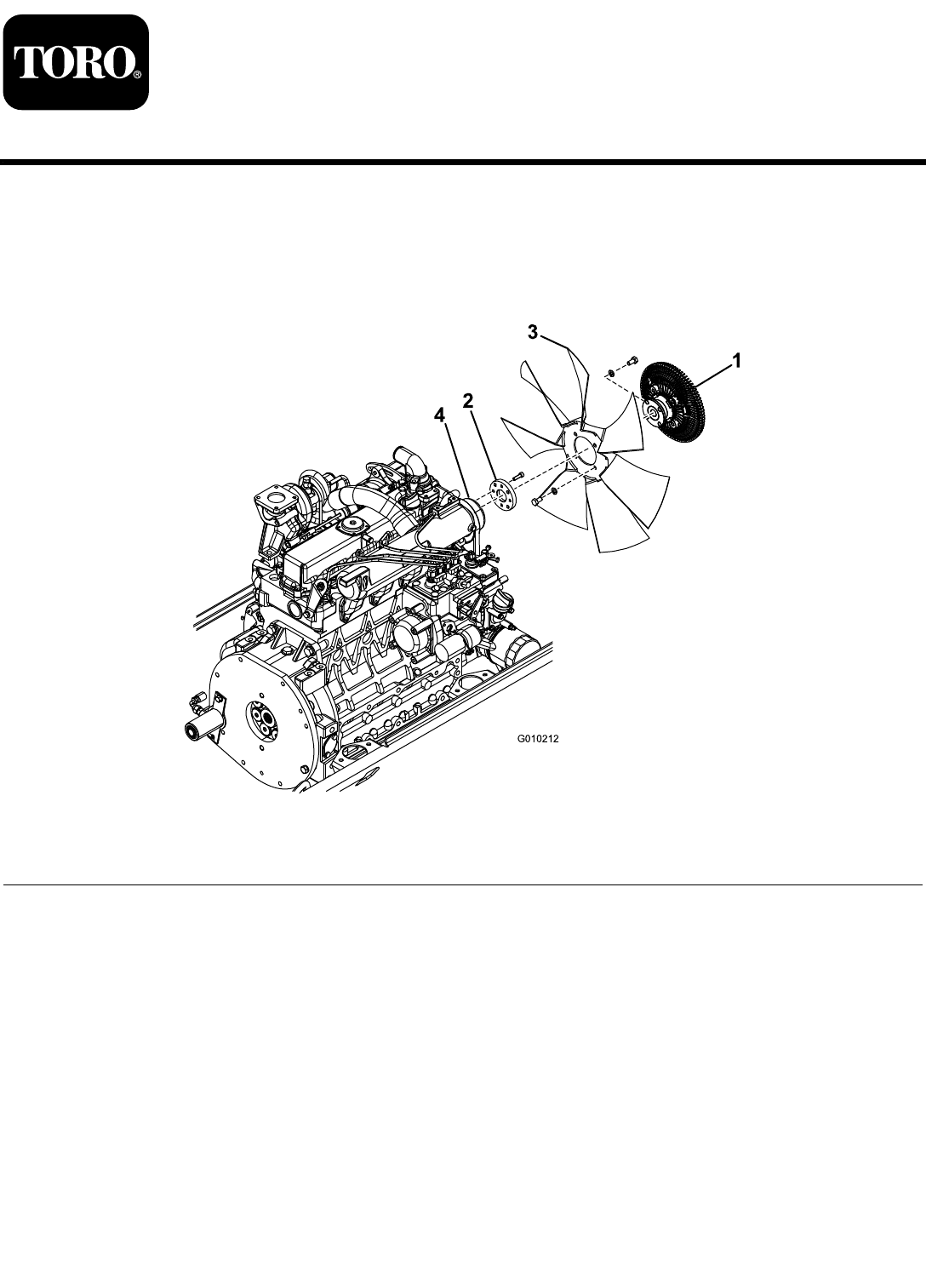

G010212

Figure1

1.Fanclutch3.Fan

2.Fanadapter4.Fanpulley

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.Toro.com.

OriginalInstructions(EN)

PrintedintheUSA.

AllRightsReserved

PAGE 1
Form No. 3361-664 Rev A Direct Drive Fan Kit Groundsmaster 4000/4100–D Models 30410, 30410TE, 30411 and 30411TE Model No. 117–5665 Installation Instructions Installation 2. Remove the 4 bolts and washers securing the fan to the fan clutch (Figure 1). Remove the fan and retain for reassembly later. 1. Remove the 4 bolts and washers securing the fan clutch to the fan adapter (Figure 1). Remove the fan clutch and fan. 3 1 4 2 G010212 Figure 1 1. Fan clutch 2.
PAGE 2
3. Loosen the alternator mounting bolt and release the belt tension. Remove the alternator belt from the pulleys and remove the belt (Figure 2). 4. Remove the 4 bolts securing the fan adapter and the fan pulley to the engine. Remove the adapter and the pulley (Figure 2). 5. Install the new fan pulley and route the alternator belt around the pulley. 6. Slide the new fan adapter through the fan and into the fan pulley. Secure the fan adapter to the engine with 4 M6 bolts (Figure 3). 7.
