FormNo.3382-681RevB

Backup-AlarmKit

Workman

HDX-AutoUtilityVehicle

ModelNo.127-8729

InstallationInstructions

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

Description

Qty.

Use

Backupalarm1

Hexbolt2

Nut2

Wiringharness1

Cabletie

Installthekit.

InstallingtheKit

1.Parkthemachineonalevelsurface,stoptheengine,

settheparkingbrake,andremovethekeyfromthe

ignition.

2.Removethe2nutsfromthegroundstudofthebackup

alarm(Figure1).

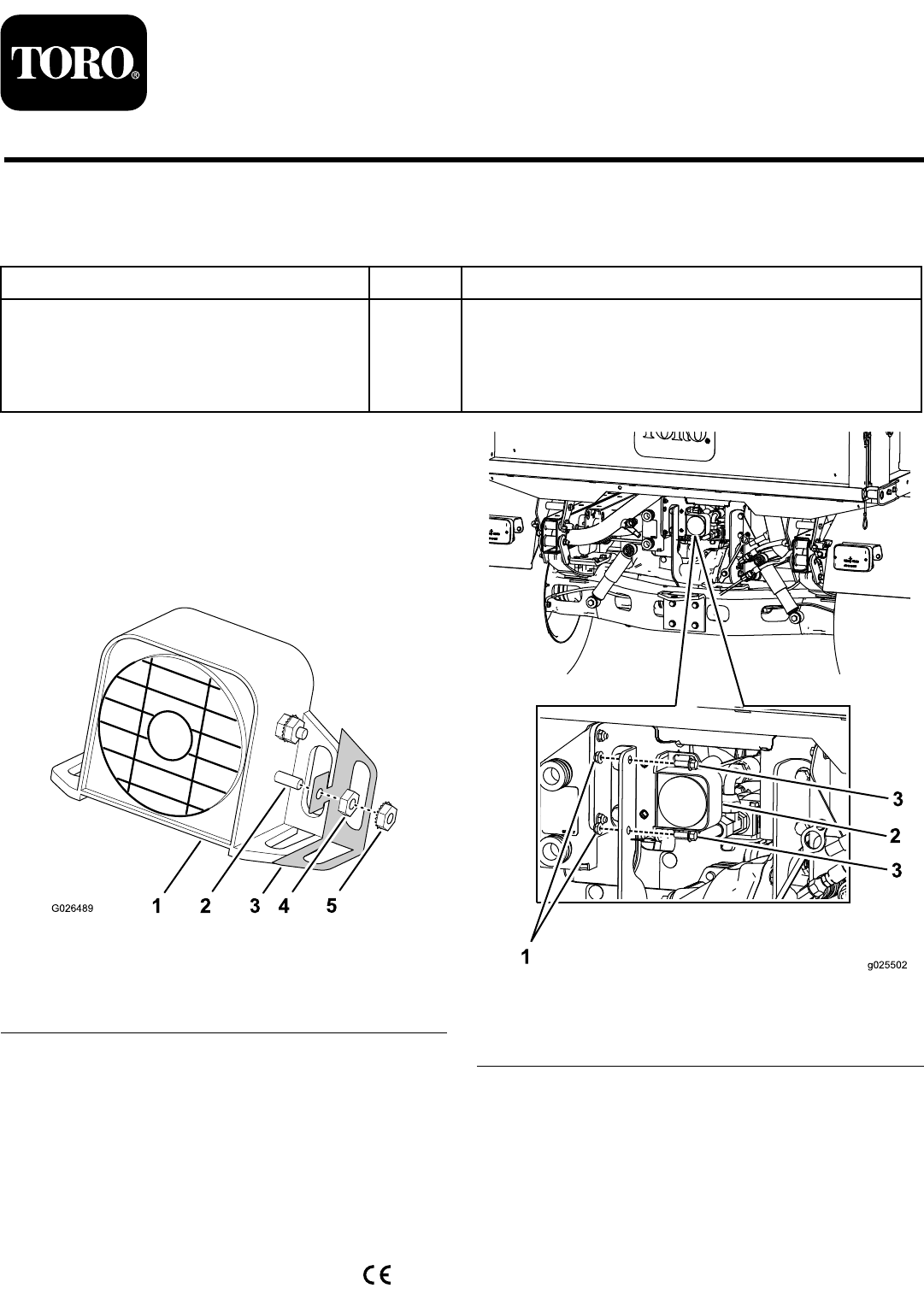

Figure1

1.Backupalarm4.Plainnut

2.Groundstud5.Star-washernut

3.Groundingstrap

3.Removethegroundingstrapfromthestudofthe

alarm(Figure1).

Note:Discardthegroundstrap.

4.Installtheplain-terminalnutontothegroundterminal

handtight(Figure1).

5.Attachthebackupalarmtotherearbracketofthe

machineusingthehexboltsandnuts(Figure2).

g025502

Figure2

1.Nut3.Hexbolt

2.Backupalarm

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.T oro.com.

OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved

*3382-681*B

Summary of content (4 pages)

PAGE 1
Form No. 3382-681 Rev B Backup-Alarm Kit Workman® HDX-Auto Utility Vehicle Model No. 127-8729 Installation Instructions Loose Parts Use the chart below to verify that all parts have been shipped. Description Use Qty. Backup alarm Hex bolt Nut Wiring harness Cable tie 1 2 2 1 6 Install the kit. Installing the Kit 1. Park the machine on a level surface, stop the engine, set the parking brake, and remove the key from the ignition. 2.
PAGE 2
1 6. Secure the wiring harness to the backup alarm (Figure 3). 2 g025505 Figure 5 1. Screws 1 2 Figure 3 1. Backup-alarm wiring harness 2. Control panel g025503 10. Unplug the shift-indicator connector from the vehicle harness (Figure 6). 2. Backup alarm 7. Route the wiring harness to the front of the machine by following the other wiring harnesses (Figure 4). 1 1 2 g025506 Figure 6 1. Shift-indicator connector g025504 2. Vehicle harness 11.
PAGE 3
1 2 g025508 Figure 8 1. Vehicle harness 2. Backup-alarm harness 13. Replace the control panel.
