C.Slidethedriveshaftendyokefromthegearbox

shaft.

D.Raisethedriveshaftandtieittotheframe.

7.Slidethedeckawayfromthemachine.

InstallingtheAdapterKit

ApplyingtheDecals

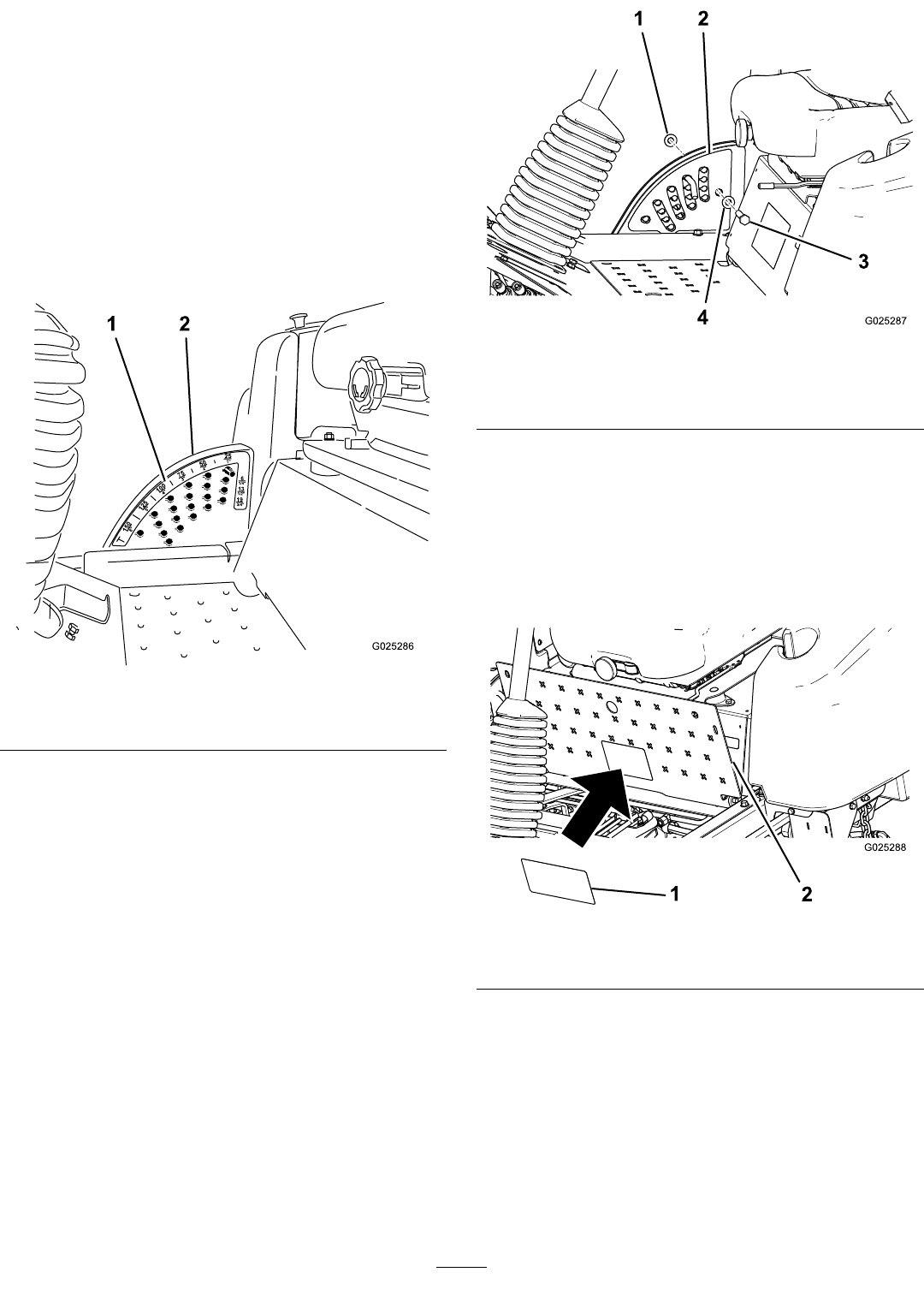

1.Removetheexistingheight-of-cutdecalfromthe

height-of-cutbracketonthemachine(Figure4).

g025286

Figure4

1.Height-of-cutdecal2.Height-of-cutbracket

2.Makesurethatthedecalmountingsurfaceofthe

height-of-cutbracketisfreeofallgreaseandgrime.

3.Afxthenewheight-of-cutdecaltothebracket

(Figure5).

g025287

Figure5

1.Locknut3.Bolt

2.Newheight-of-cutdecal

4.Washer

4.Installthe1/2x2-3/4inchbolt,atwasher,and1/2

inchangenutintothelowerrearholeofthenew

decalasshowninFigure5.

Note:Thiskeepsthedeckfromloweringand

contactingthegroundiftheheight-of-cutpinis

removed.

5.Pivotopentheoorplate(Figure6).

g025288

Figure6

1.Belt-routingdecal2.Floorplate

6.Afxthenewbelt-routingdecalovertheexistingdecal

(Figure6).

Note:Makesurethatthemountingsurfaceisclean

beforeinstallingthenewdecal.
