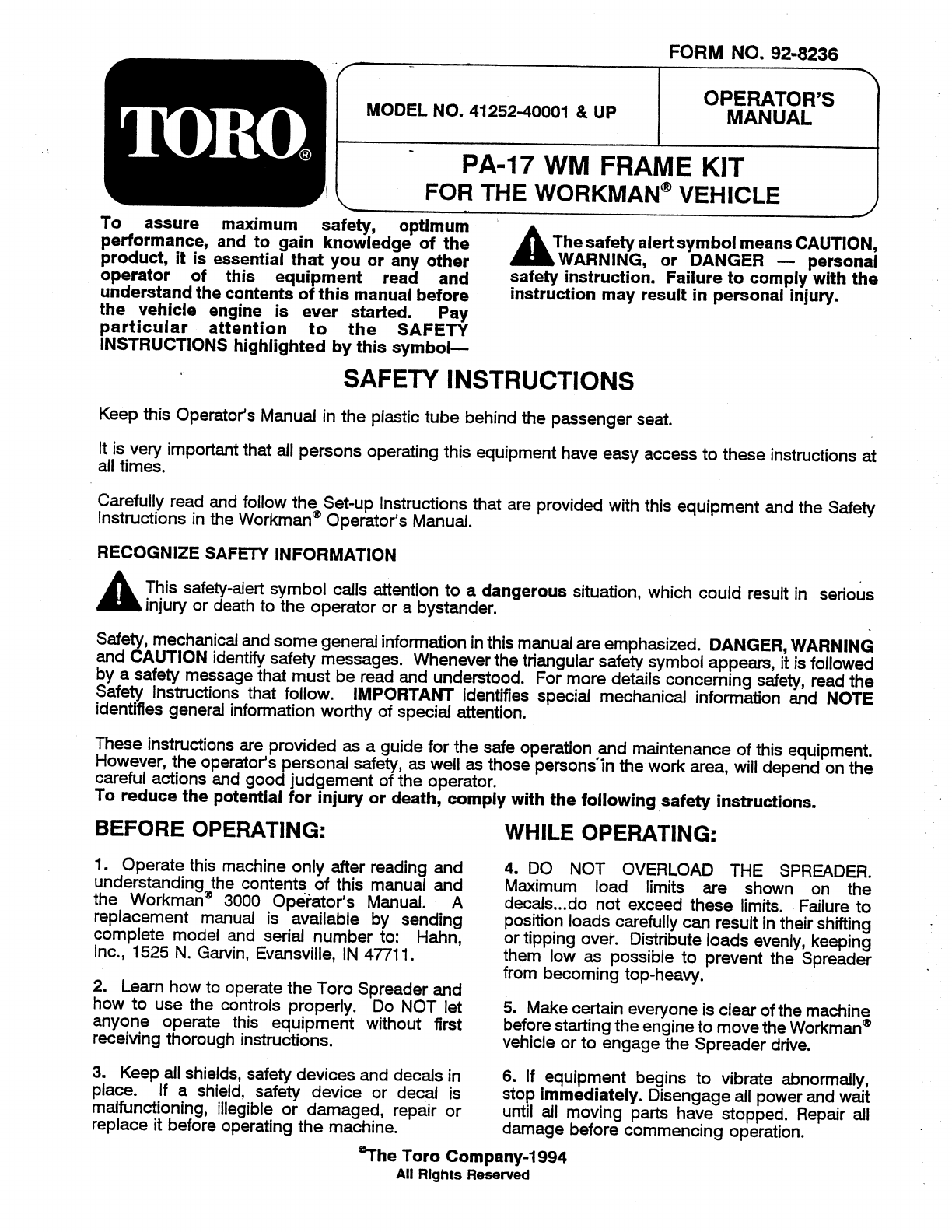

FORM NO. 92-8236 MODEL NO. 41252-40001 & UP OPERATOR'S MANUAL PA-17 WM FRAME KIT FOR THE WORKMAN® VEHICLE To assure maximum performance, and to gain knowledge of the product, it is essential that you or any other safety, optimum operator of this equipment read and understand the contents of this manual before the vehicle “engine sever “started.
SAFETY INSTRUCTIONS MAINTENANCE 7. Before servicing or making any adjustments to the Toto Spreader: A. Stop the Workman® vehicle and set the parking brake. B. Shut off the vehicle’s engine and remove key from ignition. C. Disengage all power and wait until all moving parts have stopped. D. Do not touch engine, muffler or muffler shield while engine is running or soon after it has stopped, because these areas may be hot enough to cause bums. E. Keep hands, feet and clothing away from all power driven parts.
CONTROLS The PA-17 Spreader is operational either with or without the optional Flow Control Kit (Model #41403), The Controls sifted below apply in either situation. ELECTRIC CLUTCH SWITCH: is the ON/OFF Control for the Spreader drive. Put the toggle switch at "ON" te engage the Spreader's Agitator and Spout mechanisms. Put the toggle switch at "OFF" fo disengage the mechanism and stop the Agitator and Spout action, Fig. 1 1. Electric Clutch Switch 2.
IF THE SPREADER IS EQUIPPED WITH THE FLOW CONTROL KIT, THE FLOW OF MATERIAL IS CONTROLLED BY THE ELECTRIC CONTROL SWITCH INCLUDED WITH THAT KIT. ELECTRIC CONTROL SWITCH: Opens and closes the regulator disc in the Hopper opening, to start or stop the flow of material. Position the toggle switch at the "OPEN" or *CLOSE" position as indicated by the decal on the Control Box. See FIG. 4.
The table below gives some suggested spread widths and Spout arc settings for a variety of materials. MATERIAL SPREAD WIDTH SPOUT ARC Granulated 40 ., {12m} {(Min) Trilled 40 . {12m) + {Max) Powder 20 & (6m) {Midway) Urea 32 f£. (10m) + {Max} The Spreader Unit can be fitted with two different Spouts. The smaller metal Spout (packed with the Spreader Mounting Kit) is recommended for the spreading of sand. The longer nylon Spout is recommended for the spreading of fertilizer.
OPTIONAL FLOW CONTROL (MODEL NO. 41403) The two Limit Switches control the length of the Actuator's extension or retraction and will have to be adjusted to match the Actuator’s action to the Flow Regulator. NOTE: After positioning the Limit Switches for a full "OPEN" and a full "CLOSE" disc opening as described in the Flow Control Set-up Instructions, the front Limit Switch should not need to be adjusted again.
OPERATING INSTRUCTIONS Refer to the charts on page 5 as guide lines to determine the Spout Arc and Flow Regulator settings to achieve the desired rate of application for the material being used.
The Toto Commercial Products Two Year Limited Warranty ‘The Toto Company warrants your 1996 or newer Toto Commercial Product {“Product”) purchased after January 1, 1897, to be tree from defects in materials or workmanship for the period of time listed below. Where a warrant able condition exists, Toto wilt repair the Product at no cost to you including diagnosis, labor , parts, and transportation. This warranty begins on the date the Product is delivered to the original retail purchaser.
