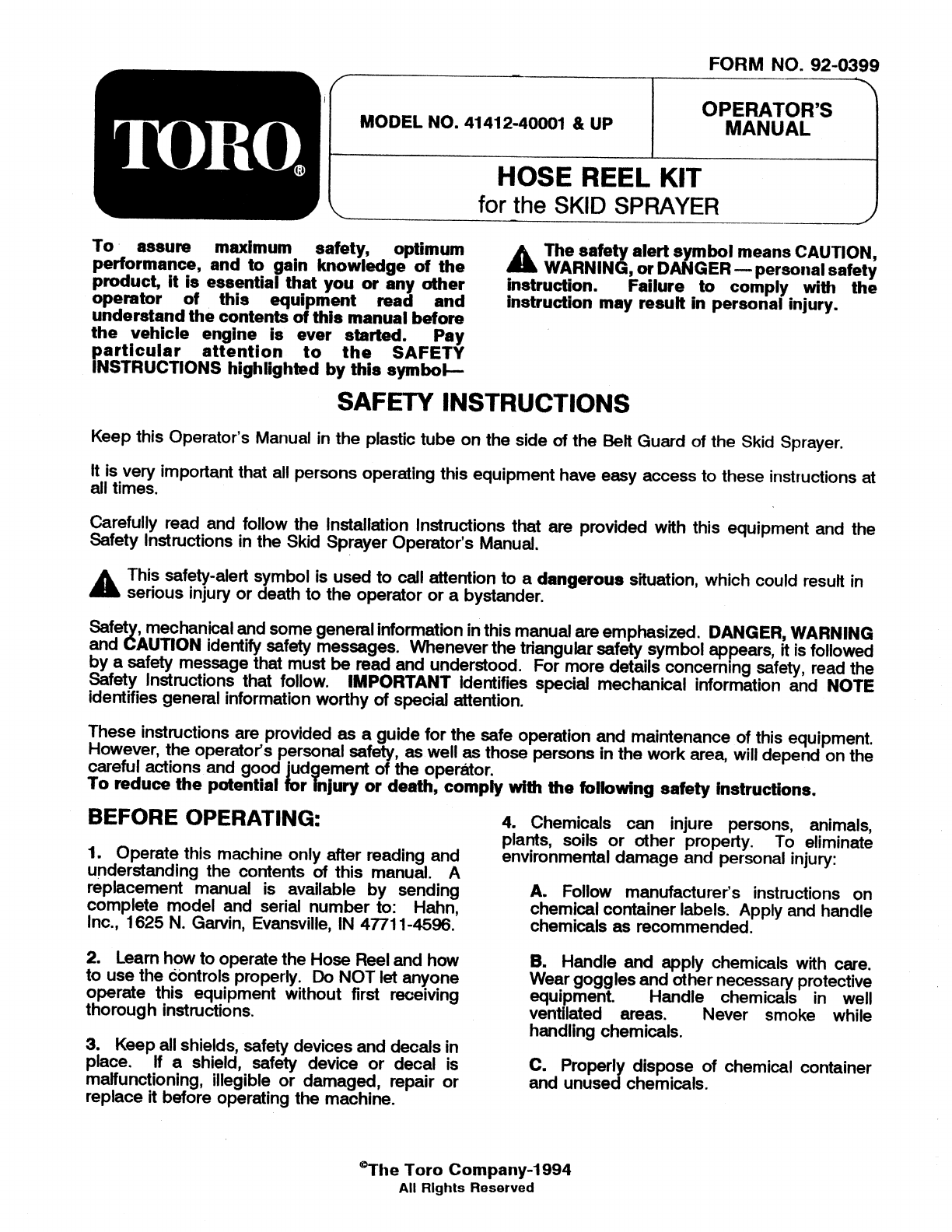

FORM NO. 92-0399 MODEL NO. 41412-40001 & UP OPERATOR’S MANUAL LV To assure maximum safety, optimum performance, and to gain knowledge of the product, it is essential that you or any other operator of this equipment read and understand the contents of this manual before the vehicle engine is ever started. Pay articular attention to the SAFETY INSTRUCTIONS highlighted by this symbol— HOSE REEL KIT for the SKID SPRAYER The safety alert symbol means CAUTION, WARNING, or DANGER —— personal safety instruction.
SAFETY INSTRUCTIONS 5. Make certain everyone is clear of the machine and work site before starting the engine and beginning to spray. WHILE OPERATING: 8. Since this attachment adds extra weight o the transport vehicle, drive the vehicle safely. A. Always slow the vehicle when approaching and while making a turn: B. Always slow the vehicle when driving in unfamiliar areas or over rough terrain. C. Always slow the vehicle when changing directions or preparing o stop. D. Try to avoid turning on slopes.
CONTROLS and OPERATION The Skid Sprayer is equipped with two Spray Pumps to provide two different types of Semtex Systems. The Centrifugal Pump is used for hill volume {i.e. boom stingray The Diaphragm Pump is used for high pressure, such as hand gun spraying. FAILURE TO USE THE PROPER HIGH PRESSURE EQUIPMENT CAN CAUSE PERSONAL-INJURY. NEVER USE THIS DIAPHRAGM PUMP WITH A SPRAY HOSE AND/OR A SPRAY GUN THAT IS RATED AT LESS THAN 800 P.S.L The Hoses furnished with this Hose Reel Kit {Model No.
d. In the number four {4} position, the pressure is about 550 PSI. These pressures can be adjusted by using the fine adjustment knob located on top of the relief valve spring. The fine adjustment knob can be rotated when the relief valve lever is in the UP position. See FIG. 3. AG. 3 Fire Adjustment Nut 5. Adjustment Lever Pressure Gauge 6. By-Pass Hose High Pressure Hose 7. Pressure Adjustment High Pressure Valve Settings {Closed) PN 8.
SERVICE INSTRUCTIONS THE SKID SPRAYER'S HIGH PRESSURE SPRAYING SYSTEM CAN CAUSE PERSONAL INJURY IF ASSEMBLED OR DISASSEMBLED INCORRECTLY. BEFORE DISASSEMBLING ANY COMPONENTS, RELEASE ALL PRESSURE WITHIN THE SYSTEM. * SHUT OFF THE ENGINE. ® LIFT THE RELIEF VALVE LEVER AT THE PUMP CONTROL UNIT. FiG. 6 1. Relief Yale Lever 2. Control Naive Lever (Closed) SWIVEL REPLACEMENT: 1. Shut off engine and lift the Relief Valve Lever 1o release pressure within the system. 2.
The Toto Promise A One Year Limited Warranty The Taro Compaq promises to repair your model 41412 Hose Reel Kit for the Skid Sprayer i defective in materials or workmanship.
