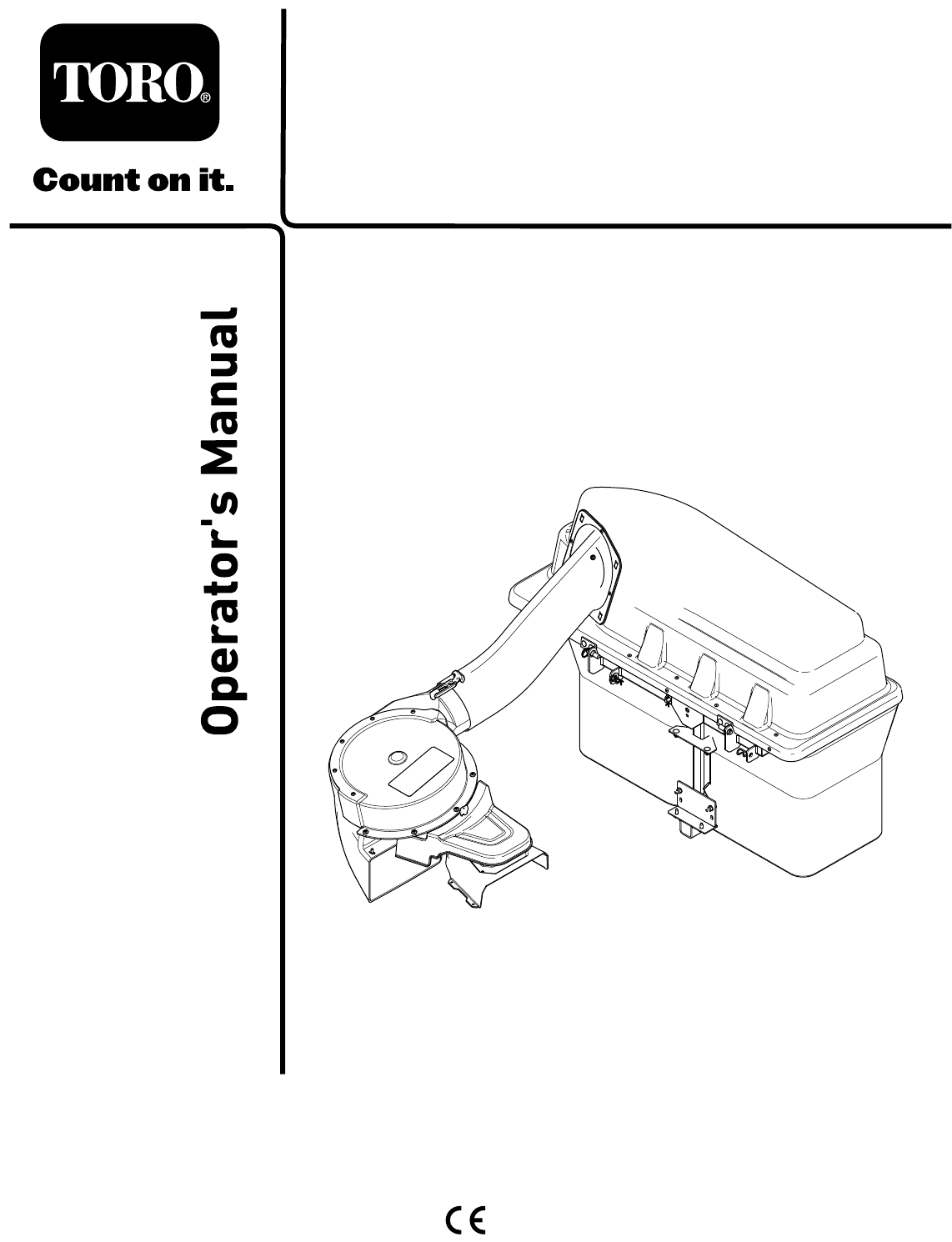

Form No. 3436-949 Rev A E-Z Vac™ Complete Twin Bagger TITAN® Zero-Turn-Radius Riding Mower Model No. 79346—Serial No. 400000000 and Up Register at www.Toro.com.
(Figure 2), which signals a hazard that may cause serious injury or death if you do not follow the recommended precautions. WARNING CALIFORNIA Proposition 65 Warning Use of this product may cause exposure to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. g000502 Figure 2 1. Safety-alert symbol This manual uses 2 words to highlight information.
Towing Safety Safety • Do not attach towed equipment except at the hitch • Become familiar with the safe operation of the point. equipment, with the operator controls, and safety signs. • Follow the attachment manufacturer's recommendation for weight limits for towed equipment and towing on slopes. • Use extra care with grass catchers or other attachments. These can change the operating characteristics and the stability of the machine. • Never allow children or others in or on towed equipment.
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal136-4164 136-4164 1. Warning—read the Operator’s Manual. 4. Cutting/dismemberment hazard, impeller—keep away from moving parts; keep all guards and covers in place. 2. Warning—hearing protection must be worn. 5.
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Use Qty. 1 No parts required – Prepare the machine. 2 Weight tray Left weight-tray mount Right weight-tray mount Suitcase weight—16 kg (35 lb) Retaining rod Bolt (3/8 x 1-1/4 inches) Flange nut (3/8 inch) Carriage bolt (3/8 x 1 inch) Self-tapping bolt (5/16 x 3/4 inch) 1 1 1 1 1 2 4 2 2 Install the weight. 3 No parts required – Remove the grass deflector and belt cover.
Determine the left and right sides of the machine from the normal operating position. 1 2 Preparing the Machine Installing the Weight No Parts Required Parts needed for this procedure: Procedure Perform the following procedure to prepare the machine for attaching the blower and finishing kit. 1 Weight tray 1 Left weight-tray mount 1 Right weight-tray mount 1 Suitcase weight—16 kg (35 lb) 1. Park the machine on a level surface. 1 Retaining rod 2.
g196533 Figure 3 Cutaway view g196560 Figure 5 1. Weight-tray mounts 3. Flange nut (3/8 inch) 1. Retaining rod 2. Bolt (3/8 x 1-1/4 inches) 4. Self-tapping bolt (5/16 x 3/4 inch) 2. Weight tray 5. 3. Use the 2 carriage bolts (3/8 x 1 inch) and flange nuts to secure the weight tray to the mounts (Figure 4). 3. Suitcase weight Insert the retaining rod into the tray and rotate it into the locked position (Figure 5). Important: Remove the suitcase weight whenever you remove the bagger attachment.
Note: Your chute may look different than the one pictured. 4 Installing the Baffle and Blower Support Parts needed for this procedure: 1 Blower support 2 Hex washer-head screw (3/8 x 3/4 inch) 1 Baffle 4 Carriage bolt (5/16 x 3/4 inch) 4 Flange nut (5/16 inch) Procedure 1. g190642 Install the blower support to the mower deck using 2 hex washer-head screws (3/8 x 3/4 inch) as shown in Figure 8. Figure 6 1. Rod 4. Spring 2. Cotter pin (CE models only) 5. Deck brackets 3. Deflector 6.
2. Remove the existing bolt and nut from the mower deck (Figure 9). Important: For 48-inch and 60-inch mower decks, there is only one bolt and nut that you can remove. For 54-inch mower deck, remove the bolt and nut as shown in Figure 9. g206496 Figure 10 54-inch mower deck shown 1. Inner baffle 6. Install this carriage bolt (5/16 x 3/4 inch) and flange nut (5/16 inch) after sliding the baffle. 2. Hole for 48-inch and 60-inch mower deck installation. 3. Hole for 54-inch mower deck installation. 7.
4. 5 Install the new belt cover over the pulley assembly using the 4 previously removed screws (1/4 x 1/2 inch) as shown in Figure 12. Installing the Pulley Assembly, Belt Cover, and Shoulder Bolt Parts needed for this procedure: 1 Pulley assembly 1 Belt cover Procedure 1. 2. g201435 Figure 12 Remove the nut and washer from the right mower deck pulley. 1. Belt cover Install the pulley assembly to the right mower deck pulley with the previously removed nut and washer (Figure 11).
g308798 Figure 13 1. Nut 2. Existing hitch bracket 3. Bolt g302477 Figure 15 2. Install the stabilizer bracket to the engine guard using 2 carriage bolts (5/16 x 3/4 inch) and 2 locknuts (5/16 inch) as shown in Figure 14. 1. Locknut (5/16 inch) 5. 2. Bolt (5/16 x 1 inch) Position the pivot frame upward, and secure the pivot frame to the bottom of the machine frame using 2 self-tapping screws (5/16 x 3/4 inch) as shown in Figure 16. g308799 Figure 14 1. Locknut (5/16 inch) 2.
7 Installing the Latch Rod Parts needed for this procedure: 1 Latch rod 1 Hairpin cotter Procedure Install the latch rod with a hairpin cotter (Figure 18). g308335 Figure 17 Left side shown 8. Insert the bent ends of the rods into the attachment mount as shown in Figure 17 and secure the end of each rod with a washer and hairpin cotter. g201213 Figure 18 1. Hairpin cotter 12 2.
8 Assembling the Bagger Top Parts needed for this procedure: 1 Bagger top 1 Bagger screen 2 Hairpin cotter Procedure 1. Turn the bagger top over. 2. Install the screen as shown in Figure 19 and ensure that it slopes down toward the collection bags. Note: Make sure that the screens snap into place and the tabs engage the bagger top. g201881 Figure 19 1. Bagger top 4. Slot in bagger top 2. Screen 5. Hairpin cotter 3.
4. 9 Lift the bagger top and install the bags by sliding the bag frame hooks onto the retaining brackets (Figure 21). Installing the Bagger Top Parts needed for this procedure: 2 Grass Bag Procedure 1. Install the bagger top to the bagger frame. Note: Your bagger may look different than the 2. 3. one shown. Slide the brackets over the posts in the bagger frame and install the circular cotter pin into the hole in the right hand post (Figure 20). Rotate the bagger hood down to the operating position.
10 Installing the Blower Assembly Parts needed for this procedure: 1 Blower assembly Procedure g201514 Figure 23 WARNING 1. Blower assembly An uncovered discharge opening allows the lawn mower to throw objects toward you or bystanders, resulting in serious injury. Also, contact with the blade could occur. 3. Blower support 2. Blower pivot pin • Never operate the lawn mower without a cover plate, a mulch plate, or a grass chute and catcher.
11 Installing the Blower Belt and Powered Bagger Cover Parts needed for this procedure: 1 Powered bagger cover 1 Blower belt Procedure 1. Install the belt around the blower pulley (Figure 25 and Figure 26); refer to 10 Installing the Blower Assembly (page 14). g201513 Figure 26 1. Blower pulley Use the following belt based on the mower deck size: 48-inch Mower Deck 54-inch Mower Deck 60-inch Mower Deck Toro Part No. 127-0074 Toro Part No. 127-0075 Toro Part No. 127-0076 5. Idler arm 2.
g201515 Figure 27 1. Knob 2. Powered bagger cover 3. Belt cover 12 Installing the Discharge Tubes g018444 Figure 28 Lower Discharge Tube Latch Parts needed for this procedure: 1 Upper tube 1. Blower assembly 2 Screw (1/4 x 3/4 inches) 2. Upper latch 2 Washer (1/4 inch) 2 Locknut (1/4 inch) 1 Lower tube 7. 3. Latch Make note of where the 2 bolts in the upper tube are installed. Note: The hole near the molded arrowheads will not be used.
g018440 Figure 29 1. Upper tube 3. Bagger hood 2. Rubber seal protruding out 12. Align the upper tube holes to match the dimples on the surface of the lower tube. Note: Ensure that the side profile appears as shown in Figure 30. Note: Do not use the open hole near the molded arrowheads. g018439 Figure 31 Drilling Lower Discharge Tube 1. Dimples 4. Upper tube 2. Lower tube 5. Install screw (1/4 x 3/4 inch), washer (1/4 inch), and locknut (1/4 inch) here. 6.
18. Secure the tubes together with the nuts (1/4 inch) as shown in Figure 31. 19. Insert the upper discharge tube through the tube seal in the hood. 20. Pull the upper tube out slightly so that the seal extends outward and over the blower assembly (Figure 29). 21. Use both latches to attach the lower tube to the blower assembly (Figure 28).
Emptying the Grass Bags DANGER Debris, such as leaves, grass, or brush can catch fire. A fire in the engine area can cause personal injury and property damage. • Keep the engine and muffler area free of debris accumulation. • Take care when opening the bagger cover to keep debris from falling onto the engine and muffler area. • Allow the machine to cool before storing it. Be careful when lifting or handling a grass bag that is full. To empty the grass bags: 1.
Clearing Obstructions from the Bagger You can remove the bagger by repeating the Setup sections from all installed bagger related kits in reverse order. If weights are installed, always remove the front bagger weights when removing the bagger attachments. WARNING Note: It is necessary only to remove the cutoff baffle when installing a mulching kit. When the bagger is in operation, the blower is rotating and can cut off or injure hands and fingers.
Operating Tips CAUTION As the bagger fills, extra weight is added to the back of the machine. If you stop and start suddenly on hills, you may lose steering control or the machine may tip. Tips for Bagging Remembering the Size of the Machine with the Attachment • Do not start or stop suddenly when going uphill or downhill. Avoid uphill starts. Remember that the machine is longer and wider with this attachment installed. By turning too sharply in confined places, you may damage the attachment.
Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Interval Maintenance Procedure After the first 8 hours • Inspect the blower belt. • Inspect the bagger. After each use • Clean the hood screen. • Clean the bagger. Every 25 hours • Inspect the blower belt. Every 100 hours • Inspect the bagger.
Cleaning the Bagger and Bags 3. Remove the existing bagger belt from the mower-deck pulley. 4. Remove the blower from the mower deck. Service Interval: After each use 5. Wash the inside and outside of the bagger hood, bags, tube, and the underside of the mower. Remove the existing bagger belt from the blower pulleys. 6. Note: Use a mild automotive detergent to remove dirt. Install the new belt around the blower pulleys (Figure 35). 7. Install the blower onto the blower support. 1. 2.
Storage Storing the Bagger Attachment 1. Clean the bagger attachment; refer to Cleaning the Bagger Attachment. 2. Inspect the bagger attachment for damage; refer to Inspecting the Bagger Attachment. 3. Ensure that the grass bags are empty and thoroughly dry. 4. Store the bagger in a clean, dry place, out of direct sunlight. This protects the plastic parts and extends the life of the bagger. If you must store the bagger outside, cover it with a weatherproof cover.
Troubleshooting Problem There is abnormal vibration. Reduced bagging performance The blower and tubes plug too frequently. Possible Cause 1. The cutting blade(s) are bent or unbalanced. 1. Install new cutting blade(s). 2. The blade-mounting bolt is loose. 3. There is a loose blower pulley or pulley assembly. 4. The bagger belt is worn. 5. The blower fan blade(s) are bent or unbalanced. 2. Tighten the blade-mounting bolt. 3. Tighten the appropriate pulley. 1. The engine speed is too low. 1.
