Installation Instructions

FORM NO. 3318-360

The TORO Company - 1996

TPS

INSTALLATION

INSTRUCTIONS

PART NO. 93-7795

MUFFLER KIT

GM455D & RM3500D/335D

CAUTION

Be careful while working around muffler as it

may be hot and could cause injury.

Note: If air cleaner is mounted directly to muffler, it

must be removed from muffler and re-mounted to left

frame tube with a air cleaner bracket, Part No.

92-6578. The bracket can be obtained from your local

Toro Distributor. Use steps 1 thru 4 to remount air

cleaner, otherwise proceed to step 5.

1. Open hood. Remove fasteners securing air

cleaner mounting bands to muffler. Retain fasteners.

2. Using dimensions shown in figure 1, locate and

drill (2) .406 dia. holes thru both walls of left rear frame

tube.

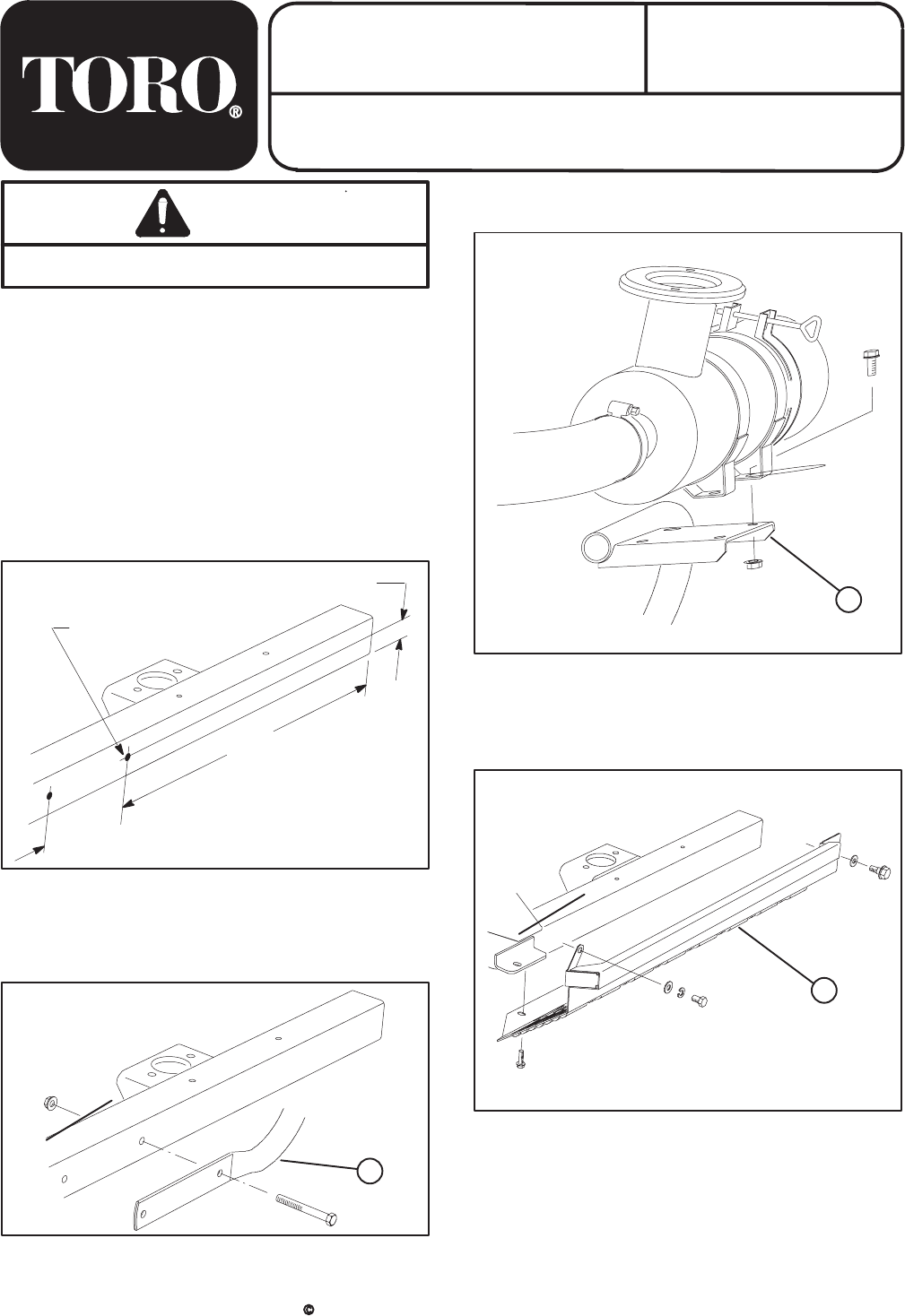

Figure 1

.406 dia. (2)

6.50"

20.19"

1.25"

3. Loosely mount air cleaner bracket to frame with (2)

3/8-16 X 3-1/4" lg. capscrews and flange nuts

(Fig. 2 & 3).

Figure 2

1. Air cleaner bracket

4. Secure air cleaner mounting bands to bracket with

fasteners previously removed (Fig. 3).

Figure 3

1. Air cleaner bracket

5. Remove lower shroud from left rear side of

machine (Fig. 4). Retain fasteners and shroud.

Figure 4

1. Lower shroud

6. Remove muffler, gaskets and muffler bracket from

exhaust manifold or engine block (depending on which

mounts are used on machine) (Fig. 5).

PAGE 1
FORM NO. 3318-360 INSTALLATION INSTRUCTIONS PART NO. 93-7795 MUFFLER KIT GM455D & RM3500D/335D 4. Secure air cleaner mounting bands to bracket with fasteners previously removed (Fig. 3). CAUTION Be careful while working around muffler as it may be hot and could cause injury. Note: If air cleaner is mounted directly to muffler, it must be removed from muffler and re-mounted to left frame tube with a air cleaner bracket, Part No. 92-6578. The bracket can be obtained from your local Toro Distributor.
PAGE 2
1 6.53" 2.63" 3 1.830" 3 Figure 5 1 1. Muffler 2. Muffler bracket 3. Gasket 7. Remove fasteners securing air cleaner bracket to frame and re-mount front bracket to outside of air cleaner bracket and to frame with fasteners removed (Fig. 6). 8. Secure rubber mount to to top of front bracket with flangenut and flatwasher provided with mount (Fig. 6). Flatwasher to be positioned between mount and bracket. Figure 7 1. Radiator support 10.
PAGE 3
2 3 1 2 Figure 11 1. Exhaust flange sleeve 2. Exhaust coupler 1 1 Figure 9 1. Exhaust cover 2. Water return tube 3. Hose 13. Disconnect, remove and replace hydraulic tube with new tube as shown in figure 10. 2 3 6 7 5 4 11 1 9 Figure 10 1. Replace this tube 14. Press exhaust flange sleeve into side port of engine exhaust manifold (Fig. 11). Insert exhaust coupler over sleeve so larger diameter is against manifold (Fig. 11). 15.
