Operation Manual

19
Connections
Notes:
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the DVD/VCR to other equipment, be sure to turn off the power and unplug all of the equipment from the
wall outlet before making any connections.
• If you place the DVD/VCR near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD/
VCR away from the tuner and radio.
• The output sound of the DVD/VCR has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the DVD/VCR’s power cord. If you leave the amplifier power on, the
speakers may be damaged.
• When connecting to a TV using the Video or S-video jack, make sure that the Progressive indicator “ ” on the
display window is not lit. If it is lit, the Video and S-video outputs do not feed the correct signals and you cannot see
any picture. To turn off the Progressive indicator, select PROGRESSIVE scan Off (see page 66).
Note: The S-video output and component video output transports the DVD-video signal exclusively and will deliver
enhanced DVD video picture performance.
If you connect the DVD/VCR to your TV
with the DVD OUT jacks, select the
corresponding video input on your
television to watch DVD video discs.
TV or monitor with
ColorStream
®
component video inputs
To PR/CR video input
To P R/CR
VIDEO
OUT
Signal flow
To wall outlet
To audio inputs of
the amplifier
(red)
(white)
(red)
(white)
To Y
VIDEO
OUT
To P B/CB
VIDEO
OUT
To Y video input
To PB/CB video input
Audio system
To ANALOG
AUDIO OUT
To S-
VIDEO
OUT
Component video
cable (not supplied)
To S-video input
S-video cable (not supplied)
When you make this connection, set the S-VIDEO/
COMPONENT Video selector switch to the desired
position.
And also you must select the corresponding video
input on your TV.
Audio cable (not supplied)
S-video output
An S-Video connection is superior to Video (Yellow) output. Use this method for DVD playback when the connected television has S-
Video input, and does not have component video inputs.
Component video outputs
PROGRESSIVE outputs
Some TVs or monitors are equipped with component video inputs that are capable of reproducing a progressively scanned video
signal. Connecting to these inputs allows you to view the highest quality pictures with less flicker.
INTERLACED outputs
Some TVs or monitors are equipped with component video inputs. Connecting to these inputs allows you to enjoy the highest quality
DVD picture playback.
Notes:
• Actual labels for component video inputs may vary depending on the TV manufacturer. (ex. Y, R-Y, B-Y or Y, CB, CR)
• In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a
case, adjust the TV or monitor for optimum performance.

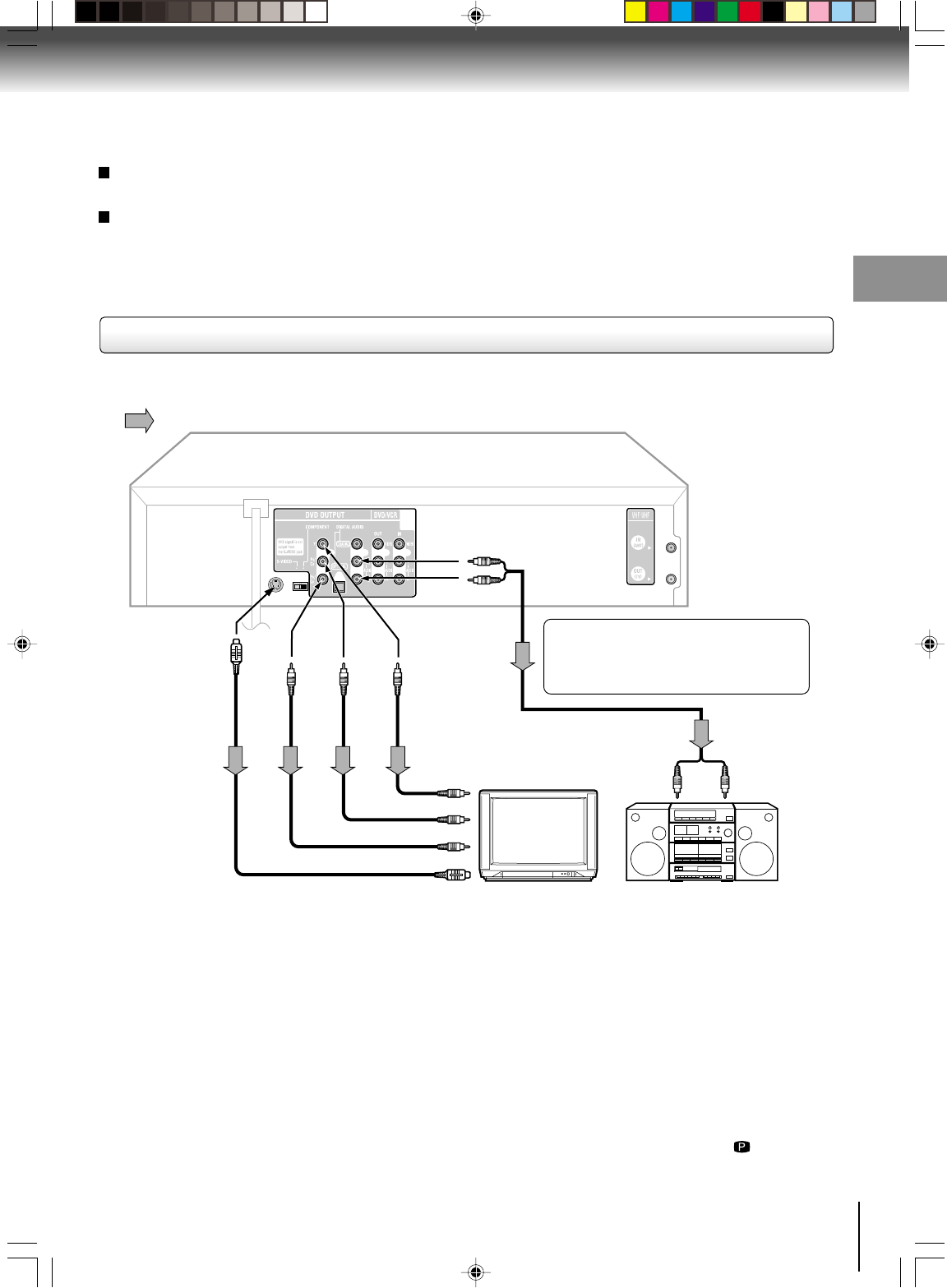

Connecting to an audio system and TV equipped with S-video input/component video inputs
