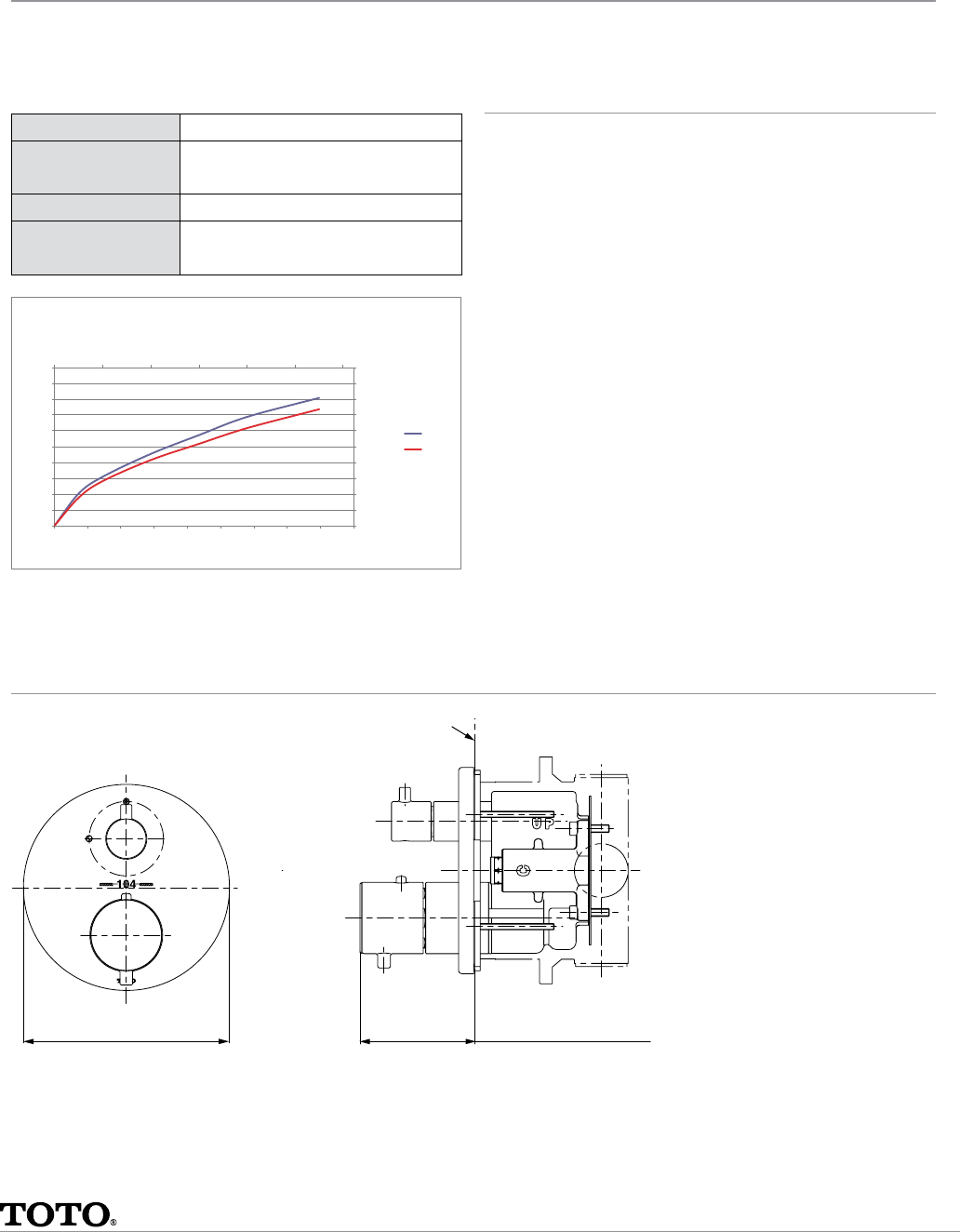

Specification Sheet

SPECIFICATIONS
TBV01407U
INSTALLATION NOTES
Requires TBN01001U MiniUnit (sold separately).
Thermostatic Mixing Valve with Volume Control Trim - Round
Material
Brass
Warranty
Limited Lifetime (Residential Use)
One Year (Commercial Use)
Shipping Weight
5.85 lbs
Shipping
Dimensions
12" x 8-1/2" x 6-3/8"
#SS-01293 v.01
These dimensions and specications are subject to change without notice
Ph: [phone] | Fax: [phone] | www.totousa.com | © TOTO USA
0
4
8
11
15
19
23
26
30
34
38
0 100 200 300 400 500 600
0
1
2
3
4
5
6
7
8
9
10
0 10 20 30 40 50 60 70 80 90
FLow Rate(lpm)
Pressure(kPa)
Flow R ate(gpm)
Pressure(psi)
FlowChart
Outlet 2
Outlet 1
30
ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES /
DIMENSIONS BRUTES / DIMENSÕES APROXIMADAS
Finished wall surface
φ5-1/8"[130mm]
Min: 2-26/27"[61.5mm]
Max: 3-7/16"[87.5mm]
Finished wall surface
5-1/8"[130mm]
5-1/8"[130mm]
Min: 2-26/27"[61.5mm]
Max: 3-7/16"[87.5mm]
TBV01406
TBV02401
31
ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES /
DIMENSIONS BRUTES / DIMENSÕES APROXIMADAS
Finished wall surface
φ5-1/8"[130mm]
Min: 2-26/27"[61.5mm]
Max: 3-7/16"[87.5mm]
Finished wall surface
Min: 2-26/27"[61.5mm]
Max: 3-7/16"[87.5mm]
5-1/8"[130mm]
TBV01407
TBV02403
Outlet 2
Outlet 1
Outlet 1
Outlet 2
Outlet 2
Outlet 1
Outlet 2
Outlet 1
DIMENSIONS
31
ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES /
DIMENSIONS BRUTES / DIMENSÕES APROXIMADAS
φ5-1/8"[φ130mm]
Min: 2-7/16"[61.5mm]
Max: 3-7/16"[87.5mm]
Min: 2-7/16"[61.5mm]
Max: 3-7/16"[87.5mm]
5-1/8"[130mm]
TBV01407
TBV02403
Finished wall surface
Finished wall surface
39
