User's Manual

Archer D2
AC750 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide

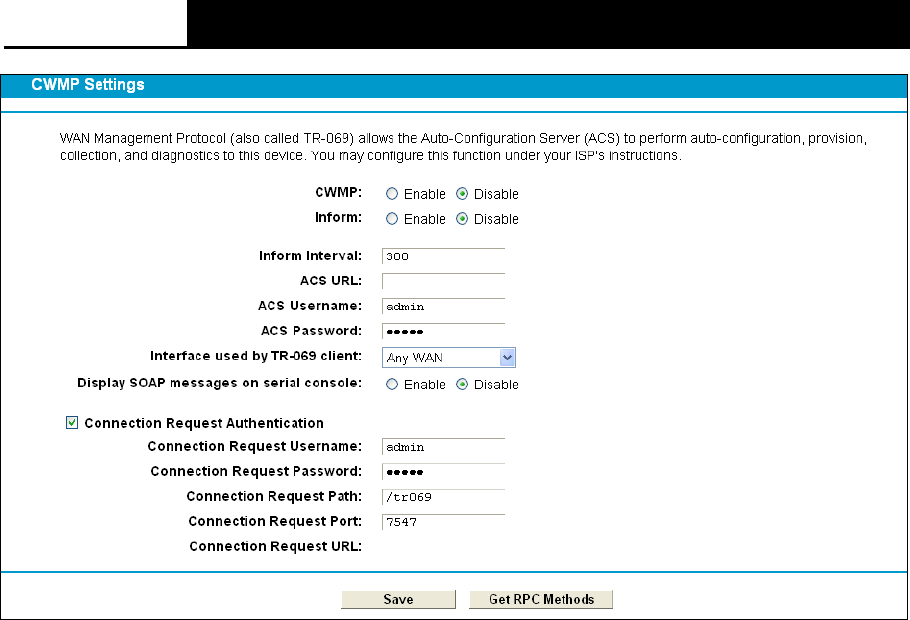

Figure 4-109
 CWMP: Select Enable to enable the CWMP function.
 Inform: If enabled, the information will be informed to ACS server periodically.
 Inform Interval: Enter the interval time here.
 ACS URL: Enter the website of ACS which is provided by your ISP.
 ACS User Name/Password: Enter the User Name and password to log in the ACS server.
 Interface used by TR-069 client: Select the interface used by the TR-069 client.
 Display SOAP messages on serial console: Enable or disable this function.
 Connection Request User Name/Password: Enter the User Name and Password for the
ACS server to log in the modem router.
 Connection Request Path: Enter the path that connects to the ACS server.
 Connection Request Port: Enter the port that connects to the ACS server.
 Connection Request URL: Enter the URL that connects to the ACS server.
4.23.5 SNMP Settings
Choose “System Tools”“SNMP Settings”, you can see the SNMP-Configuration screen as
shown below.
SNMP (Simple Network Management Protocol) has been widely applied in the computer networks
currently, which is used for ensuring the transmission of the management information between two
nodes. In this way, network administrators can easily search and modify the information on any
node on the network. Meanwhile, they can locate faults promptly and implement the fault
diagnosis, capacity planning and report generating.
