Archer D2
AC750 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
1.3 Panel Layout
1.3.1 The Front Panel

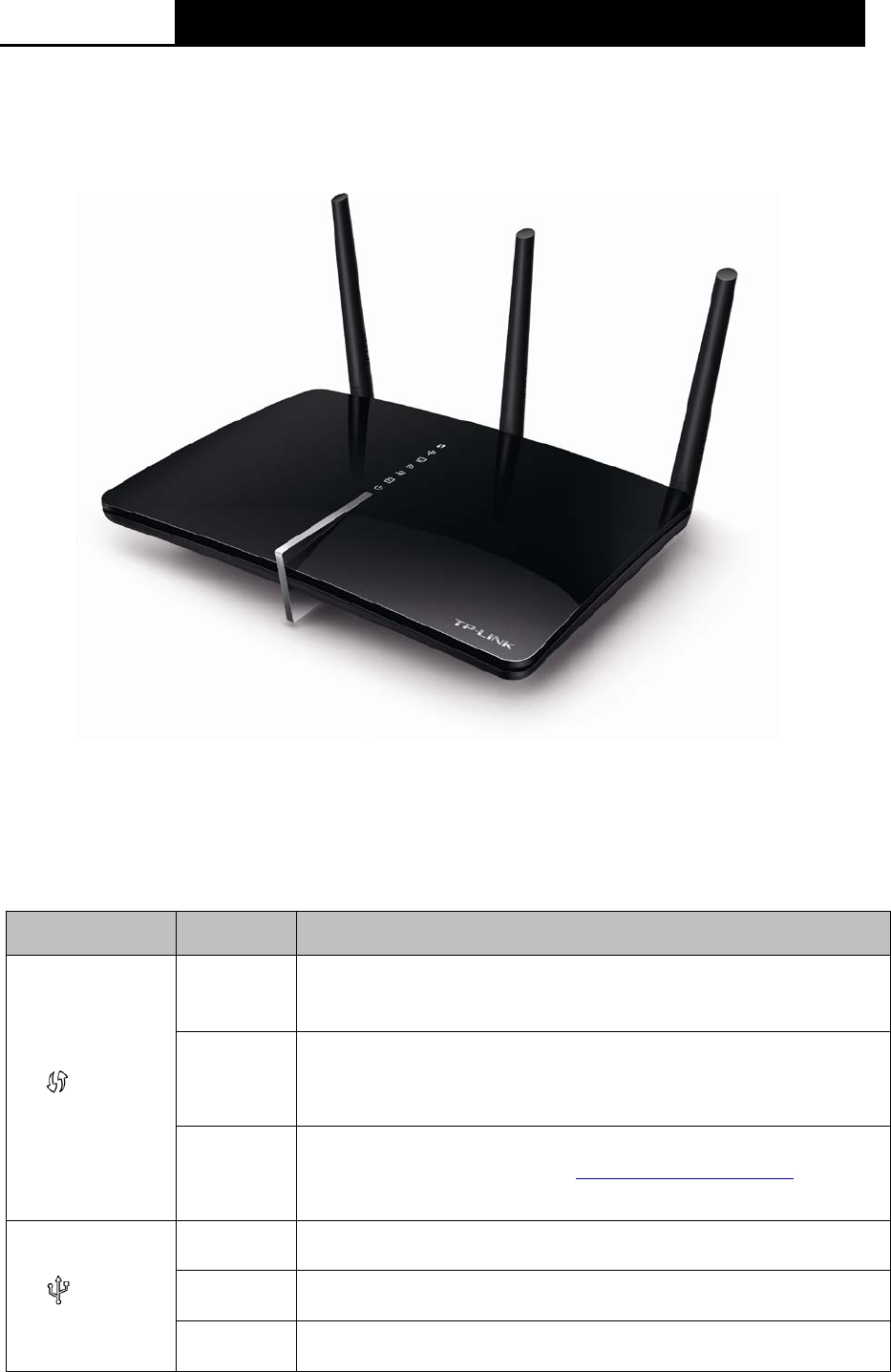

Figure 1-1
The modem router’s LEDs are located on the top panel (View from top to bottom). They indicate
the device’s working status. For details, please refer to LED Explanation.
LED Explanation:
Name Status Indication
(WPS)
On
A wireless device has been successfully added to the network by
WPS function.
Flash
WPS
handshaking is in process and will continue for about 2
minutes. Please press the WPS button on other wireless devices
that you want to add to the network while the LED is flashing.
Off
A wireless device has failed to be added to the network by WPS
function. Please refer to 4.8.2 WPS Settings
for more
information.
(USB)
On
The USB device is identified and ready to use.
Flash
The USB device is being identified.
Off
No USB device is plugged into the USB port.
