4.3 Quick Setup
Please refer to 3.2 Quick Installation Guide.
4.4 Operation Mode

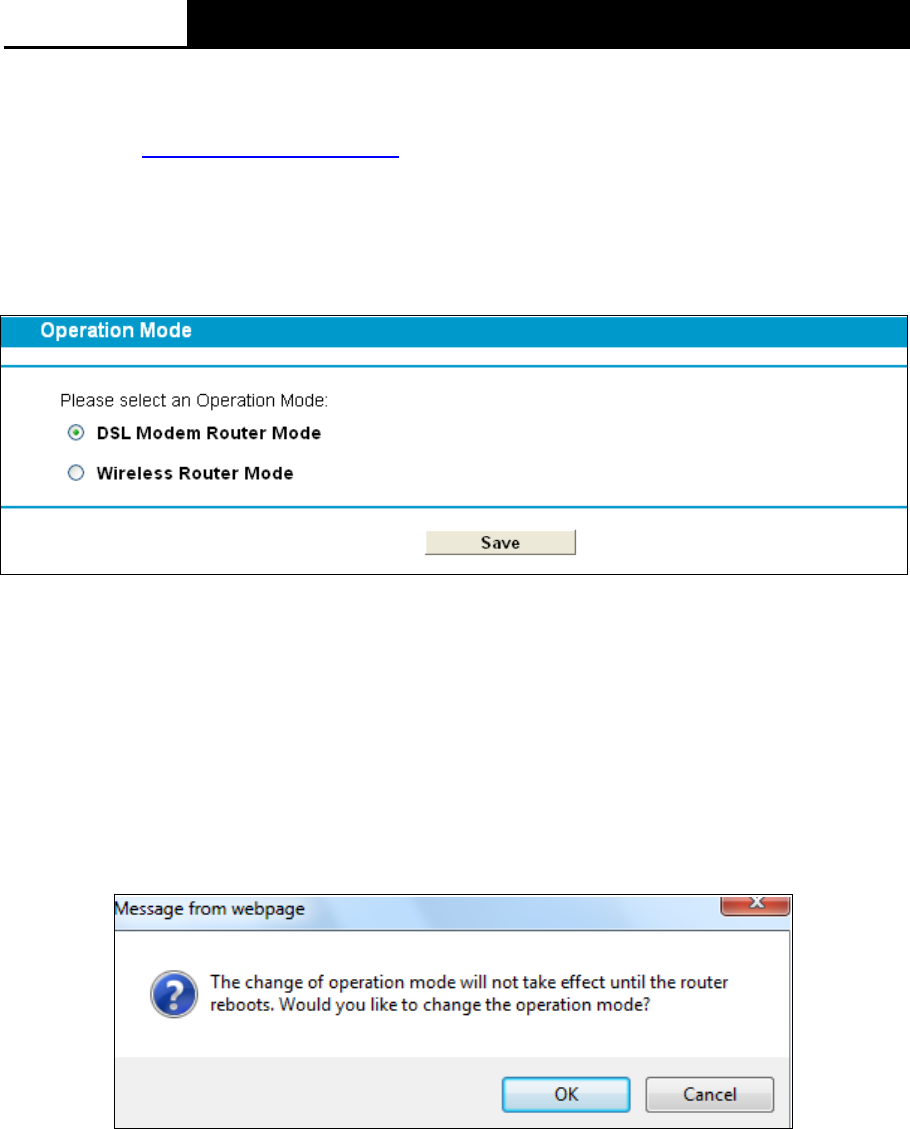

Choose “Operation Mode”, and you will see the screen as shown in Figure 4-2. Select your
desired mode and then click Save.
Figure 4-2
DSL Modem Router Mode: The device enables multi-users to share Internet via ADSL using
its ADSL port and share it wirelessly at 450Mbps wireless speeds over the crystal clear 5GHz
band and 300Mbps over the 2.4GHz band.
Wireless Router Mode: The device enables multi-users to share Internet via Ethernet WAN
(EWAN) using its interchangeable LAN4/WAN port and share it wirelessly at 450Mbps wireless
speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band.
After you click the Save button, the Note Dialog will appear. Click OK and then the modem router
will reboot. Please wait.
Note Dialog
4.5 Network
Choose “Network”, there are many submenus under the main menu. Click any one of them, and
you will be able to configure the corresponding function.
