Chapter 1
Get to Know About Your Modem Router
1. 3. Panel Layout
1. 3. 1. Top View

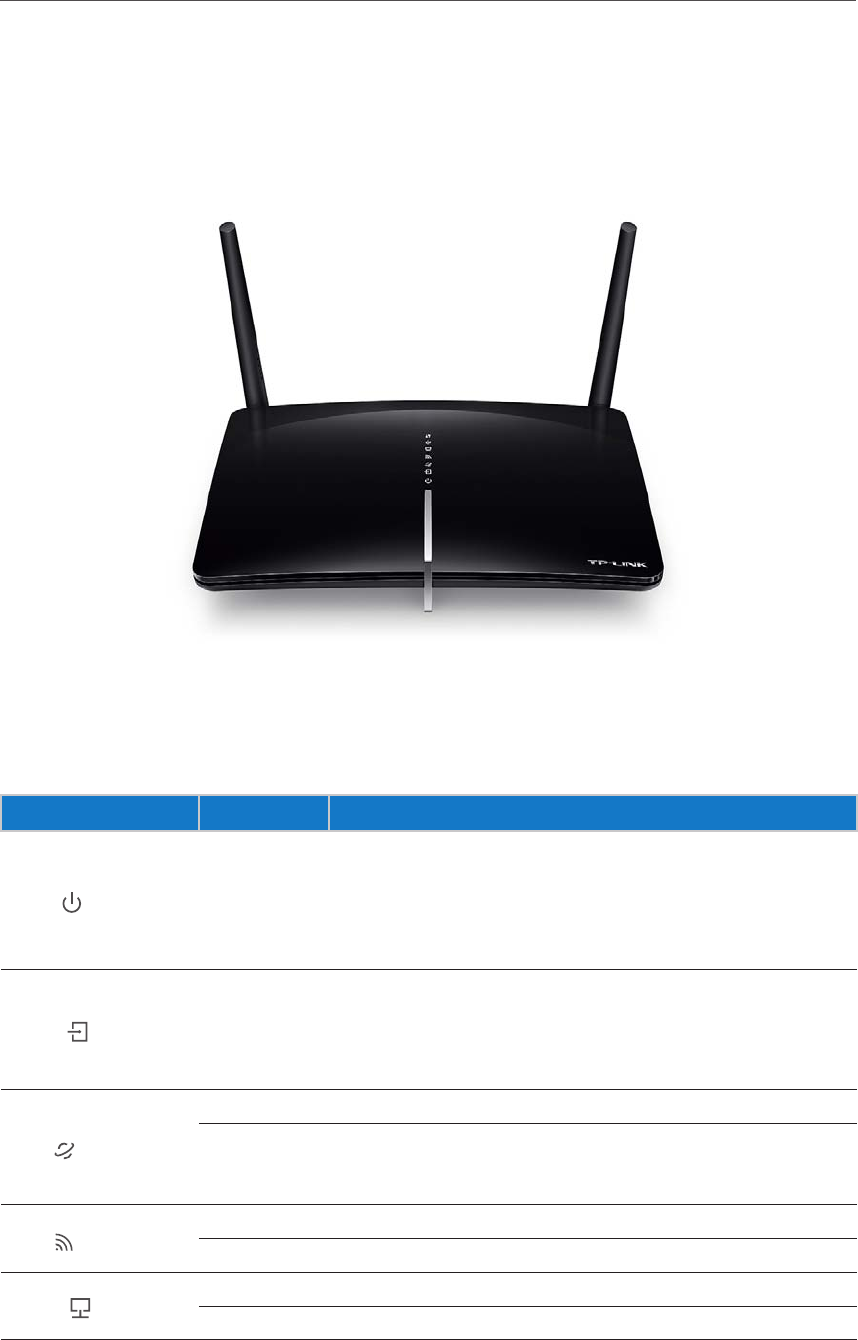

The modem router’s LEDs are located on the top panel (View from top to bottom). You
can check the modem router’s working status by following the LED Explanation table.
LED Explanation
Name Status
Indication
Power
On System initialization complete.
Flashing
System initializing or firmware upgrading is in process. Do not
disconnect or power off the modem router.
Off
Power is off. Please ensure that the power adapter is connected
correctly.
ADSL
On ADSL line is synchronized and ready to use.
Flashing The ADSL negotiation is in progress.
Off
ADSL synchronization failed. Please refer to Note 1 for
troubleshooting.
Internet
On The network is available with a successful Internet connection.
Off
There is no successful Internet connection or the modem
router is operating in Bridge mode. Please refer to Note 2 for
troubleshooting.
Wireless
On The wireless 2.4GHz or 5GHz band is enabled.
Off The wireless function is disabled.
LAN
On At least one LAN port is connected.
Off No LAN port is connected.
