Get to Know About Your Modem Router
LED Explanation
Name Status
Indication
USB
On The USB device is identified and ready to use.
Flashing The USB device is being identified.
Off No USB device is plugged into the USB port.
WPS
On
A wireless device has been successfully added to the network
by WPS function.
Flashing
WPS handshaking is in process and will continue for about 2
minutes. Please press the WPS button on other wireless devices
that you want to add to the network while the LED is flashing.
Off
A wireless device has failed to be added to the network by WPS
function.
Note:
1. If the ADSL LED is off, please check your Internet connection first. Refer to Connect Your Modem Router for more
information about how to make Internet connection correctly. If you have already made a right connection,
please contact your ISP to make sure your Internet service is available now.
2. If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off, please refer to Note 1. If your
ADSL LED is ON, please check your Internet configuration. You may need to check this part of information with
your ISP and make sure everything have been input correctly.

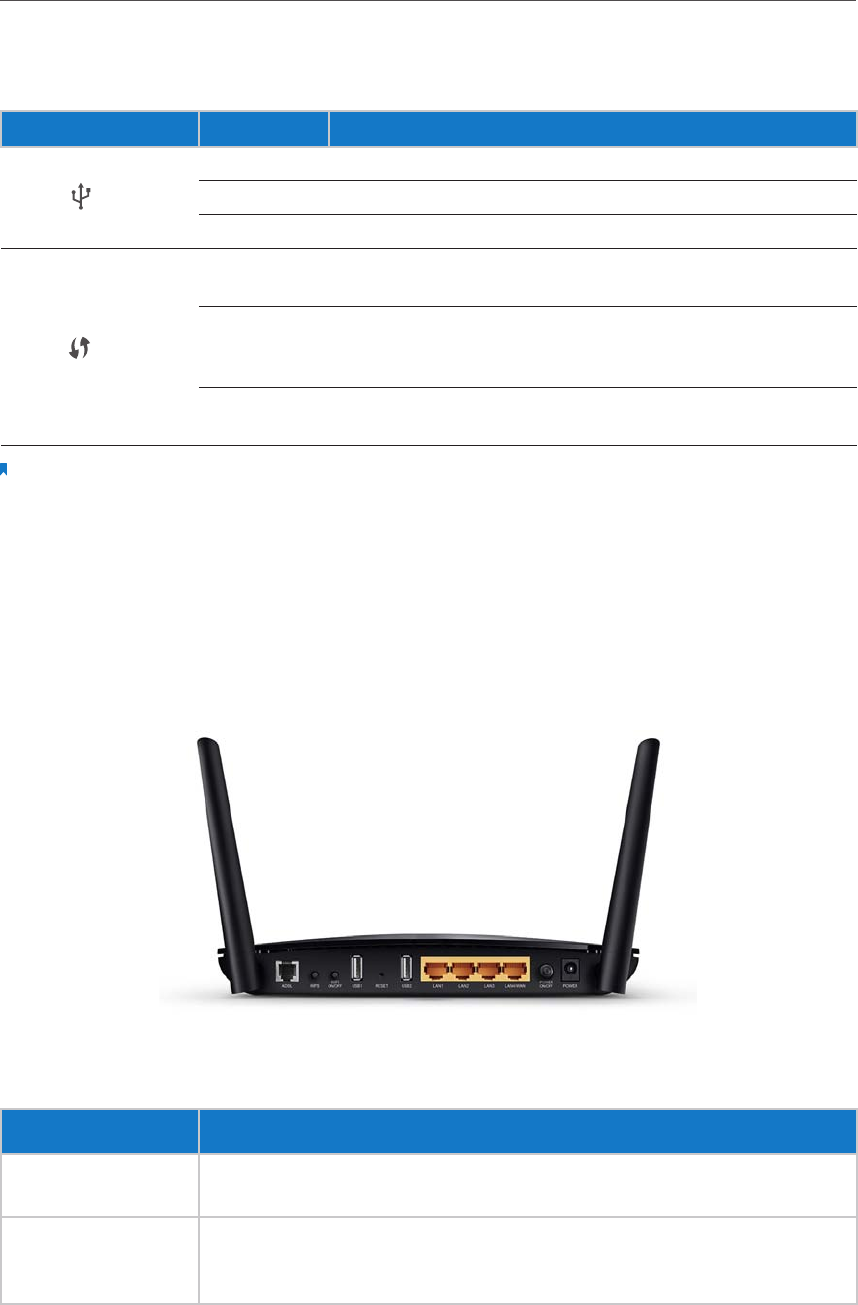

1. 3. 2. The Back Panel
The modem router’s back panel shows the antennas, connection ports and buttons.
Refer to the following for detailed instructions.
Item
Description
Antennas
Used for wireless operation and data transmit. Upright them for the best Wi-Fi
performance.
ADSL
For connecting the modem router to the Internet. Connect the port to the
splitter or directly connect the port to the phone jack via a phone cable. For
details, please refer to Connect the Modem Router.
