User Guide

No Authentication
：Users are required to finish only two steps: agree with the user
protocol and click the Login button.
Local Password
：Users are required to enter the preset password, which are saved in
the EAP.
External RADIUS Server
： Users are required to enter the preset user name and
password, which are saved in the database of the RADIUS server. The RADIUS server
acts as the authentication server, which allows you to set different usernames and
passwords for different users.
Refer to the following content to configure Portal based on actual network situations.
 No Authentication

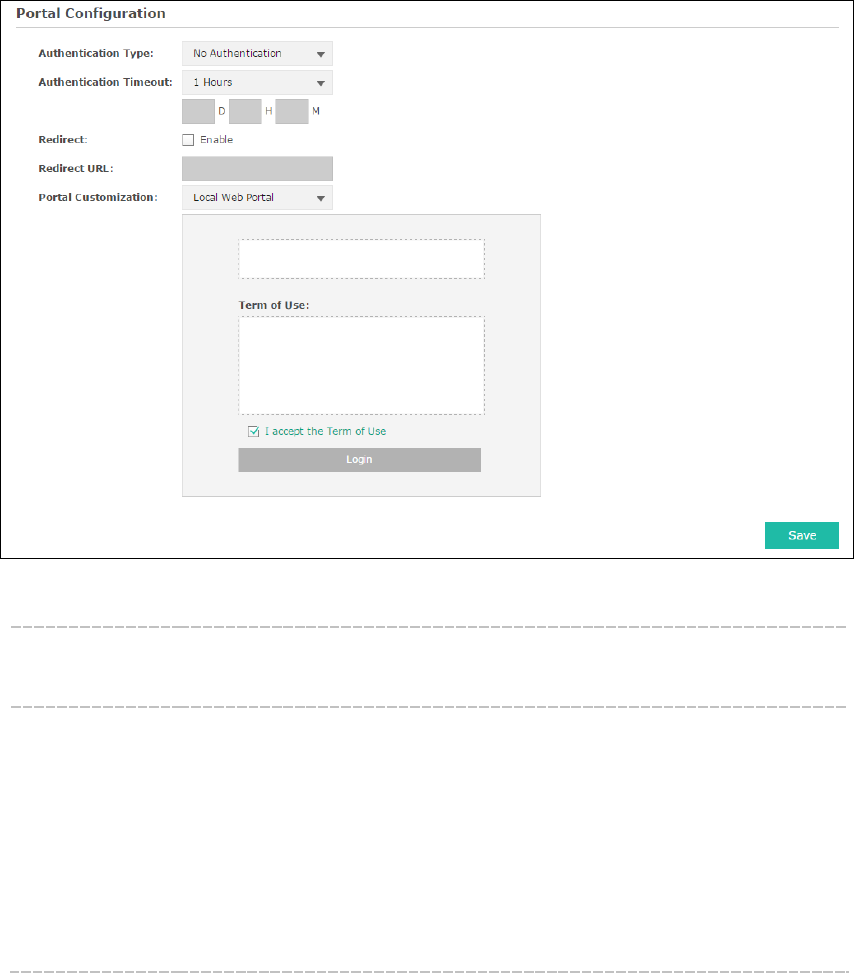

Figure 5-11 Portal Configuration_No Authentication
Authentication
Type:
Select No Authentication.
Authentication
Timeout:
After successful verification, an authentication session is established.
Authentication Timeout decides the active time of the session. Within
the active time, the device keeps the authentication session open with
the associated client. To reopen the session, the client needs to log in
the web authentication page and enter the user name and password
again once authentication timeout is reached.
By default, authentication timeout is one hour. Select Custom from the
drop-down list to customize the parameter.
15
