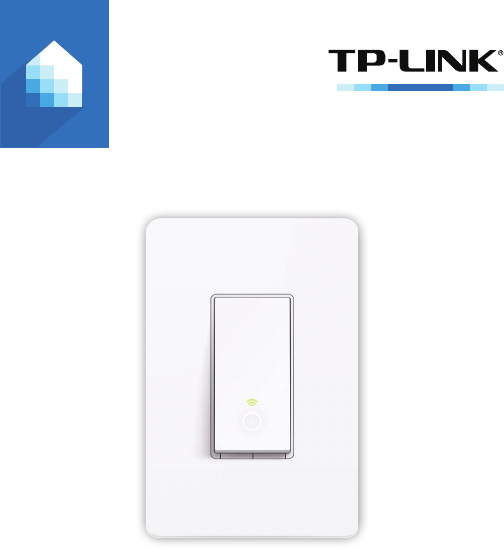

User’s Manual HS200 Smart Wi-Fi Light Switch 1910011729 REV 1.0.
Copyright & Trademarks Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Apple and App Store are trademarks of Apple Inc.
Contents 5 7 7 10 18 21 24 10 11 13 14 15 17 18 19 21 22 23 24 Introduction Product Requirements Smart Wi-Fi Light Switch Installation Using Kasa with Smart Switch Kasa Account Customizing Smart Switches Scheduling Creating Scenes Away Mode Energy Monitoring Maintaining the Smart Switches Firmware Update Resetting Troubleshooting Frequently Asked Questions Usage Tips Support Specifications Limited Warranty
User’s manual Smart Wi-Fi Light Switch Introduction TP-LINK Smart Wi-Fi Light Switch is a standard, single-pole, wall light switch that can be controlled via your iOS or Android devices. Along with the TP-LINK Kasa mobile app, you can follow an intuitive wiring instructions provided to replace your standard inwall switch, connect the Smart Switch to your home network, then control your lights and create custom lighting automations from anywhere, at anytime with an Internet connection.
Smart Wi-Fi Light Switch User’s manual Blinking Amber and Green: AppConfig mode initiated. Green: Successfully connected to the Wi-Fi network. Blinking Amber: Resetting or during firmware update. Red: No Wi-Fi connection. White: Lit up when the light is switched OFF to show the Smart Switch location in the dark. RESTART RESET Press to reboot the Smart Switch. Press and hold (about 5 seconds) until the Wi-Fi status LED blinks amber and green alternately to initiate App-Config mode.
User’s manual Smart Wi-Fi Light Switch Product Requirements • • • In-wall installation with hardwired connections. A smartphone or tablet running iOS 8 and up or Android 4.0 and up. A Wi-Fi connection (supports 802.11b/g/n standard). Smart Wi-Fi Light Switch Installation Important Safety Information Before installing, servicing, or removing the Smart Switch, read and follow all safety precautions, including the following: • WARNING: RISK OF ELECTRIC SHOCK OR FIRE.
Smart Wi-Fi Light Switch User’s manual a qualified electrician. • The Smart Switch is an indoor single-pole switch that requires a neutral connection. • Do not install the Smart Switch with wet hands or when standing on wet or damp surfaces. 1 Download TP-LINK Kasa from App Store or Google Play. OR Scan QR code 2 Connect mobile device to your 2.4GHz Wi-Fi network. Note: The Smart Switch only supports 2.4GHz networks. www.tp-link.
Smart Wi-Fi Light Switch User’s manual 3 Lauch Kasa and follow the wiring steps provided, then connect the Smart Switch to your home network. Sketch 9:41 AM 100% Welcome home Sketch 9:41 AM 100% Sketch 9:41 AM 100% Before we start Start the con guration Have you already wired up your Smart Switch? Locate the reset button below the switch on the left. Press and hold for 5 seconds until the Wi-Fi light blinks amber and green. Log in to access your devices.
User’s manual Smart Wi-Fi Light Switch Using Kasa with Smart Switch Kasa Account While you don’t have to have a Kasa account to use TPLINK Smart Home devices, signing up for an account provides added functionality such as: • Synchronization of settings and configurations to all your mobile devices. • Ability to control and configure the devices from outside your home. • Use of third-party services and products such as Amazon Echo. Devices can only be associated with one Kasa account.
User’s manual Smart Wi-Fi Light Switch Kasa Settings Kasa Settings allows you to set your global preferences such as: • Remote Control to control your Smart Home devices outside of your home. You need to sign in to your Kasa account first to turn on this function. • Location and Time to set the location and time of where the Smart Home devices are located so that the Away Mode and Schedules can run on time.
Smart Wi-Fi Light Switch User’s manual 9:41 PM 100% Device Settings DEVICE CONTROLS Remote Control Device Name Disabled Front Porch Switch Device Icon DEVICE TIME Time Zone San Francisco Location Device Time Sept 15, 2015 12:00 PM DEVICE INFO Model HS220 MAC Address 00:01:02:03:04:05 Hardware Version 1.0.0 Firmware Version 1.0.0 Delete Device 1. On the Devices screen, tap on the row of the Smart Switch to go to its controls. 2. Tap the (Settings) icon at the top-right corner. 3.
Smart Wi-Fi Light Switch User’s manual Scheduling You can set up your lights to illuminate around your home at specific times on specific days of the week. 9:41 PM 100% 9:41 PM Schedules 100% Create Event At 4 5 6 7 8 No events yet! Add Events by tapping the button on the top right. Your saved event will be listed here. 5 5 0 0 0 : 8 9 0 1 2 am pm Turn my Smart Plug ON Repeating every S M T W CANCEL 1.
User’s manual Smart Wi-Fi Light Switch You can create as many events as you like and edit them at any time from the Schedule screen. Creating Scenes Take full advantage of your TP-LINK Smart Home devices in your home with “Scenes”. A scene is a preset group of Smart Devices (such as Smart Plugs and Smart Switches) that can be customized and controlled simultaneously at the touch of a button from your smartphone or tablet to easily set your mood or fit any special occasion.
Smart Wi-Fi Light Switch User’s manual 9:41 PM 100% Scenes Scenes let you set the mood of your home in one tap. Good Morning Good Night Get ready for the day by turning on your devices Turn everything off before bedtime 1. Movie Night Custom Dim the lights for showtime Create your own scene Scenes Devices On the main Home screen, tap the to switch to the Scenes view. (Scenes) tab 2.
Smart Wi-Fi Light Switch User’s manual 9:41 PM Set Scene 100% Next BULBS Party Bulb 60% Bedroom Lamp SWITCHES Main Kitchen Lights ON Side Kitchen Lights OFF PLUGS ! Christmas Gnome PREVIEW Note that you must have at least one Smart Device in order to create a scene. Away Mode Away Mode allows you to automate your Smart Switches in combination with other Smart Home products to respond to your specific schedules.
Smart Wi-Fi Light Switch User’s manual 9:41 PM 100% 9:41 PM Away Mode 100% Select Devices How about picking one light from each room? BULBS When you’re Away, your devices will turn on and off to simulate that someone is home. Party Bulb Schedules 2 Devices 3 Garage Light Living Room Bedroom Lamp PLUGS ! Christmas Gnome SAVE 1. Tap the Mode. (navigation drawer) and then Away 2. Tap Select Devices to select your Smart Home devices, and then tap Save. 3.
Smart Wi-Fi Light Switch User’s manual 5. Tap Save. You can always toggle Away Mode on and off in the sidebar by tapping on the translucent button under the Kasa logo. Energy Monitoring With energy usage monitoring capability, you get a realtime energy consumption report (average daily, weekly, and monthly) on your Smart Switches. 9:41 PM 100% Energy Usage TODAY Current Power 2.80 w Total Consumption 3.10 kWh PAST 7 DAYS Daily Average 5.00 kWh Total Consumption 35.
Smart Wi-Fi Light Switch User’s manual 1. On the Devices screen, tap on the row of the Smart Switch to go to its controls. 2. Tap the www.tp-link.com (Usage).
Smart Wi-Fi Light Switch User’s manual Maintaining the Smart Switches Firmware Update To keep the Smart Switches happy and up-to-date with all the latest improvement and fixes, we recommend that you update the firmware when updates are available. 9:41 PM 100% 9:41 PM 100% Firmware Update Updating firmware New Updates Available Please do not unplug your devices during We found available firmware updates for your reachable devices. the update. Smart Plugs Latest Version: 1.2.
User’s manual Smart Wi-Fi Light Switch Remember: Only the Smart Switches that are currently reachable and have an available update will be shown in the Firmware Update screen. It is important to leave the Kasa app running while it finishes updating the Smart Switches. Try not to minimize the app, close the app, or interrupt the update to prevent problems.
User’s manual Smart Wi-Fi Light Switch The RESET button located underneath the Smart Switch has two functions: • Press and hold (about 5 seconds) until the Wi-Fi status LED blinks amber and green alternately to initiate App-Config mode. • Press and hold (about 10 seconds) until the Wi-Fi status LED blinks green rapidly to reset the Smart Switch to factory defaults. Note that factory setting the Smart Switch will erase all of your custom settings, and you’ll have to set it up again. www.tp-link.
User’s manual Smart Wi-Fi Light Switch Troubleshooting Frequently Asked Questions 1. What should I do when I can’t turn the Smart Switch on/off manually? If the Smart Switch doesn’t respond when pressing the physical switch: • Make sure that you restore power to the Smart Switch at the circuit breaker. • Make sure the Smart Switch is wired correctly. Please consult with a qualified electrician. 2.
User’s manual Smart Wi-Fi Light Switch underneath the switch. • Factory reset the Smart Switch by pressing and holding the RESET button. You’ll need to reconfigure the Smart Switch again. 3. How far can I be and still able to control my lights via the Smart Switch? You can be anywhere in the world and still able to control your lights as long as you have an active Internet connection and Remote Control enabled. 4. Can I install two or more Smart Switches to control one light fixture? No.
User’s manual Smart Wi-Fi Light Switch Support Should you encounter any issues with the Smart Wi-Fi Light Switch, please visit our support page at www.tp-link.com/support for web support and troubleshooting information. www.tp-link.
User’s manual Smart Wi-Fi Light Switch Specifications Limited Warranty The Smart Wi-Fi Light Switch is warranted to the original purchaser to be free from defects in material and workmanship under normal consumer use for a period of one (1) year from the date of retail purchase.
User’s manual Smart Wi-Fi Light Switch the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna.
User’s manual Smart Wi-Fi Light Switch with any other antenna or transmitter.” CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. RF Exposure Information This device meets the EU requirements (1999/5/EC Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
User’s manual Smart Wi-Fi Light Switch This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d’exposition aux radiations Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
User’s manual Smart Wi-Fi Light Switch 開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位 置中。 • 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項 工作。 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.
Smart Wi-Fi Light Switch User’s manual AC voltage RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment. www.tp-link.
