1.4.2 The Rear Panel

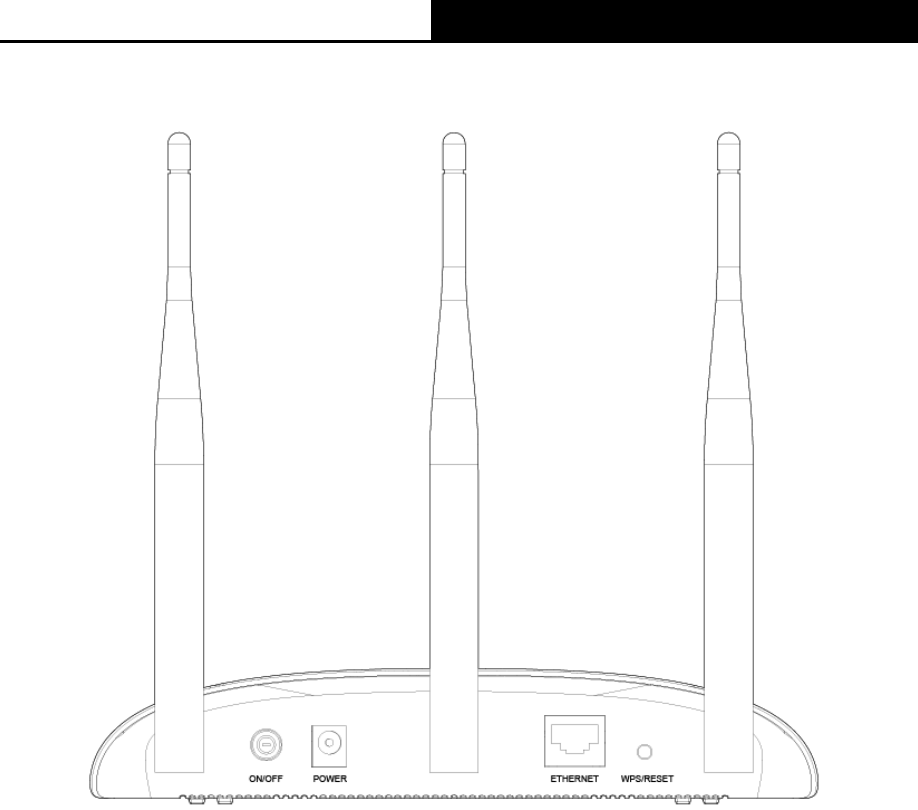

Figure 1-2
Viewed from left to right, the following parts are located on the rear panel of AP device.
ON/OFF: The switch for the power.
POWER: The power port connects to the power adapter provided with the AP device.
Ethernet: One LAN 10/100Mbps RJ45 port connects to a network device, such as a switch or a
router.
WPS/RESET: This button is used for both WPS and Reset function. To use the WPS function,
press it for less than five seconds; to use the RESET function, press it for more than five seconds.
Note: For TL-WA701ND/TL-WA801ND, there is one WPS button and one RESET button.
 Used as RESET button:
There are two ways to reset to the device's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
device's Web-based Utility.
2) Use the WPS/RESET button: With the device powered on, press and hold the
WPS/RESET button (more than 5 seconds) until the SYS LED becomes quick-flash from
slow-flash. Then release the button and wait the Access Point to reboot to its factory
default settings.
