Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successfully logging in, the Quick Setup page will display. Click Next to continue.

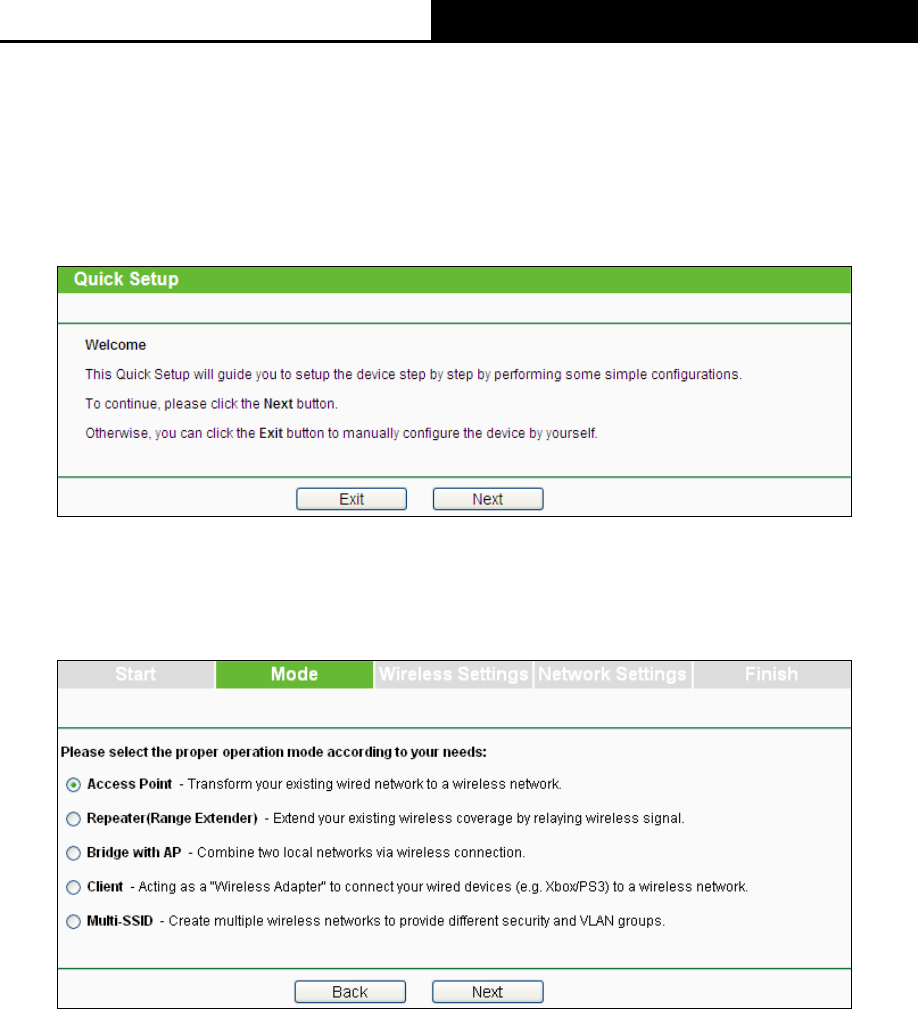

Figure 3-3 Quick Setup
3. The Quick Setup Start page will display. Click Next to continue.
4. The Operation Mode page will appear then, shown in Figure 3-4. The TL-WA901ND
supports up to five operation modes.
Figure 3-4 Operation Mode
 In Access Point mode, the product will act as a wireless central hub for your wireless
LAN clients, giving a wireless extension for your current wired network.
 In Repeater(Range Extender) mode, the product can extend the coverage of your main
Router/AP.
 In Bridge with AP mode, the product can wirelessly connect two or more remote LANs
together.
 In Client mode, the product will act as a wireless adapter to connect your wired devices
(e.g. IPTV Set-top-box, Smart TVs, Game Consoles, DVD and Blu-ray Players, etc.) to a
wireless network.
 In Multi-SSID mode, the product can be assigned up to four SSIDs to work with your
VLAN.
5. Select the operation mode based on your need.
