 Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Click the Survey button to detect the SSIDs in the local area.

Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
5) Universal Repeater: In Universal Repeater mode, the AP with WDS disabled will relay data
to an associated root AP. AP function is enabled meanwhile. The wireless repeater relays
signal between its stations and the root AP for greater wireless range.

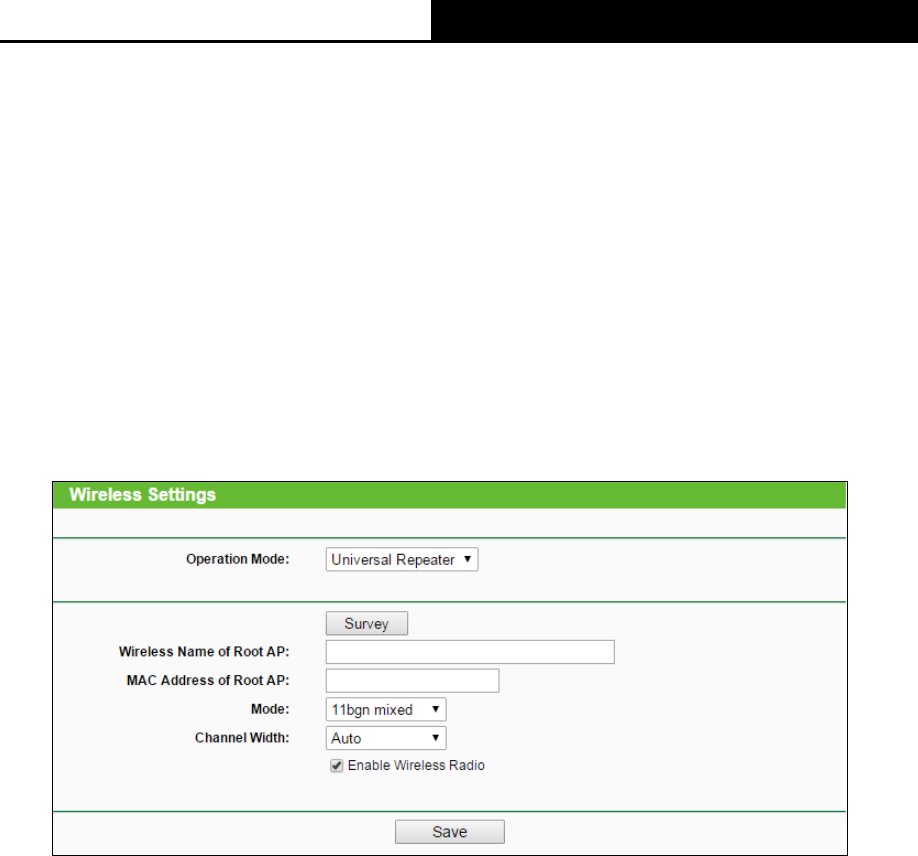

Figure 4-16 Wireless Settings in Repeater mode
 Wireless Name of Root AP - If you select the radio button before Wireless Name of Root
AP, the AP client will connect to the AP according to SSID. Enter the SSID of AP that you
want to access.
 MAC Address of Root AP - If you select the radio button before MAC Address of Root AP,
the AP client will connect to the AP according MAC address. Enter the MAC address of AP
that you want to access.
 Mode - Select the desired wireless mode. The options are:
• 11b only - Only 802.11b wireless stations can connect to the device.
• 11g only - Only 802.11g wireless stations can connect to the device.
• 11n only - Only 802.11n wireless stations can connect to the device.
• 11bg mixed - Both 802.11b and 802.11g wireless stations can connect to the device.
• 11bgn mixed - All 802.11b, 802.11g and 802.11n wireless stations can connect to the
device.
 Channel Width - Determines the channel width to be used. It is unnecessary to change the
default value unless required.
 Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
