Click the Survey button to detect the SSIDs in the local area.

Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.
6) Bridge with AP: This mode can bridge the AP and up to 4 APs also in bridge mode to
connect two or more wired LANs.

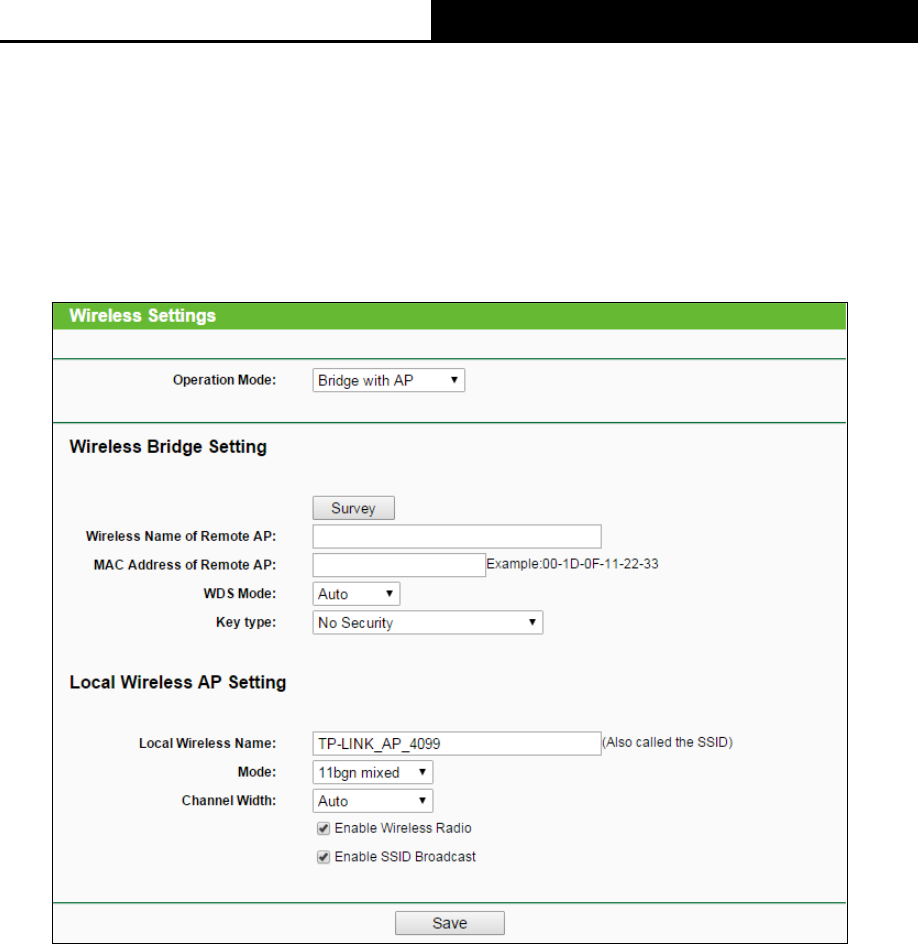

Figure 4-17 Wireless Settings in Bridge with AP mode
Wireless Bridge Settting
 Wireless Name of Remote AP - If you select the radio button before Wireless Name of
Remote AP, the AP client will connect to the AP according to SSID. Enter the SSID of AP
that you want to access.
 MAC Address of Remote AP - If you select the radio button before MAC Address of
Remote AP, the AP client will connect to the AP according MAC address. Enter the MAC
address of AP that you want to access.
Click the Survey button to detect the SSIDs in the local area.
 Key type - This option should be chosen according to the AP's security configuration. It is
recommended that the security type is the same as your AP's security type.
 Password - If the Remote AP that your device is going to connect needs password, you
need to fill the password in this blank.
Local Wireless AP Setting
 Local Wireless Name - Name for the AP.
