TL-WA901ND 300Mbps Wireless N Access Point User Guide
4. Configure the IP address manually.
1) Select Use the following IP address.
2) Enter 192.168.1.* (* is any integer between 1 and 253) into the IP address filed, and
255.255.255.0 into the Subnet mask filed.
3) Click OK to keep your settings.

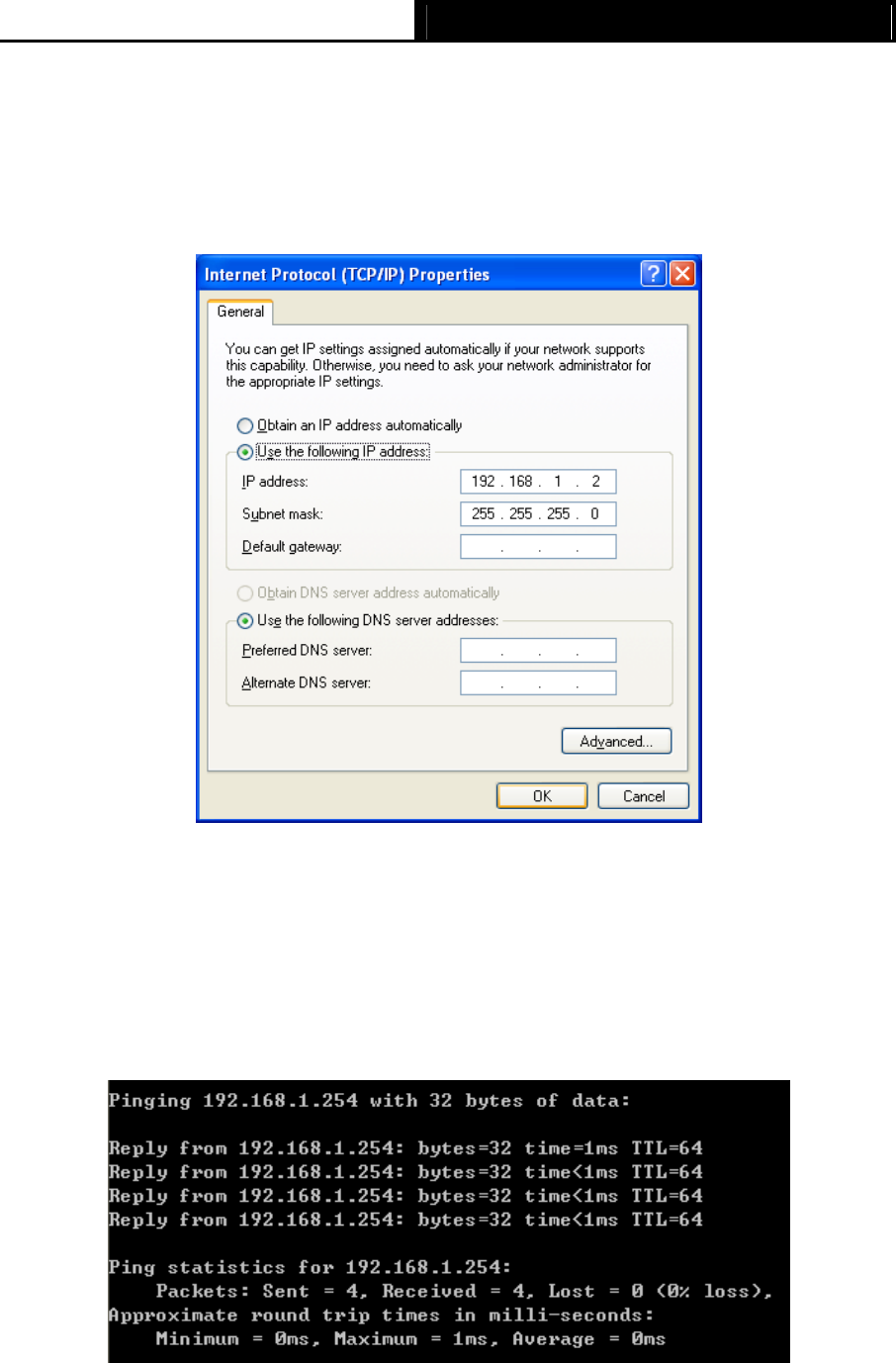

Figure 3-4
5. Verify the network connection between your PC and the AP via the Ping command. The
following example is in Windows XP Operating System.
1) Click Start > Run tab. Enter cmd in the filed and click OK.
2) Type ping 192.168.1.254 on the screen that displays and then press Enter.
If the result displayed is similar to that shown in Figure 3-5 below, the connection
between your PC and the AP has been successfully established.
Figure 3-5
