TL-WA901ND 300Mbps Wireless N Access Point User Guide
¾ Max Tx Rate - Specifies the maximum transmit rate of the device through this field.
¾ Enable Wireless Radio - Select or deselect this check box to allow or deny wireless stations
to access the device.
Click the Search button to detect the SSIDs in the local area.
)
Note:
To apply any settings you have altered on the page, please click the Save button, and then you
will be reminded to reboot the device.

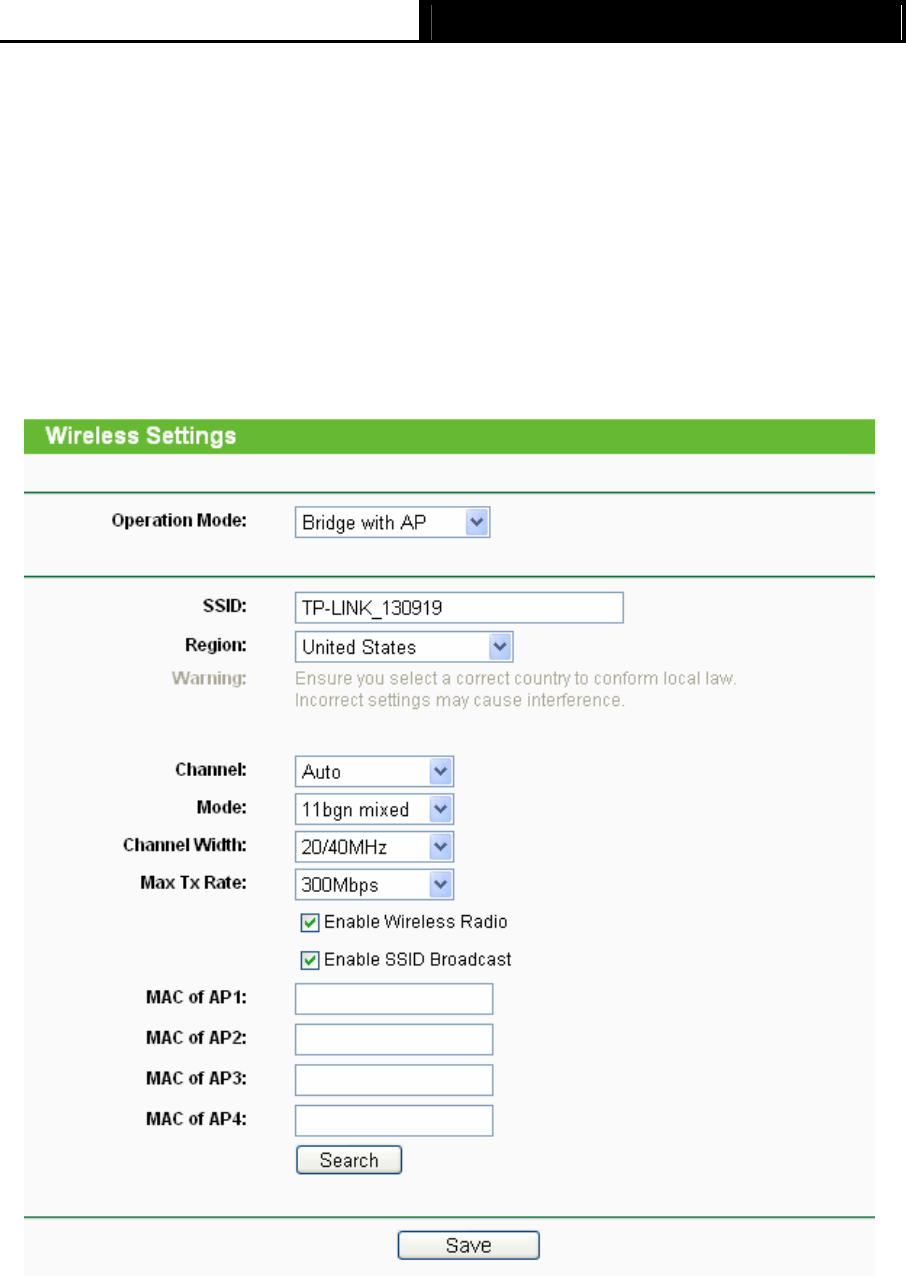

6) Bridge with AP: This mode can bridge the AP and up to 4 APs also in bridge mode to
connect two or more wired LANs.
Figure 4-13 Wireless Settings in Repeater mode
¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32
characters and make sure all wireless points in the wireless network with the same SSID. The
default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last unique six characters of each
device’s MAC address). This value is case-sensitive. For example, TEST is NOT the same as
test.
