TL-WR810N
300Mbps Wireless N Mini Router
- 128 -
5.10 System Tools

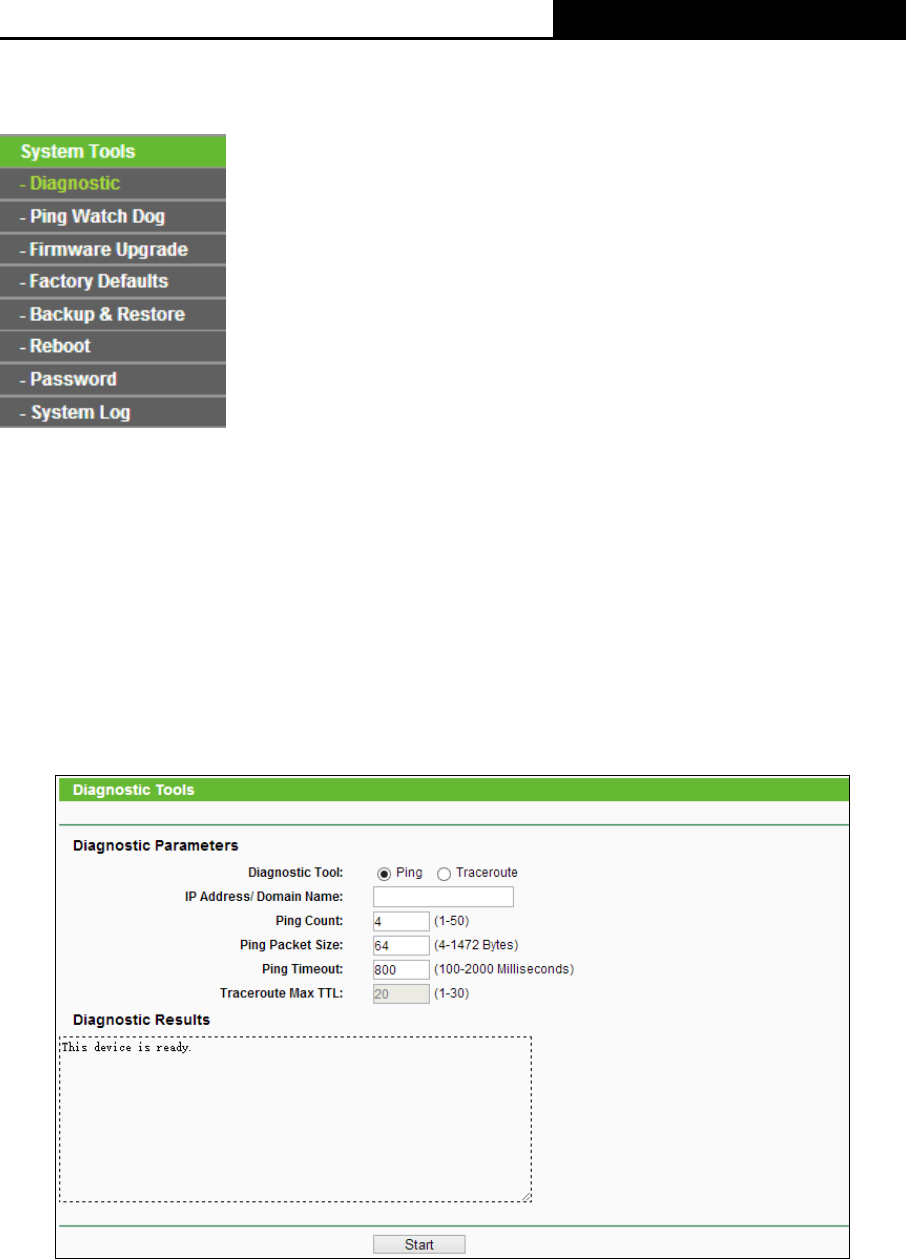

Figure 5-32 The System Tools menu
Choose menu “System Tools”, and then you can see the submenus under the main menu:
Diagnostic, Ping Watch Dog, Firmware Upgrade, Factory Defaults, Backup & Restore,
Reboot, Password and System Log. Click any of them, and you will be able to configure the
corresponding function. The detailed explanations for each submenu are provided below.
5.10.1 Diagnostic
Choose menu “System Tools
→
Diagnostic”, and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.
Figure 5-33 Diagnostic Tools
Diagnostic Tool - Check the radio button to select one diagnostic tool.
• Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
a given host or gateway.
