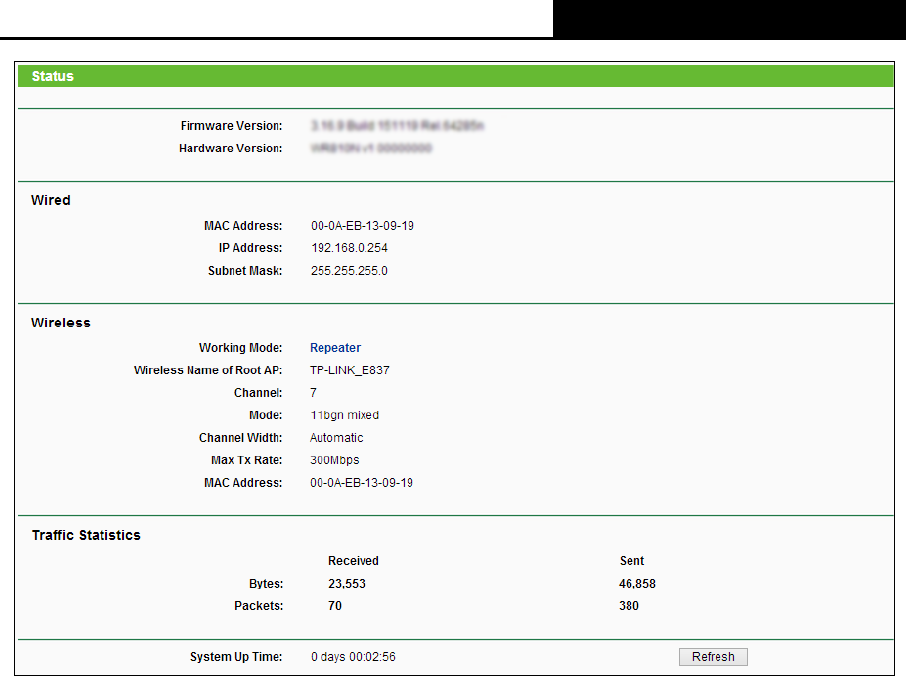

Figure 6-2 Status
Firmware Version - The version information of the Router’s firmware.
Hardware Version - The version information of the Router’s hardware.
Wired - This field displays the current settings or information for the LAN, you can configure
them in the Network > LAN page.
• MAC address - The physical address of the Router, as seen from the LAN.
• IP address - The LAN IP address of the Router.
• Subnet Mask - The subnet mask associated with LAN IP address.
Wireless - This field displays basic information or status for wireless function, you can
configure them in the Wireless > Wireless Settings page.
• Working Mode - The current wireless working mode in use.
• Wireless Name of Root AP - The SSID of Root AP.
• Channel - The current wireless channel in use.
• Mode - The current wireless mode which the Router works on.
• Channel Width - The current wireless channel width in use.
• MAC Address - The physical address of the Router, as seen from the WLAN.
Traffic Statistics - The Router’s traffic statistics.
